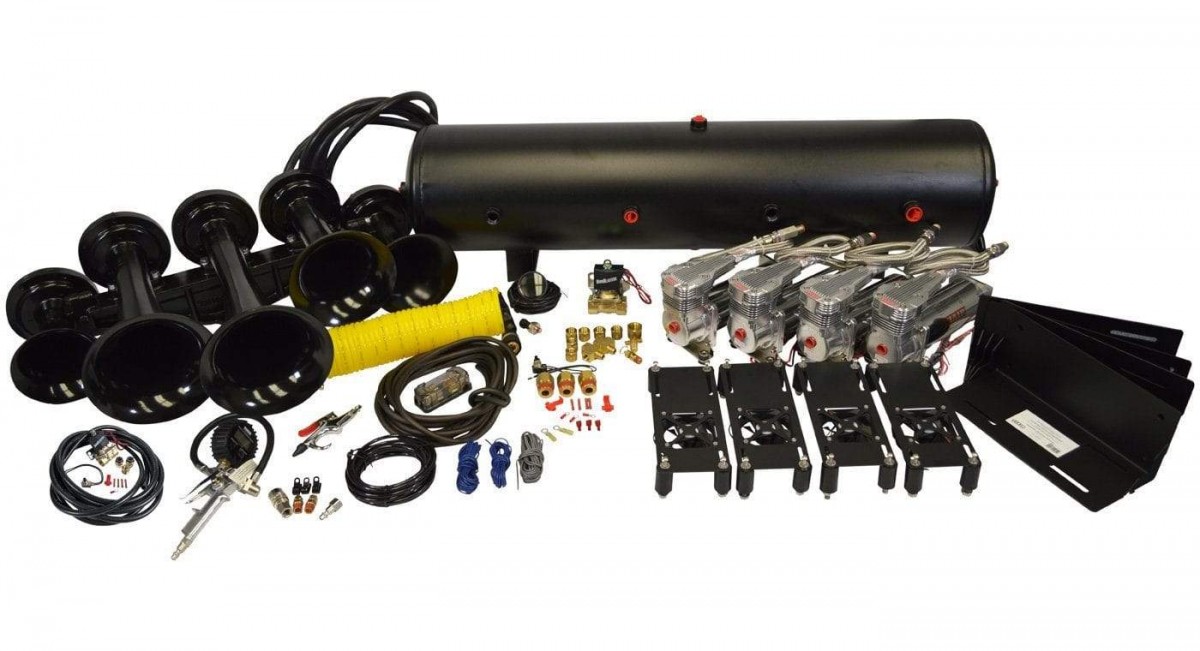

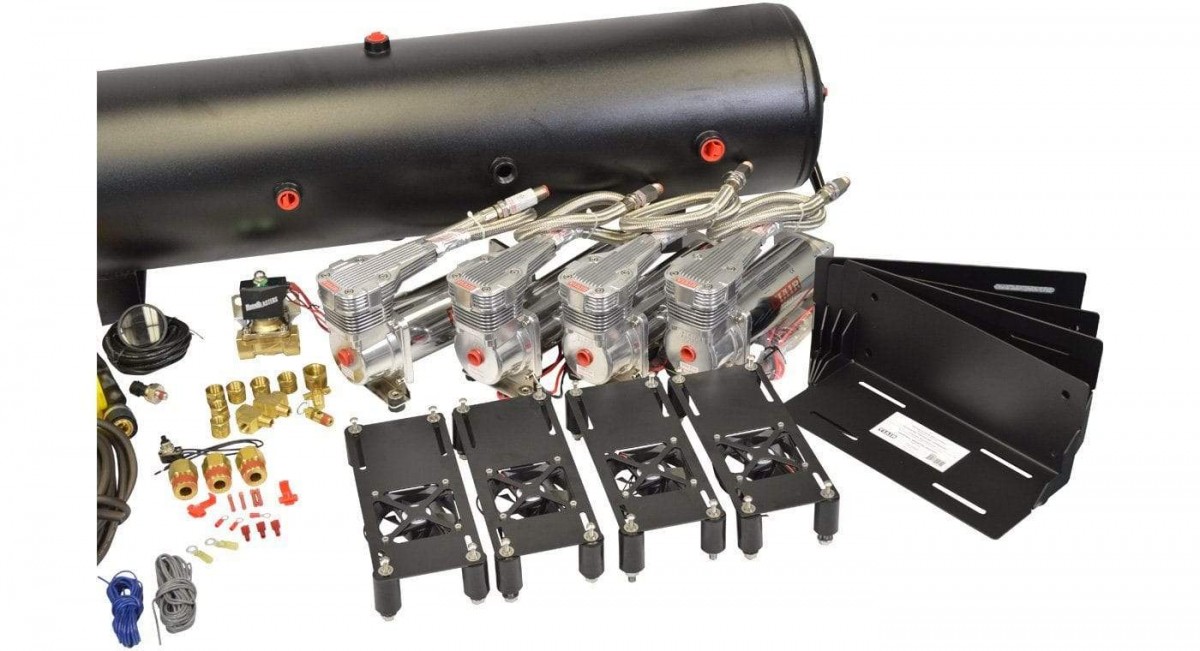

So you want the most ridiculously stacked kit HornBlasters has to offer? Look no further! We asked people, "if you could build a kit any way you want, the sky's the limit, how would you build it?" What resulted is our Ultimate 12485 kit.
Here are the details:

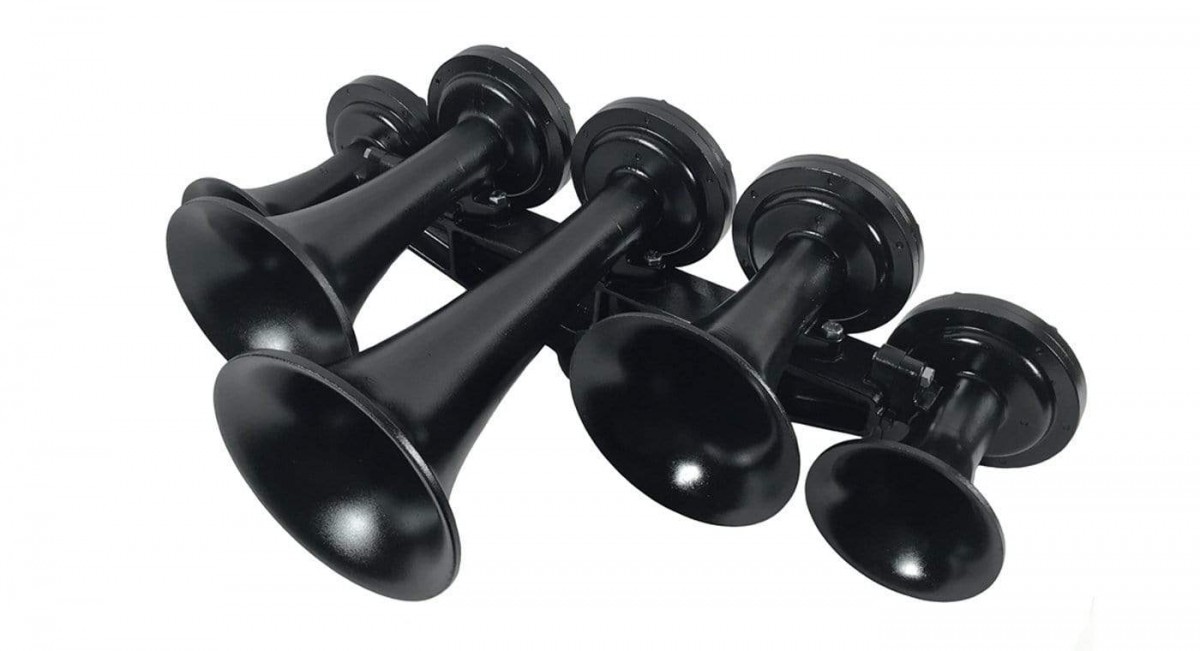

We start with the absolute loudest train horn available. The Nathan AirChime K5LA. There is simply no substitute for the sound that comes out of this horn. These massive horns are made in the USA from die-cast aluminum with stainless steel diaphragms. They're built to withstand years of abuse from the elements, and the volume is something you will not only hear but feel as well. Hands down, the king of train horns.

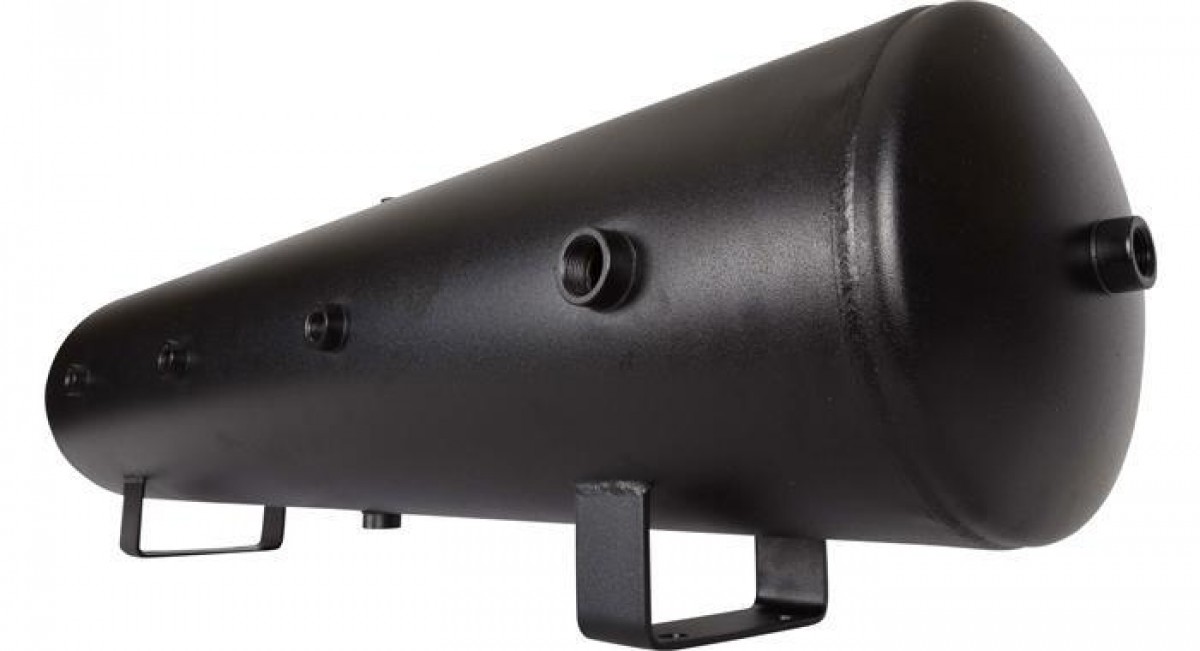

Next up, we give you one of the biggest air tanks we carry, our 12 gallon 8 port air tank. This thing is HUGE! It's the right choice for this beast of a kit with plenty of air to run your air tools, your horn, air lockers, you name it. The tank features 8 ports: seven 1/2" ports and one 3/4" port with a max working pressure of 150PSI and a burst rating of 300PSI. This tank should give you enough capacity to blast your K5 for 10 seconds straight!

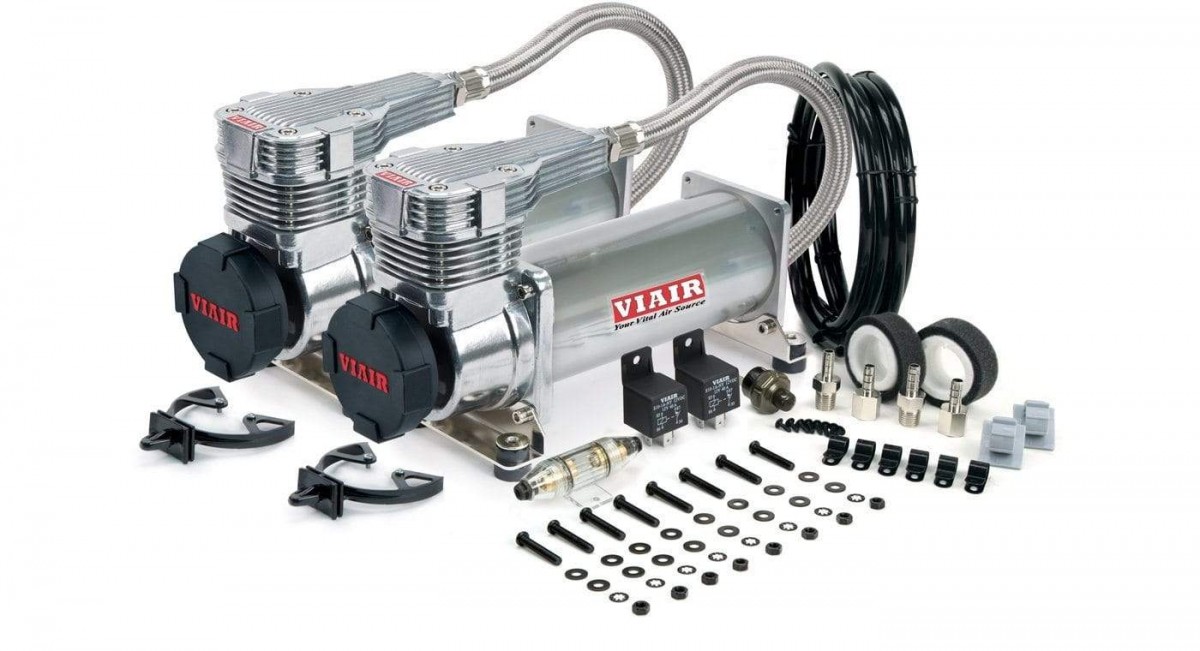

Ok, so we know you get the massive train horns & the gigantic air tank, what else could we have up our sleeve to power such a monster system? How about four Viair 485C platinum compressors? These are the most powerful, rugged constant duty compressors Viair makes. Four of these 485C compressors will fill your 12 gallons of air without breaking a sweat and can recharge the tank from 110 PSI to 150 PSI in just two minutes and forty seconds!

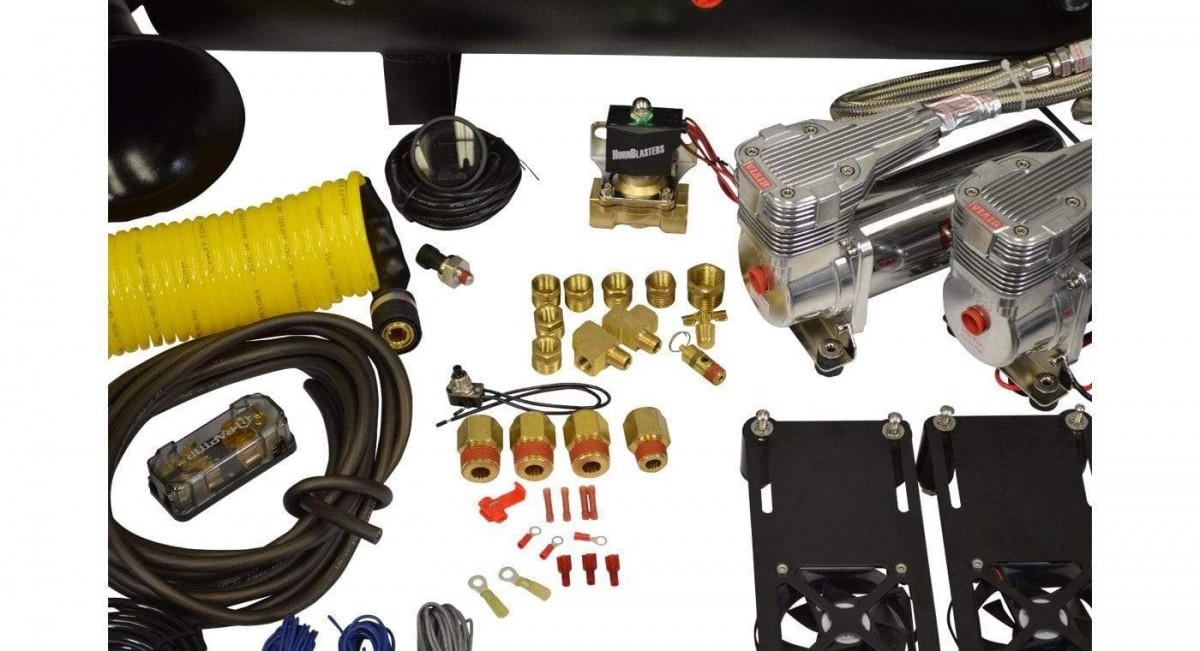

So we've covered the insane parts that make up the heart and soul of our Ultimate K5 kit. Let's talk about all the extras that we include as well. We've thought of everything, and then we put it into the kit to make sure you are covered no matter the situation. Some of the other extras we include in this kit are:
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.24 | 12 | 0 | 70.0 | 12 |
| 10 | 1.84 | 14 | 1.0 | 51.0 | 15 |
| 20 | 1.75 | 16 | 2.0 | 47.0 | 16 |
| 30 | 1.67 | 17 | 3.0 | 44.0 | 18 |
| 40 | 1.61 | 18 | 4.0 | 41.0 | 20 |
| 50 | 1.54 | 19 | 5.0 | 38.0 | 21 |
| 60 | 1.47 | 20 | 6.0 | 35.0 | 21 |
| 70 | 1.42 | 21 | 7.0 | 32.0 | 22 |
| 80 | 1.36 | 21 | 8.0 | 29.0 | 22 |
| 90 | 1.30 | 22 | 9.0 | 27.0 | 22 |
| 100 | 1.23 | 22 | 10.0 | 25.0 | 23 |
| 110 | 1.17 | 22 | 11.0 | 22.0 | 22 |
| 120 | 1.11 | 22 | 12.0 | 21.0 | 21 |
| 130 | 1.06 | 22 | 13.0 | 21.0 | 21 |
| 140 | 1.01 | 23 | 13.8 | 21.0 | 21 |
| 150 | 0.97 | 22 | |||
| 160 | 0.92 | 22 | |||
| 170 | 0.88 | 22 | |||
| 180 | 0.84 | 21 | |||
| 190 | 0.77 | 21 | |||
| 200 | 0.73 | 21 |
* Supply Voltage: 13.8 Volts
