Bringing you that classic tugboat sound straight off the shipyard, our Tug-37 228H Air Horn Kit is a simple, beginner-friendly air horn kit that is sure to rock the boat. Why settle for that boring car horn sound when you could sound like a boat? For anyone looking to upgrade their stock horn, but wants to turn heads with a unique tone, this is the kit for you!

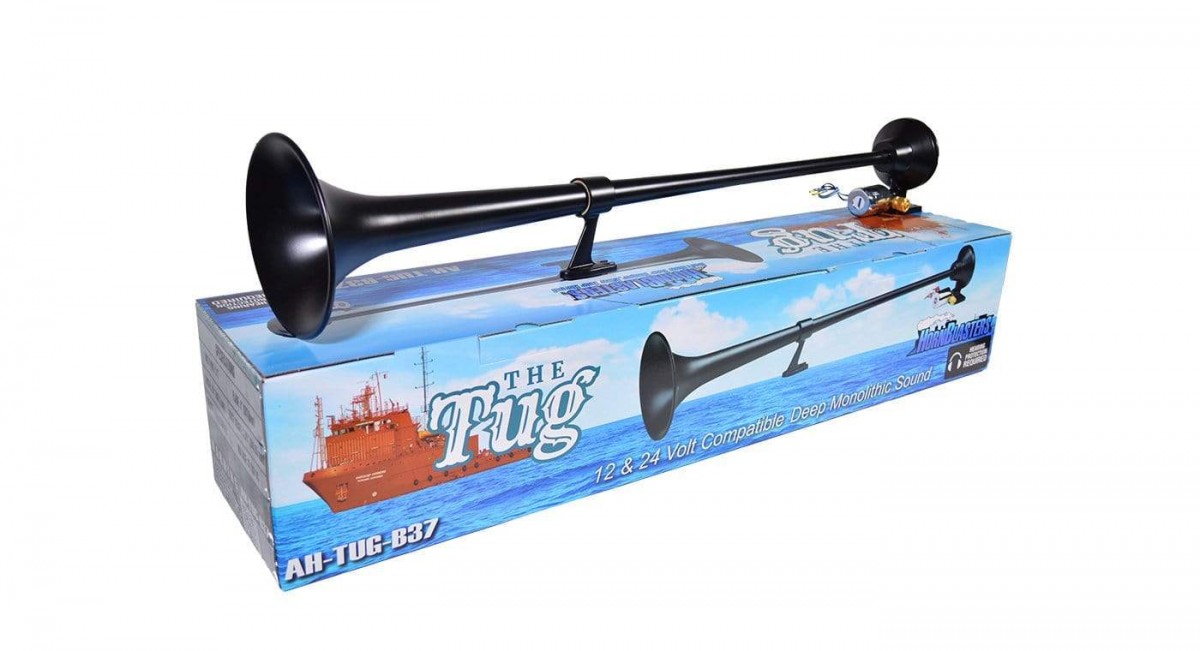

While not classified as a train horn due to the fact that it is a single bell set-up, our Tug-37 Air Horn’s singular bell is extremely long for an air horn giving it a much lower tone not usually seen on an air horn. Our Tug-37 Air Horn is even lower and louder than other Tug horns, with a ridiculous 37-inch long black bell. We even pre-installed the required 1/4" solenoid valve to make installation even easier!

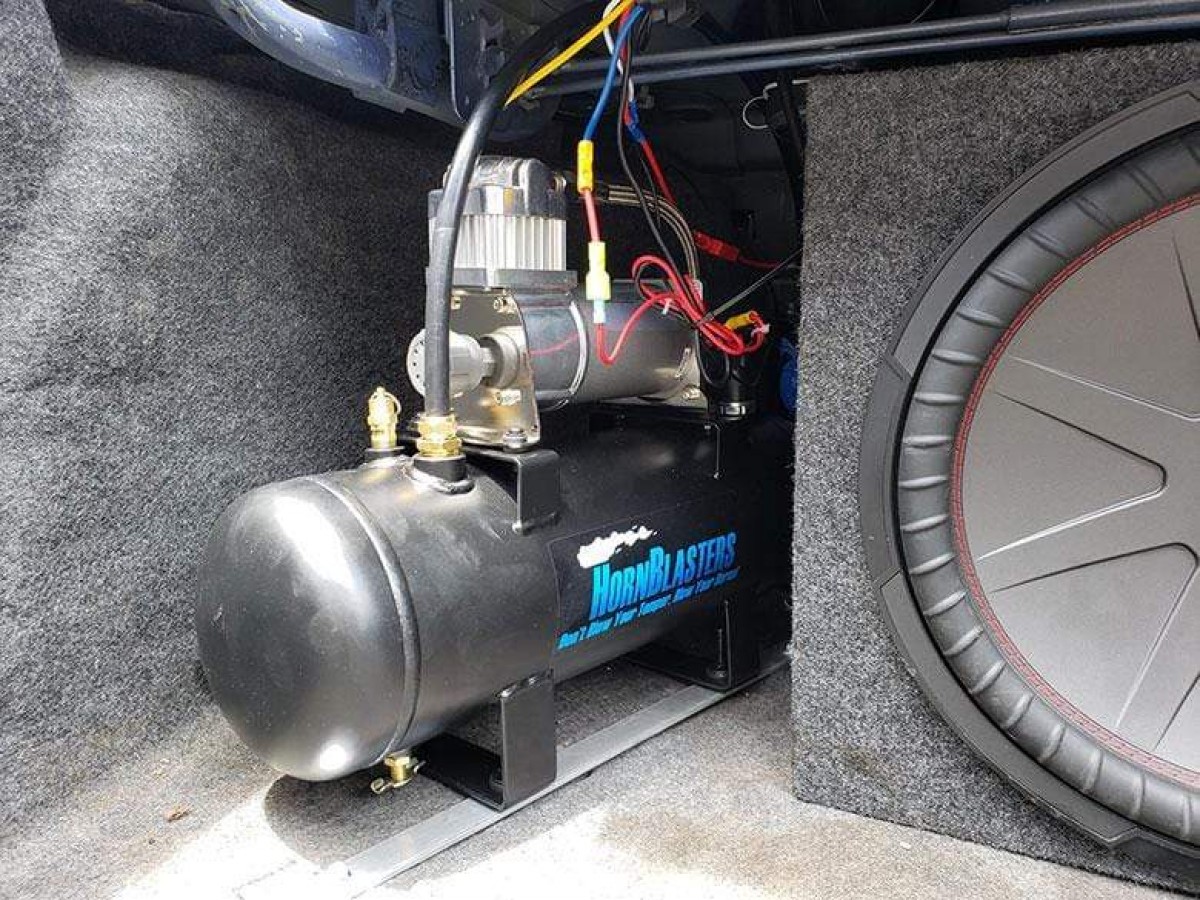

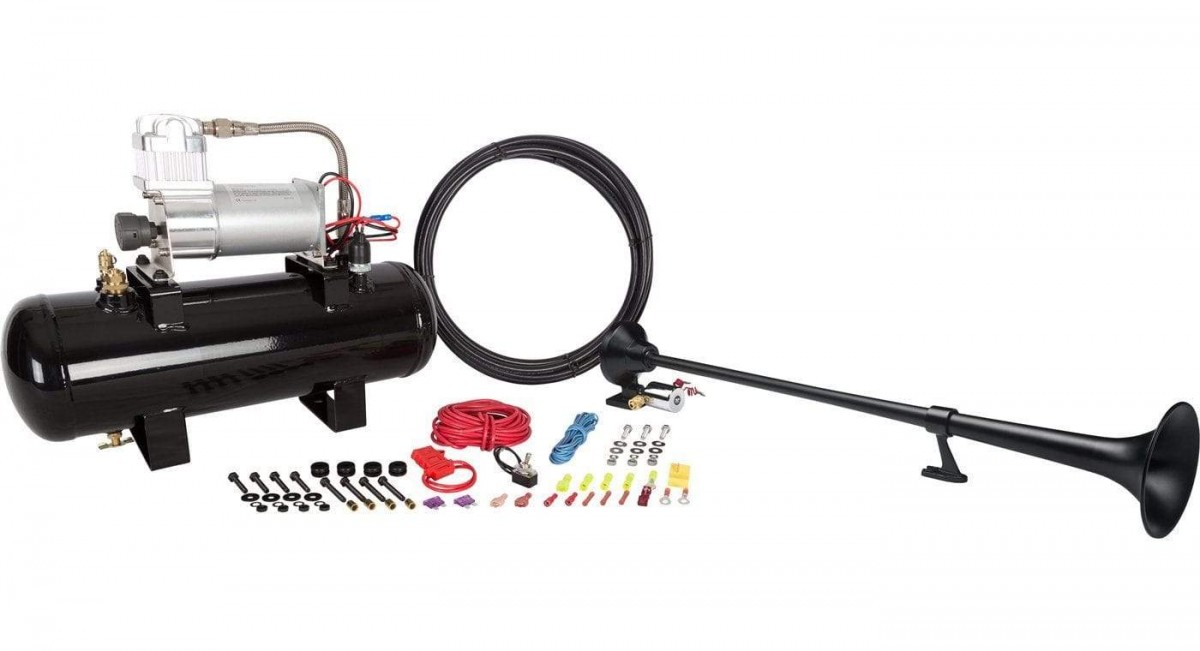

Pairing our Tug-37 Air Horn with our HornAir 228H Air Source Unit is a no-brainer. When combined, they create an easy to install and easy on budget kit that is hard to beat. Our Tug-37 228H Air Horn Kit sports a 2-gallon tank that provides enough air to blast your Tug-37 Air Horn for up to 5 second blast time and the Viair 280C Air Compressor mounted to the tank recharges from 110-145 PSI in only 1 minute and 15 seconds!

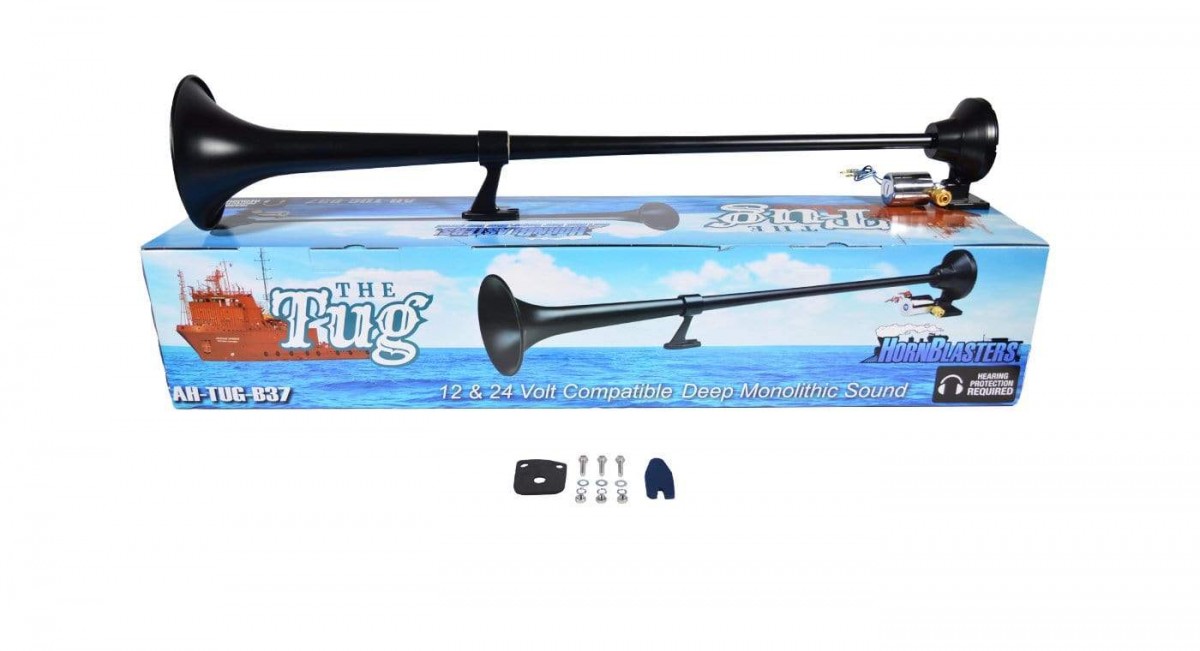

As with all HornBlasters kits, our Tug-37 228H Air Horn Kit comes complete with all required components and detailed instructions.
(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
