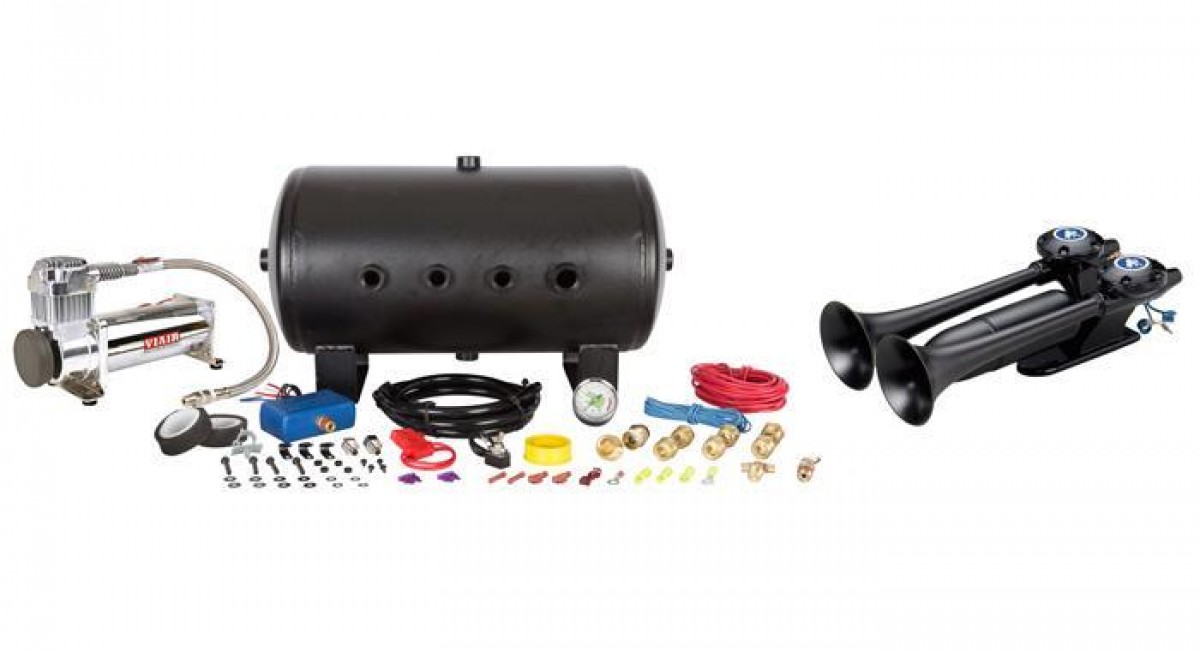

With a sound as incredibly unique as our Super Echo Air Horn, of course, you are going to want to blast it for as long as possible! That’s why we paired our awesomely obnoxious Super Echo, Air Horn, with our popular HornAir 544 Onboard Air System! With our Super Echo 544 Air Horn Kit you get an insanely long blast time out of one of our most standout air horns along with a complete constant-duty onboard air system capable of doing so much more than just blowing horns!
If you are wanting to stand out for other vehicles, there's no better way to do it than by outfitting yours with our Super Echo Air Horn. This dual-chime monster features a specially engineered resonance chamber that gives the horn a high-pitched echo that will have your ears ringing long after you have blasted it. Our Super Echo Air Horn comes with the required 3/8" solenoid valve already pre-installed to get you out and honking even faster.
Pairing our Super Echo Air Horn with our HornAir 544 Onboard Air System is a no-brainer. Our most powerful Super Echo Kit, the Super Echo 544 Air Horn Kit features the Viair 444C Air Compressor that gives the kit a 100% duty cycle and recharges the system from 110-150PSI in only 2 minutes and 20 seconds. Our 5-Gallon Air Tank will provide enough air to give your Super Echo Air Horn up to 10 seconds of constant blast time. As a constant-duty system, our Super Echo 544 Air Horn Kit can take on pneumatic tasks such as inflating tires, powering air tools, and supporting air suspension. As with all HornBlasters kits, our Super Echo 544 Air Horn Kit comes complete with all required components and detailed instructions.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 14 | 0 | 45.0 | 14 |
| 10 | 1.40 | 16 | 1.0 | 37.6 | 16 |
| 20 | 1.24 | 16 | 2.0 | 34.1 | 18 |
| 30 | 1.20 | 18 | 3.0 | 32.3 | 18 |
| 40 | 1.17 | 18 | 4.0 | 29.1 | 20 |
| 50 | 1.08 | 19 | 5.0 | 26.0 | 21 |
| 60 | 1.01 | 20 | 6.0 | 23.7 | 21 |
| 70 | 0.93 | 21 | 7.0 | 21.5 | 21 |
| 80 | 0.87 | 21 | 8.0 | 19.7 | 21 |
| 90 | 0.82 | 21 | 9.0 | 18.0 | 21 |
| 100 | 0.77 | 21 | 10.0 | 16.5 | 21 |
| 110 | 0.72 | 21 | |||
| 120 | 0.68 | 21 | |||
| 130 | 0.64 | 21 | |||
| 140 | 0.60 | 21 | |||
| 150 | 0.57 | 21 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 4 min. 15 sec. (± 10 sec.) |
| 110 to 150 PSI | 1 min. 25 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
