Sure, everyone wants to be loud, but if you want to really stand out you need a horn that’s unique. If you are looking for a sound that is unlike any horn you've heard before, check out our Super Echo 232 Air Horn Kit. This entry-level budget-friendly kit is the easiest way to turn heads!

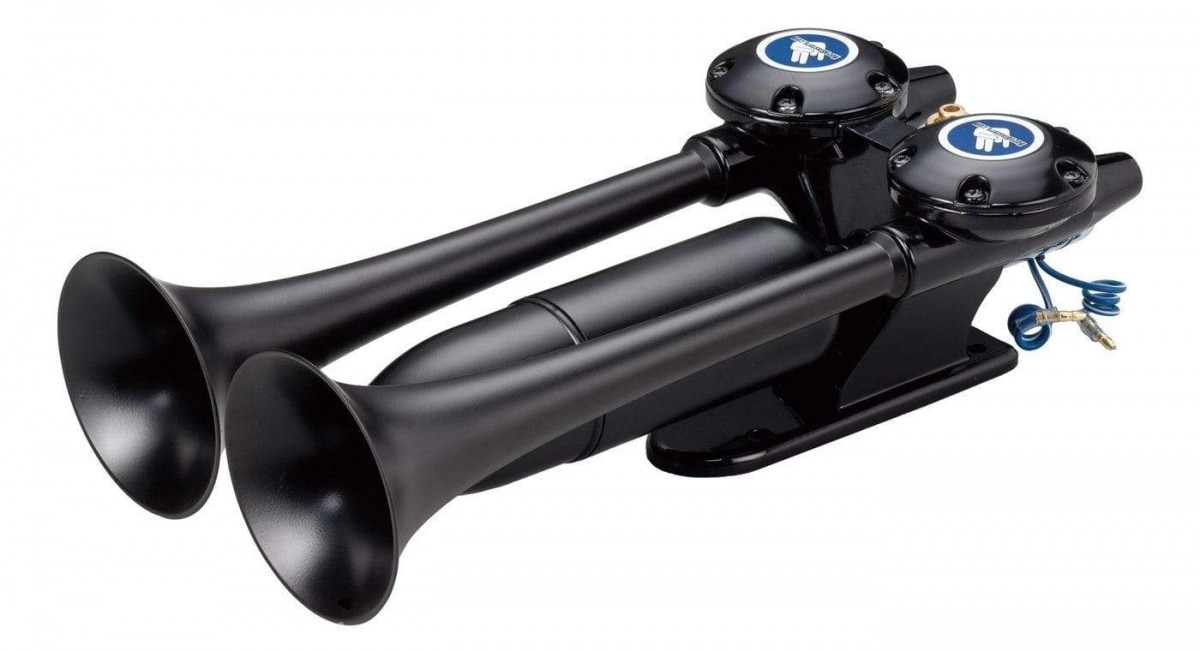

At first glance, our Super Echo Air Horn might seem like your run-of-the-mill dual-tone air horn, but the secret to the Super Echo's sound lies in the special resonance chamber located between the bells. As the dual bells sound off, the resonance chamber catches both tones and causes an echo effect that, at the volume that the Super Echo operates at, is guaranteed to surprise anyone within earshot.

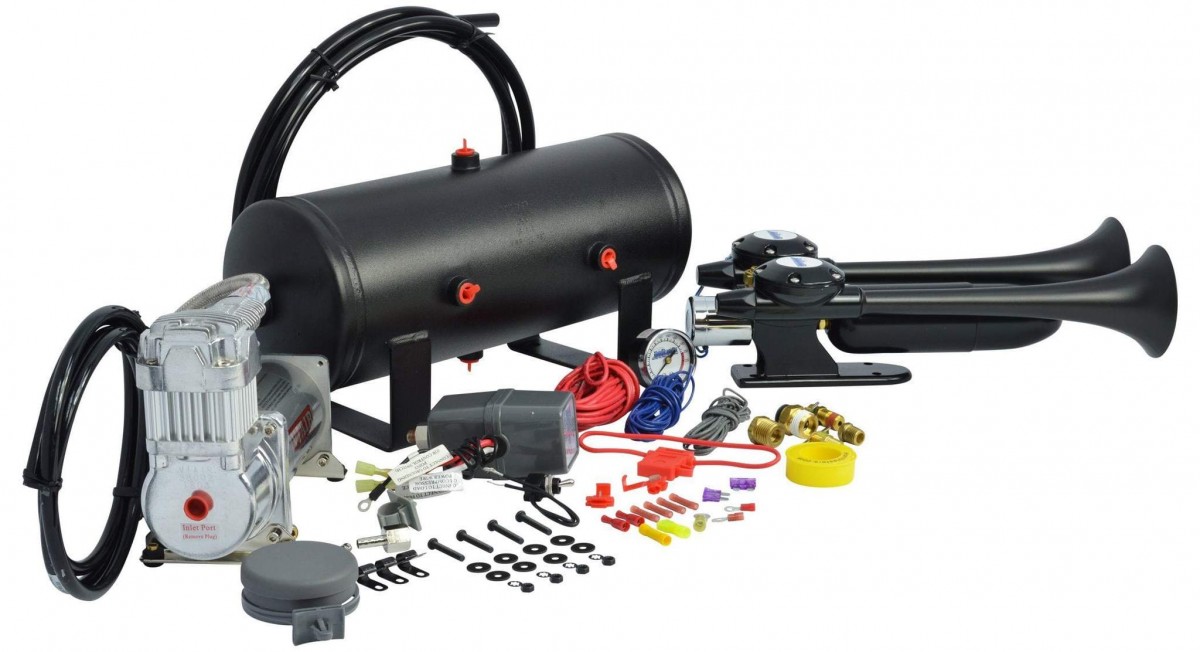

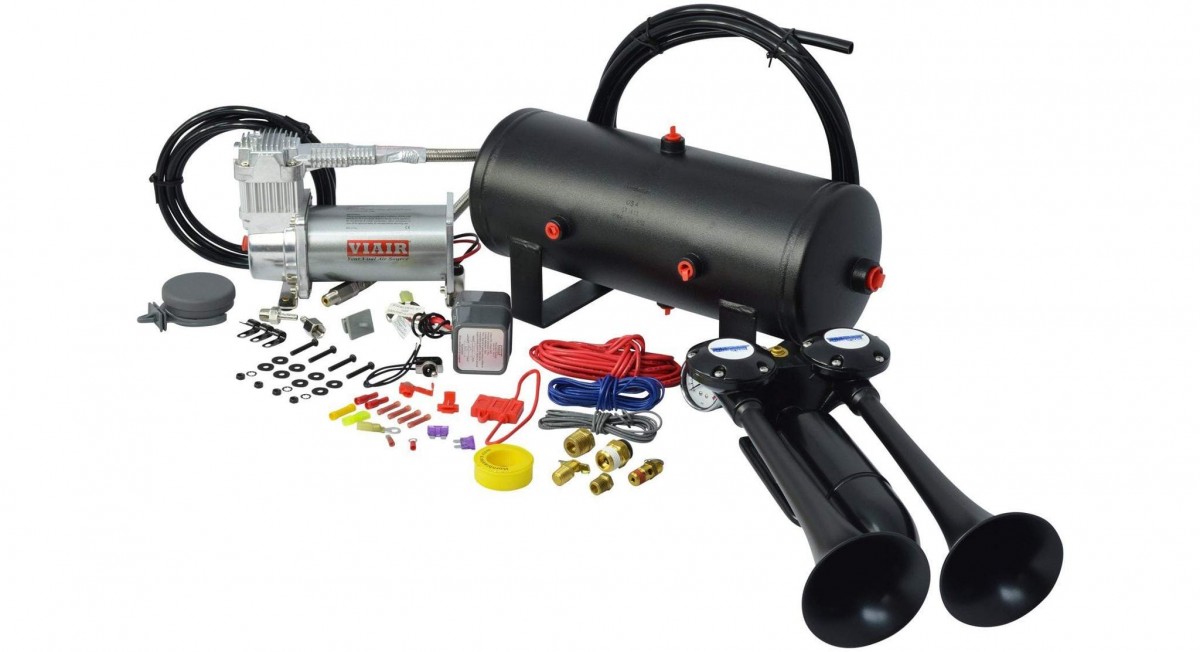

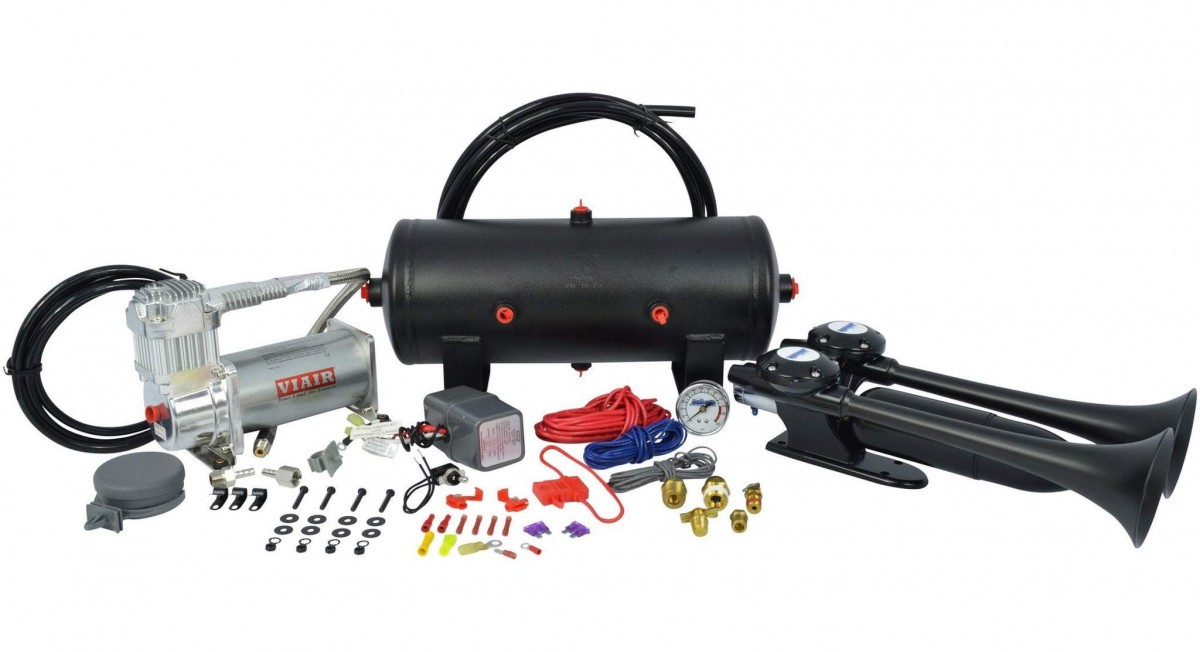

Our HornAir 232 Onboard Air that powers our Super Echo Air Horn is a great system for anyone on a budget. As our lowest cost water-resistant unit, our HornAir 232 Onboard Air System is the go-to kit for exterior installs. Our Black 6-Port 2-Gallon tank supplies enough air to give your Dolphin Air Horn 4-5 seconds of continuous blast-time and the Viair 380C Air Compressor recharges the tank from 110-150 PSI in just under a minute. As with all HornBlasters kits, our Super Echo 232 Air Horn Kit comes complete with all required components and detailed instructions.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 14 | 0 | 45.0 | 14 |
| 10 | 1.40 | 16 | 1.0 | 37.6 | 16 |
| 20 | 1.24 | 16 | 2.0 | 34.1 | 18 |
| 30 | 1.20 | 18 | 3.0 | 32.3 | 18 |
| 40 | 1.17 | 18 | 4.0 | 29.1 | 20 |
| 50 | 1.08 | 19 | 5.0 | 26.0 | 21 |
| 60 | 1.01 | 20 | 6.0 | 23.7 | 21 |
| 70 | 0.93 | 21 | 7.0 | 21.5 | 21 |
| 80 | 0.87 | 21 | 8.0 | 19.7 | 21 |
| 90 | 0.82 | 21 | 9.0 | 18.0 | 21 |
| 100 | 0.77 | 21 | 10.0 | 16.5 | 21 |
| 110 | 0.72 | 21 | |||
| 120 | 0.68 | 21 | |||
| 130 | 0.64 | 21 | |||
| 140 | 0.60 | 21 | |||
| 150 | 0.57 | 21 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 4 min. 15 sec. (± 10 sec.) |
| 110 to 150 PSI | 1 min. 25 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
