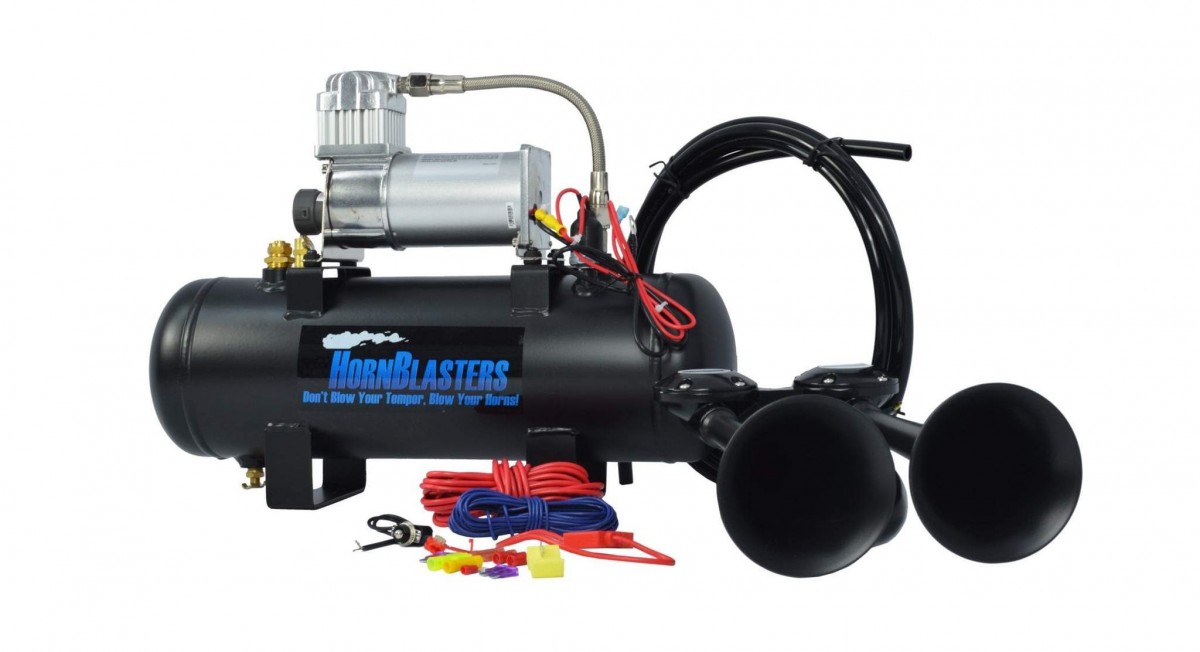

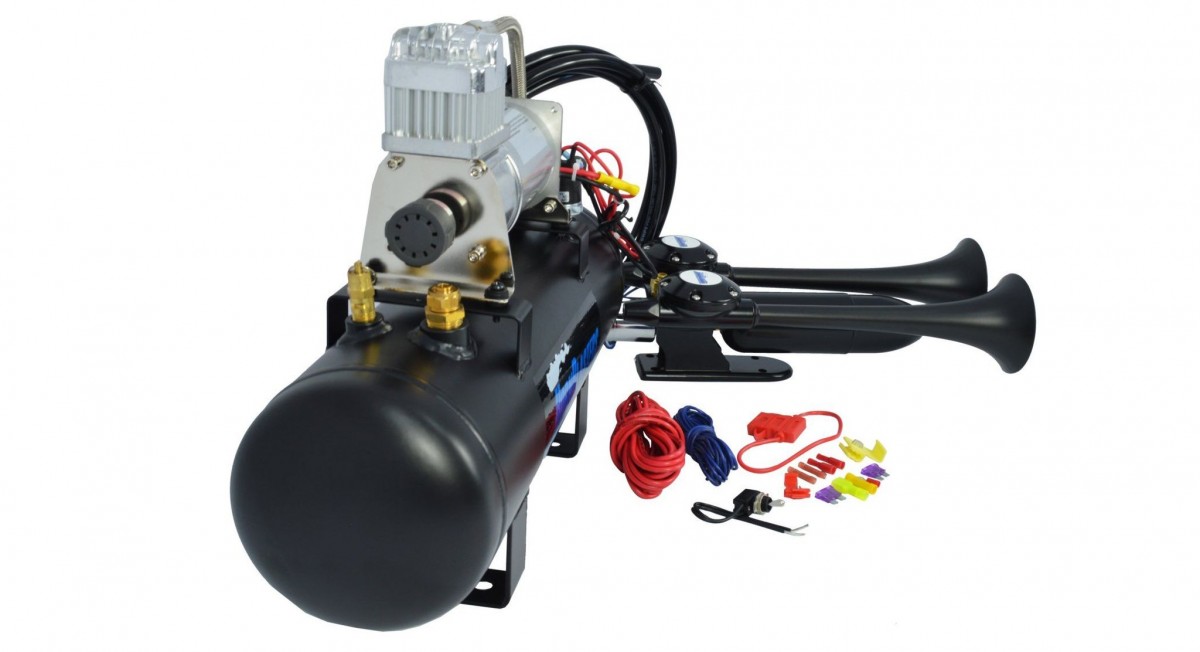

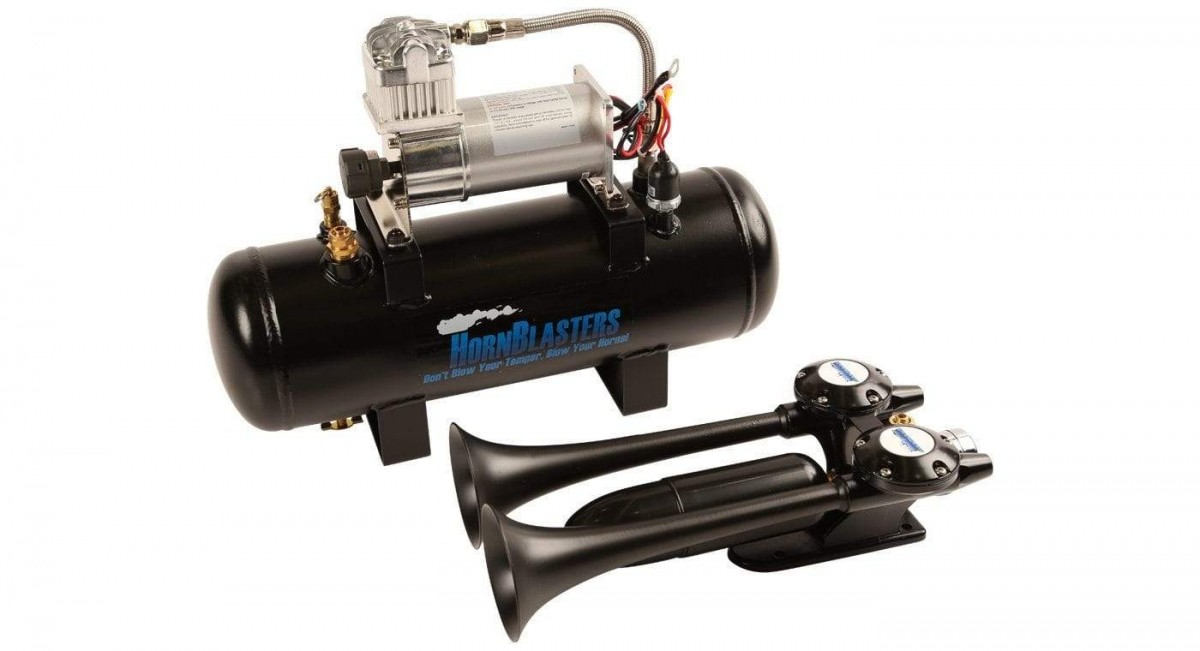

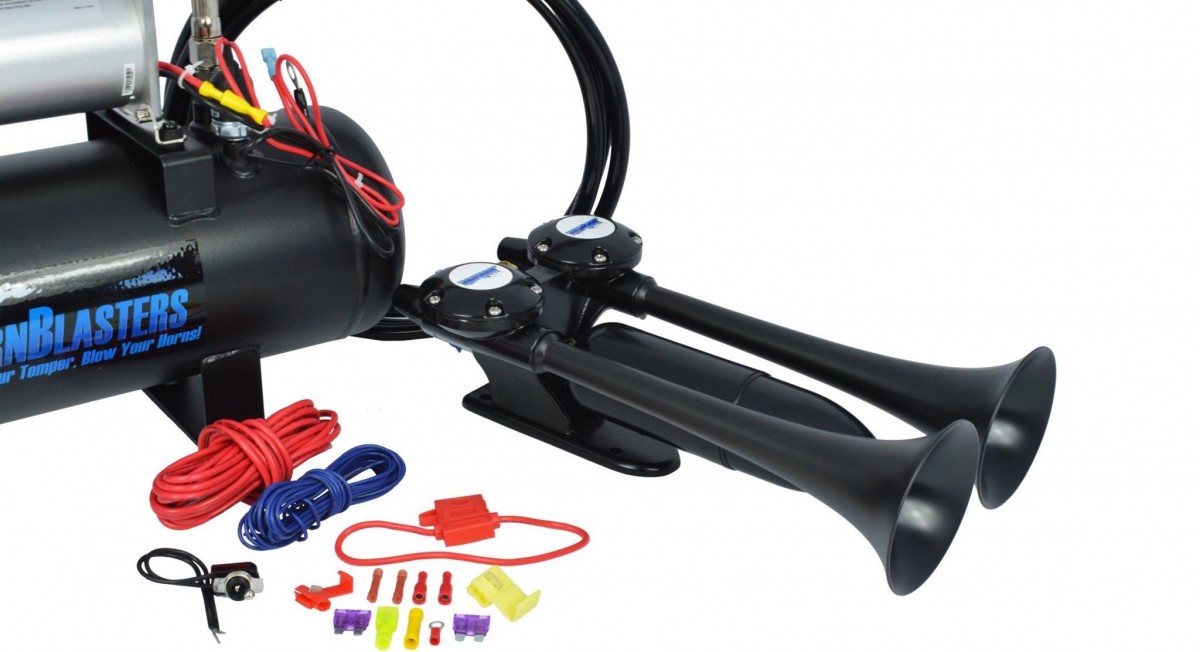

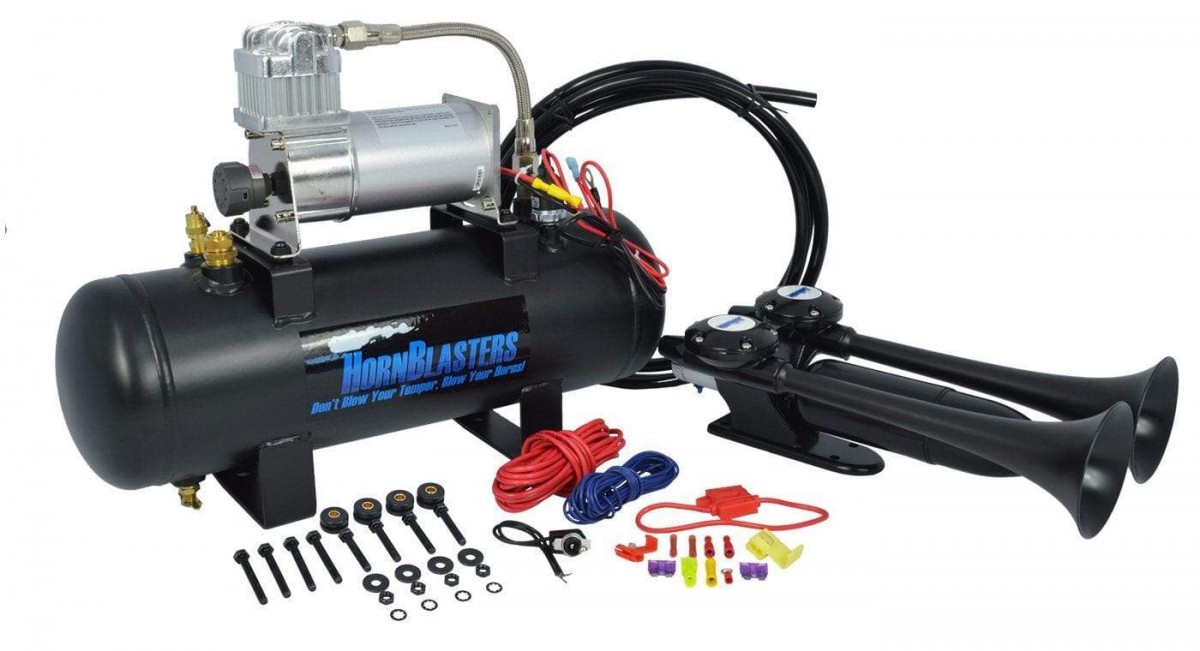

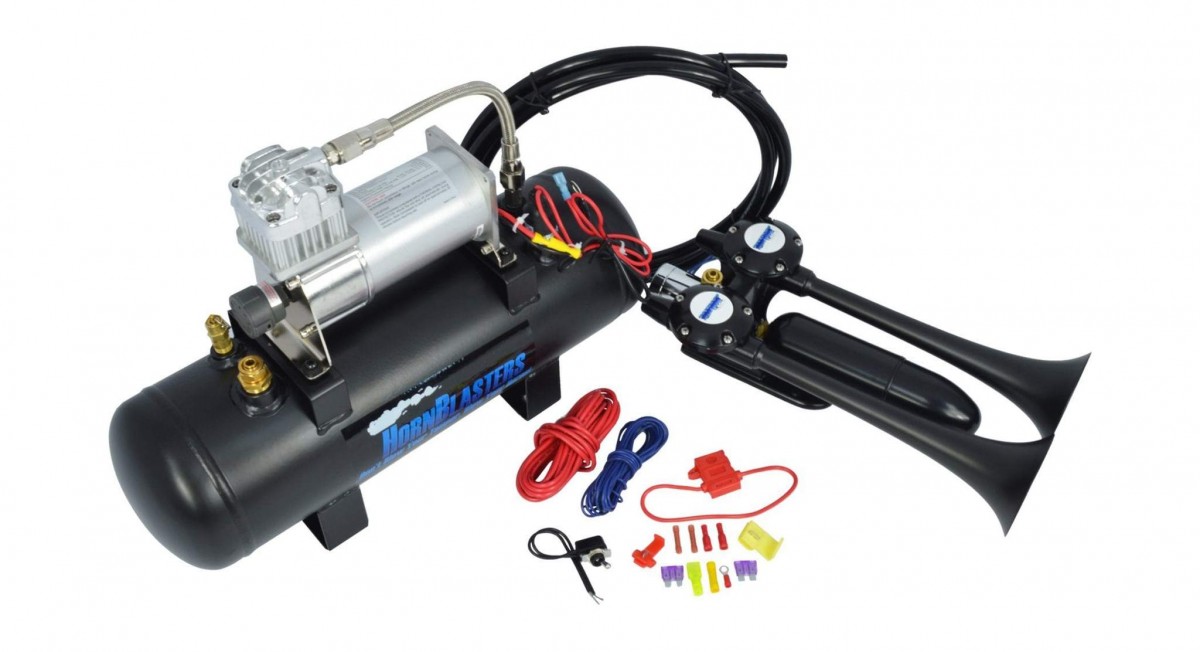

The Super Echo 228H Air Horn Kit is perfect for anyone that dares to be different. If you are going to get an obnoxiously loud horn, why get what that sounds like everyone else? With our Super Echo 228H Air Horn Kit, you get one of our most unique sounding air horns along with a budget-minded beginner-friendly air source unit that gets you out on the road and honking in no time!

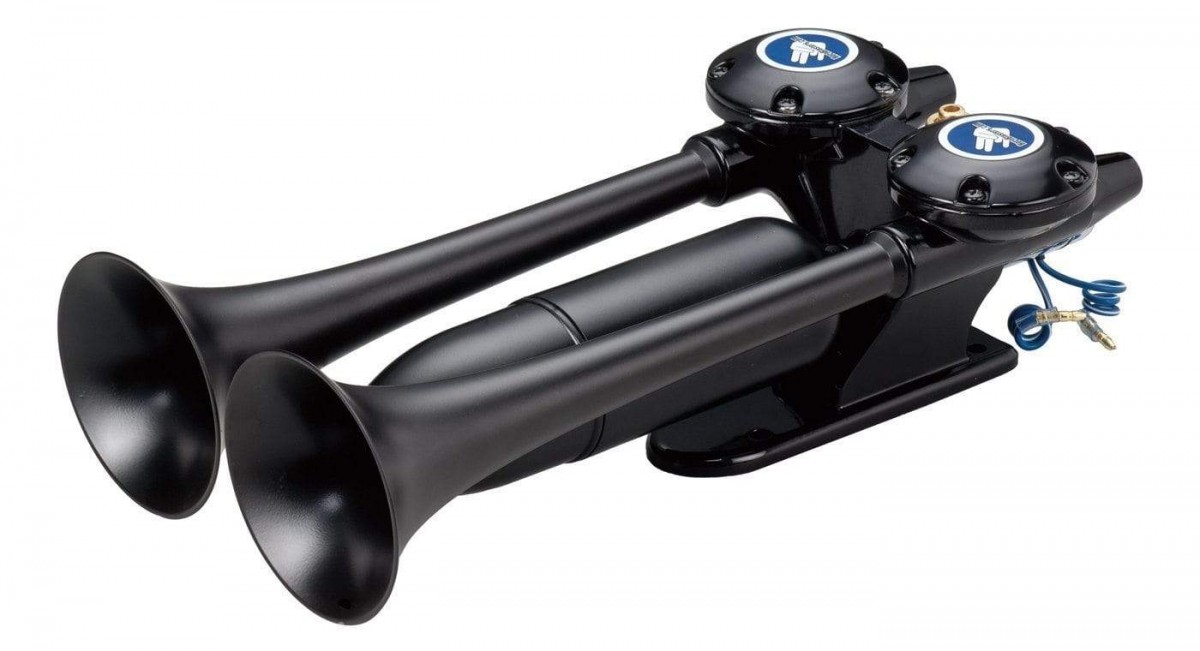

Our Super Echo Air Horn is a dual chime stealth black air horn that features a specially engineered resonance chamber that gives our Super Echo Air Horn’s high pitch sound a unique tone that you won't find anywhere else. As the dual bells sound off, the resonance chamber catches both tones and causes an echo effect is sure to turn heads!!
Our HornAir 228H Air Source Unit that our Super Echo Air Horn is paired with makes it perfect for beginners or anyone on a budget that wants to stand out in the crowd without breaking the bank. Our HornAir 228H Air Source Unit comes complete with a pre-wired pressure switch and a Viair 280C Air Compressor mounted on the 2-gallon tank, providing our Super Echo Air Horn with up to 5 seconds of continuous blast time. As one of our more compact kits, our Super Echo 228H Air Horn Kit is perfect for any vehicle install that is limited on space.
Not only does this kit give you everything you need to get up and honking, but it is also able to be upgraded to include a Wireless Activation Remote to blast it from up to 100 yards away!

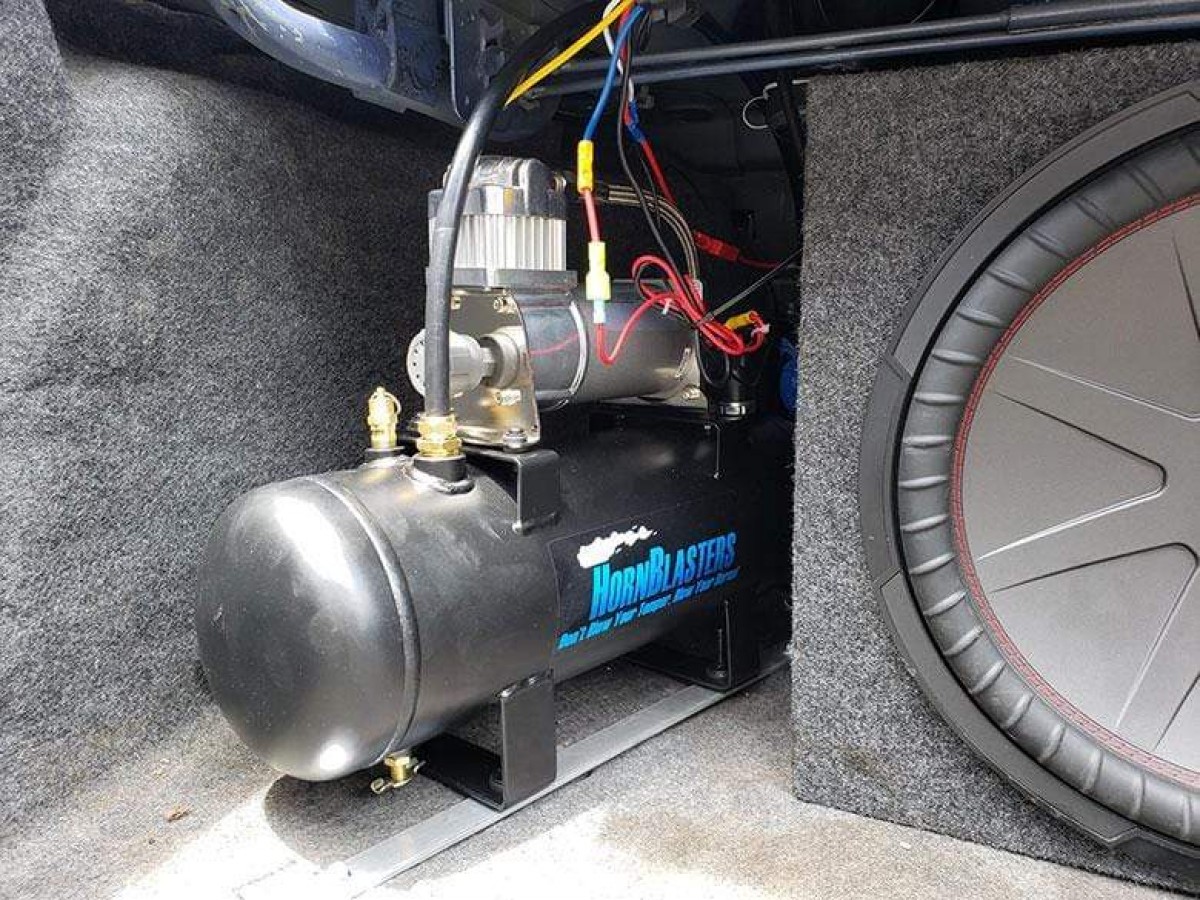

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
