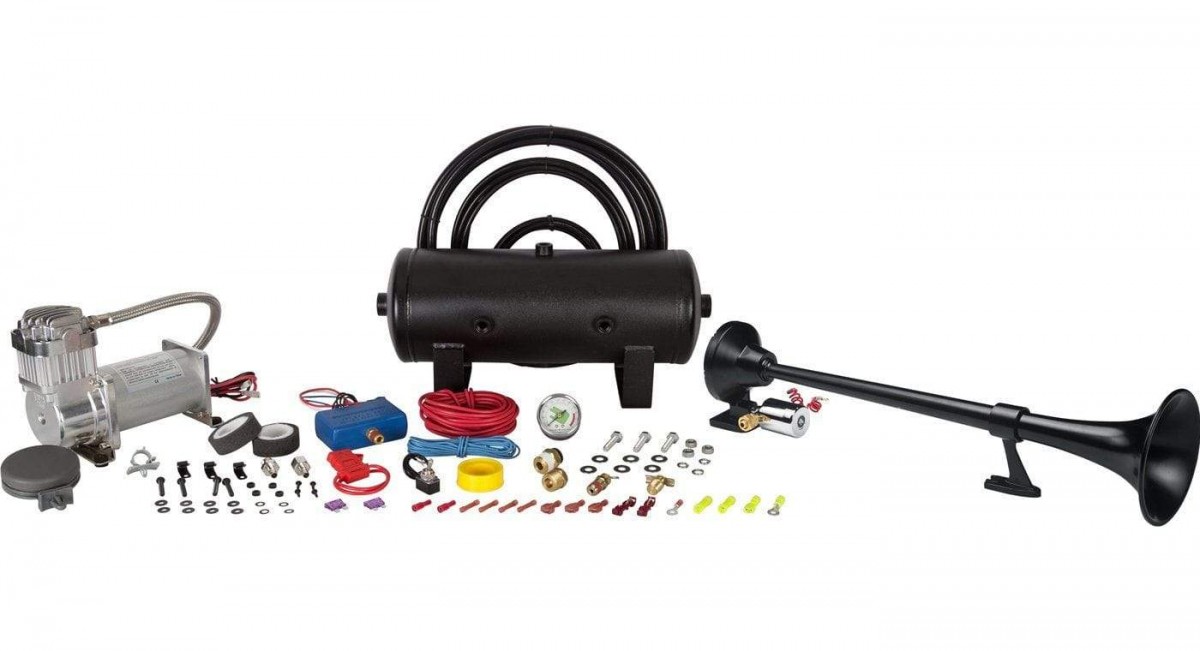

SHART 232 AIR HORN KIT HK-S25-232

Return to Shopping

Product Description

Looking for the fabled brown note? Our Shart 232 air horn kit produces a tone loud and low enough to make anyone rumble down under. While not considered a train horn due to the fact that it's a single bell, if you are looking for a deep, dirty tone out of your horn, the Shart 232 air horn kit will definitely leave you feeling like you need to change your drawers.

Our Shart air horn produces one of the lowest tones you can get in an air horn. If you are looking for a tone similar to a big rig but nastier and a hell of a lot louder, this is the perfect horn for you. This 24-inch long single metal trumpet comes with a pre-installed valve and fits perfectly in any vehicle.

Our HornAir 232 onboard air system is our most popular entry-level system and our lowest cost weather-resistant unit. Ideal for blasting horns and even light pneumatic use, our HornAir 232 Onboard Air System provides enough air to give your Shart horn a stunning 5-6 seconds of continuous honk time and the included Viair 380C air compressor recovers the tank from 110-150 PSI in just 56 seconds!

  • All-inclusive Air Horn Solution!
  • Complete With Solenoid
  • 150 PSI Air System
  • Max Honk Time: 5 to 6 Seconds

  • Part Number: HK-S25-232
  • Horn: HornBlasters Shart Horn
  • Tank: 2 Gallon Tank
  • Tank Length: 17″ (431.8 mm)
  • Tank Diameter: 6″ (152.4 mm)
  • Tank Height: 7″ (177.8 mm)
  • Tank Weight: 10 lb (4.54 Kg)
  • Compressor: Viair 380C Air Compressor
  • Max Amperage: 23 Amps
  • Maximum Duty Cycle: 100% @ 100 PSI
  • CFM @ 0 PSI: 1.58 CFM
  • Compressor Length: 9″ (228.6 mm)
  • Compressor Width: 4″ (101.6 mm)
  • Compressor Height: 6.75″ (171.5 mm)
  • Compressor Weight: 6.95 lb (3.15 Kg)

2.0 GALLON TANK FILL RATE
0 to 150 PSI 2 min. 52 sec. (± 10 sec.)
110 to 150 PSI 56 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts
