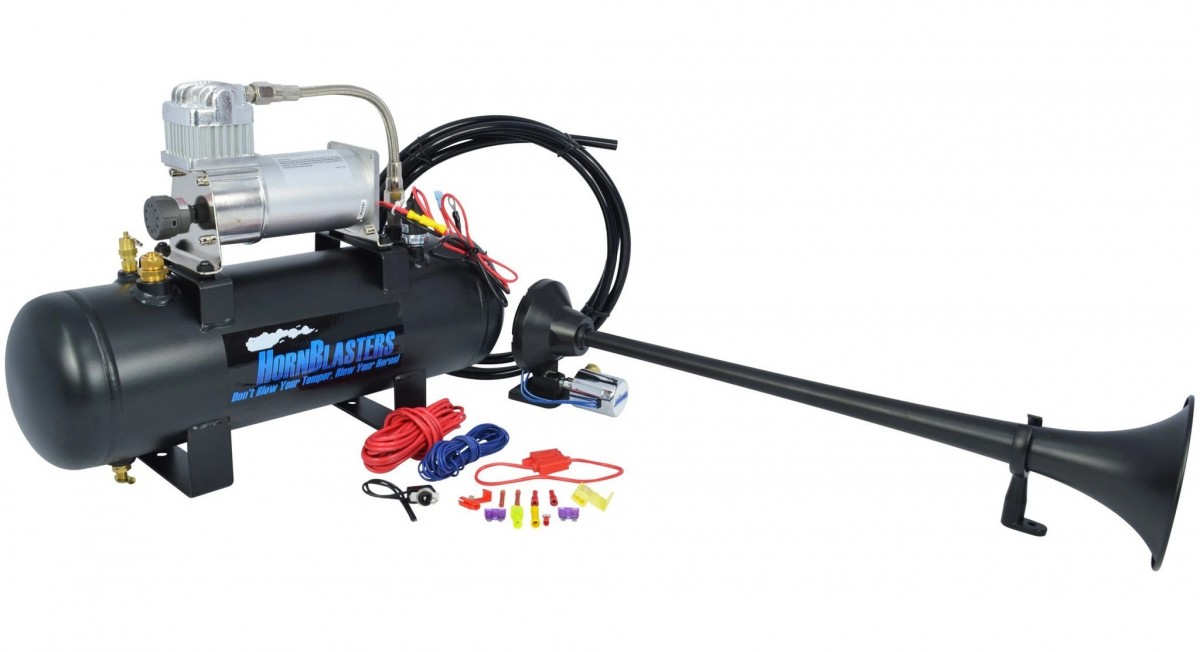

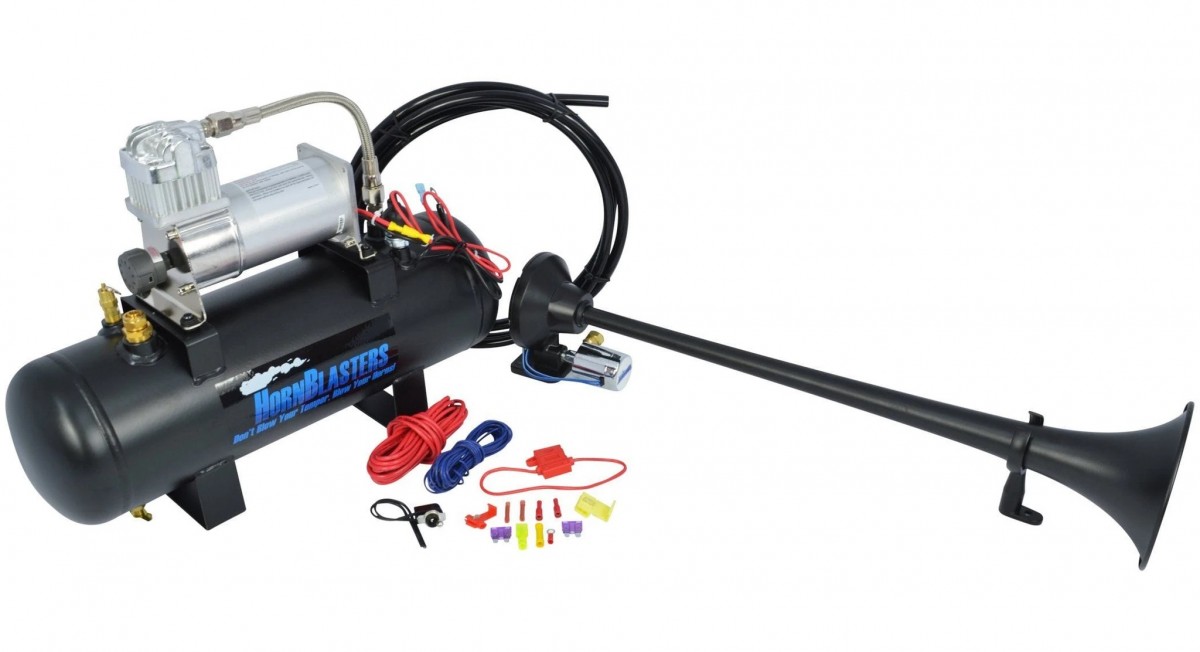

There are a lot of crazy drivers out there nowadays. Our appropriately named Safety 228H air horn kit will ensure that you get their attention and they stay out of your way when they hear the massive blast that this single trumpet horn produces. Incredibly compact and easy to install, Our Safety 228H air horn kit has been one of our best entry-level kits for years.

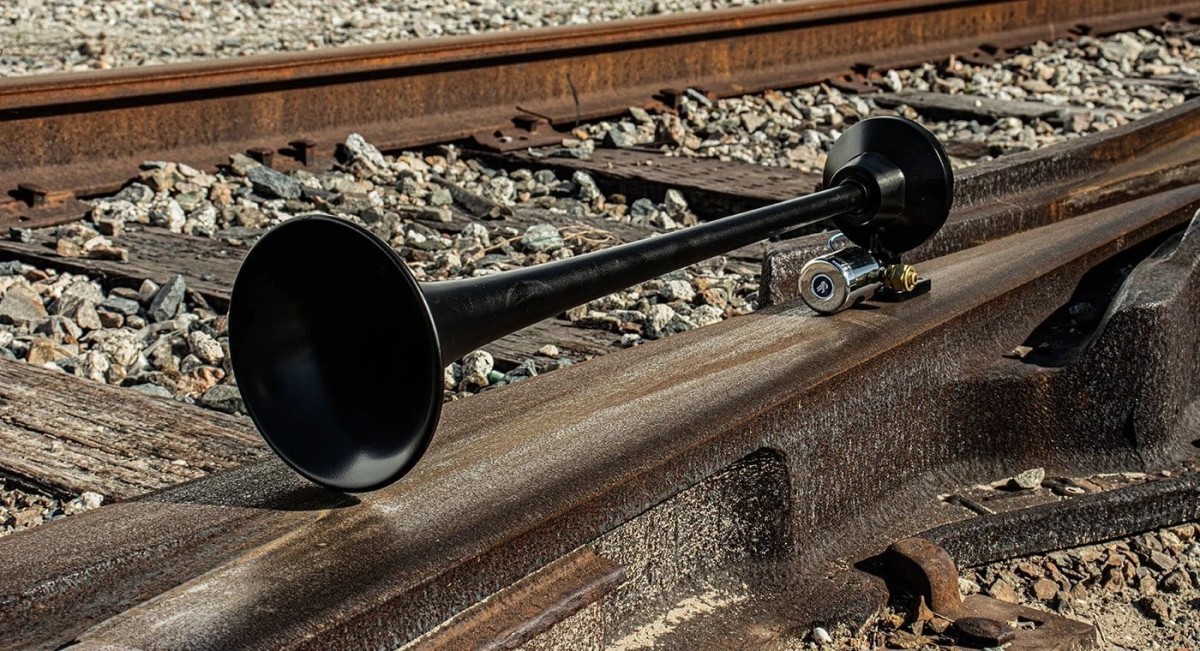

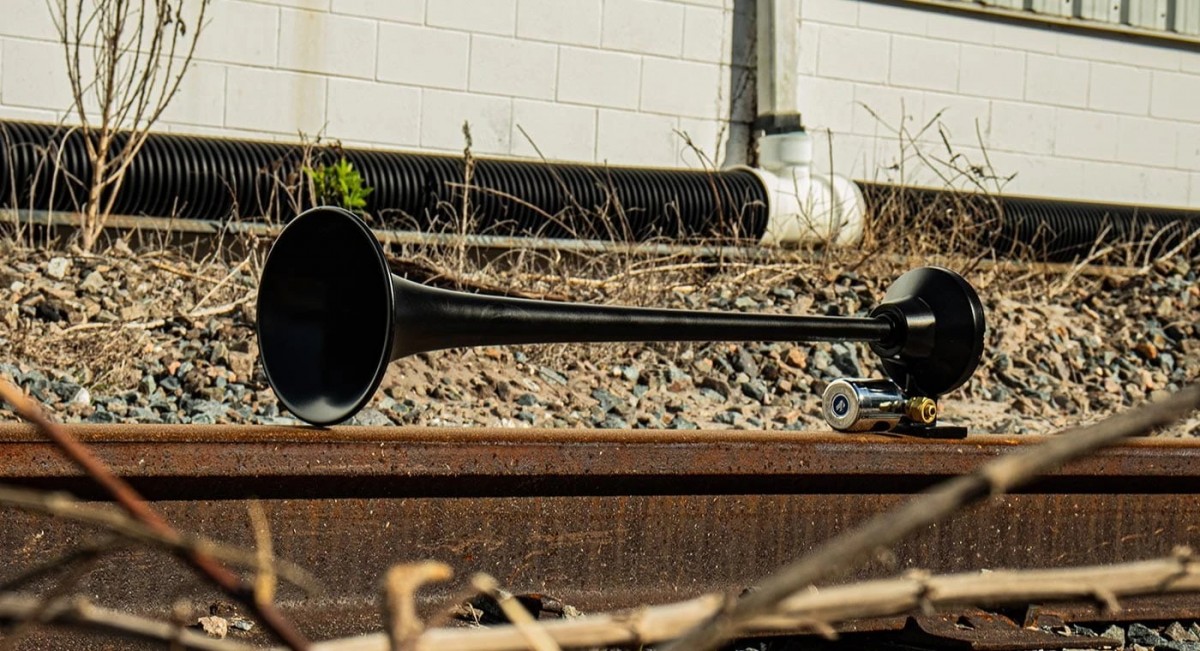

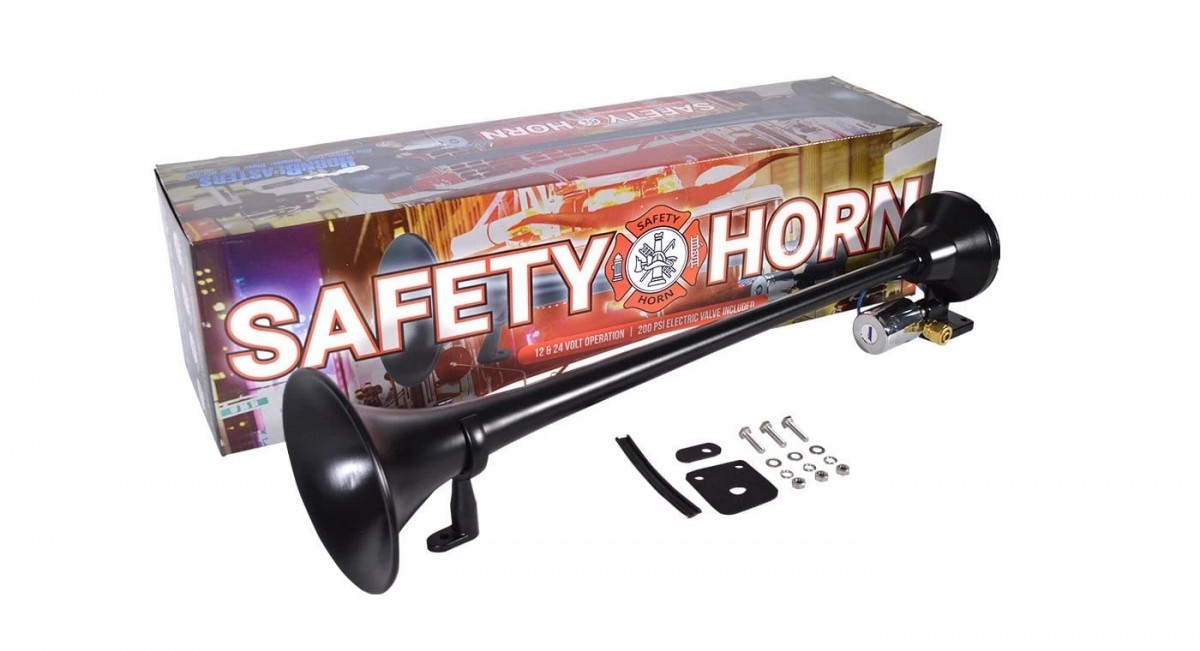

Have you ever been taken by surprise when a firetruck sounds its horn? That’s the same tone you're getting with our Safety 228H air horn kit. With an exceptionally punchy mid-range tone coming from this single black 25-inch bell, it’s no surprise that our Safety air horn is one of our most popular air horns.

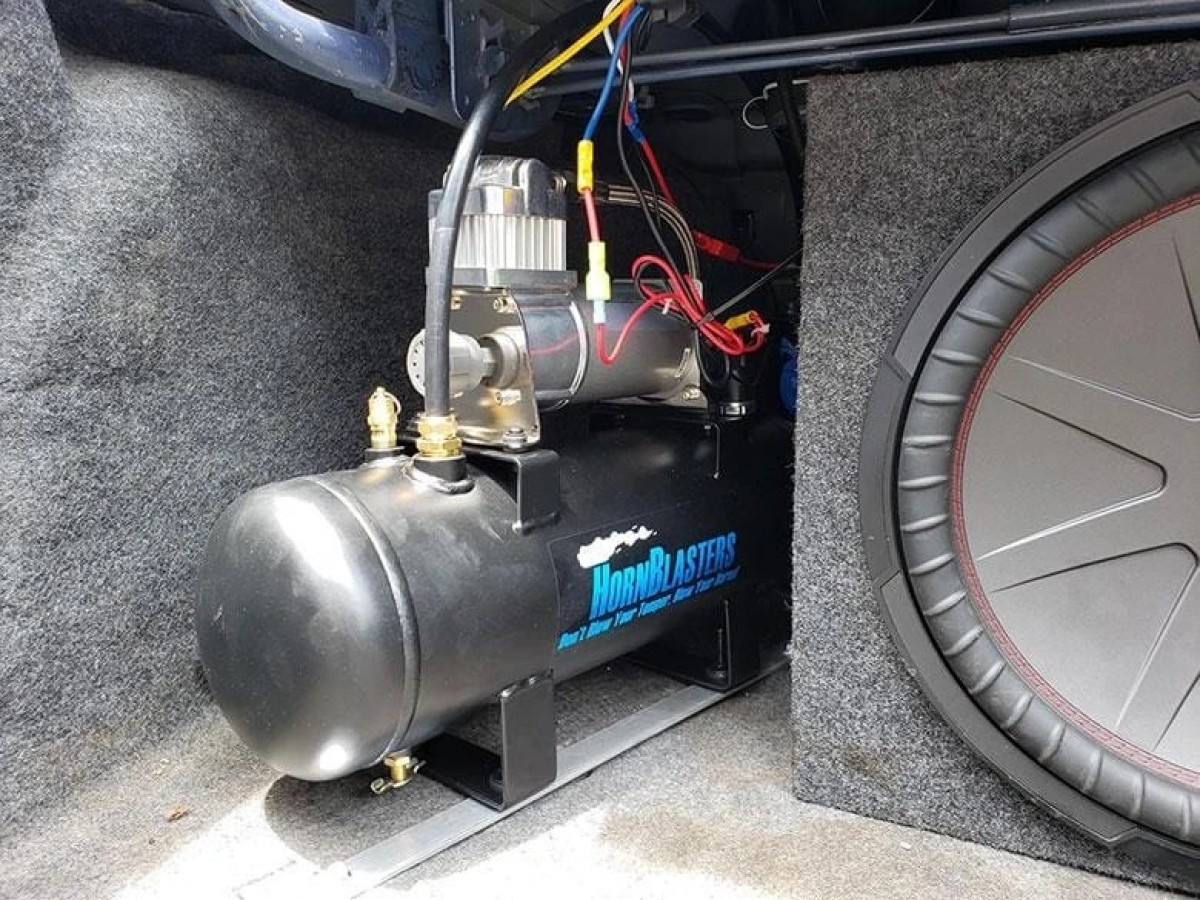

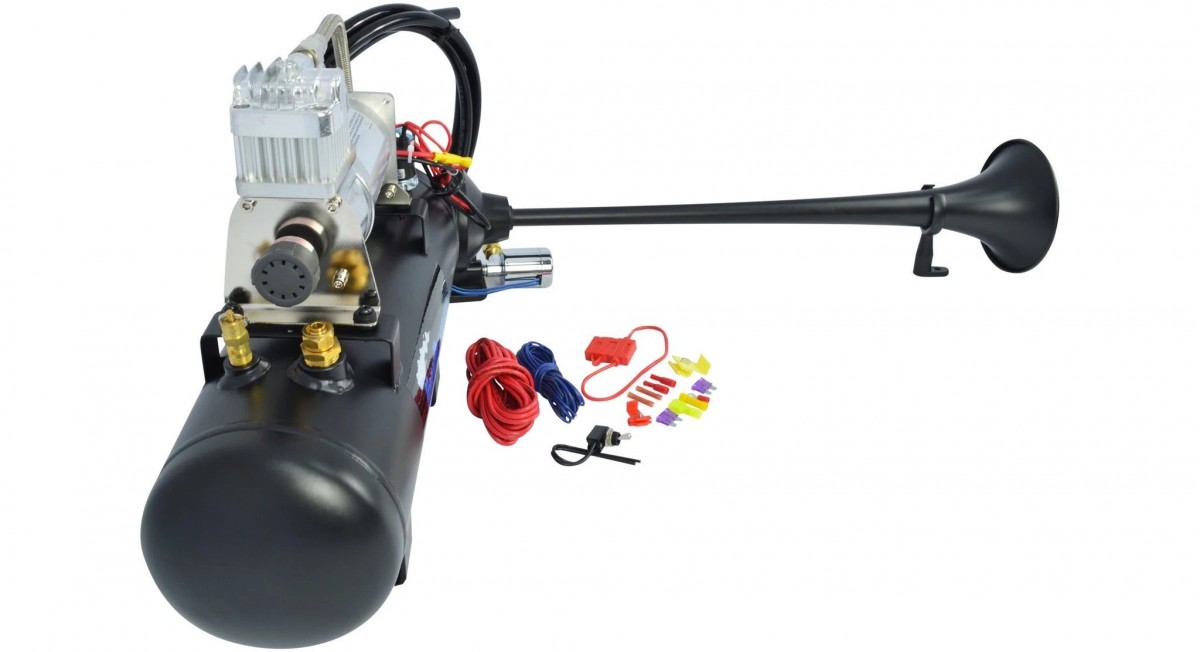

Our 228H air source unit that we paired with our Safety air horn gives you the power and performance you need in a compact and easy to install package. With the majority of the unit already pre-wired and pre-plumbed for you, installation is a breeze, making it the go-to kit for beginners or anyone with limited space. With the 2-gallon air tank, you will get 5-6 seconds of honk time with the Safety air horn. The tank-mounted Viair 280C air compressor can recover the tank from 110-145 PSI automatically in only 1 minute and 15 seconds!

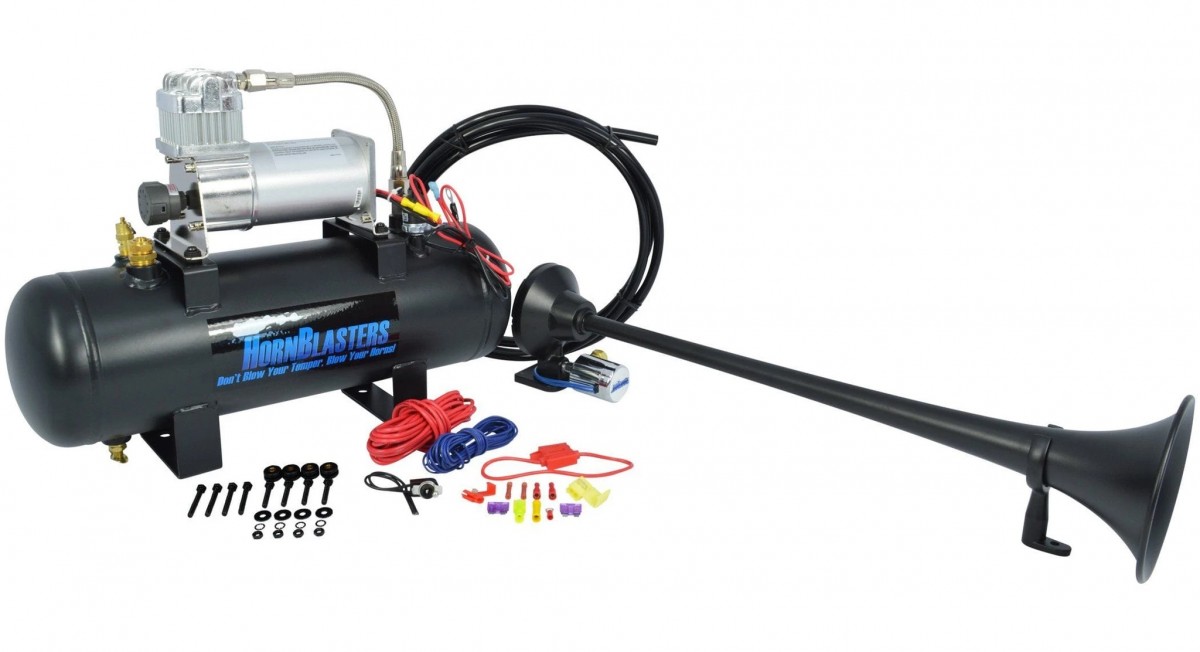

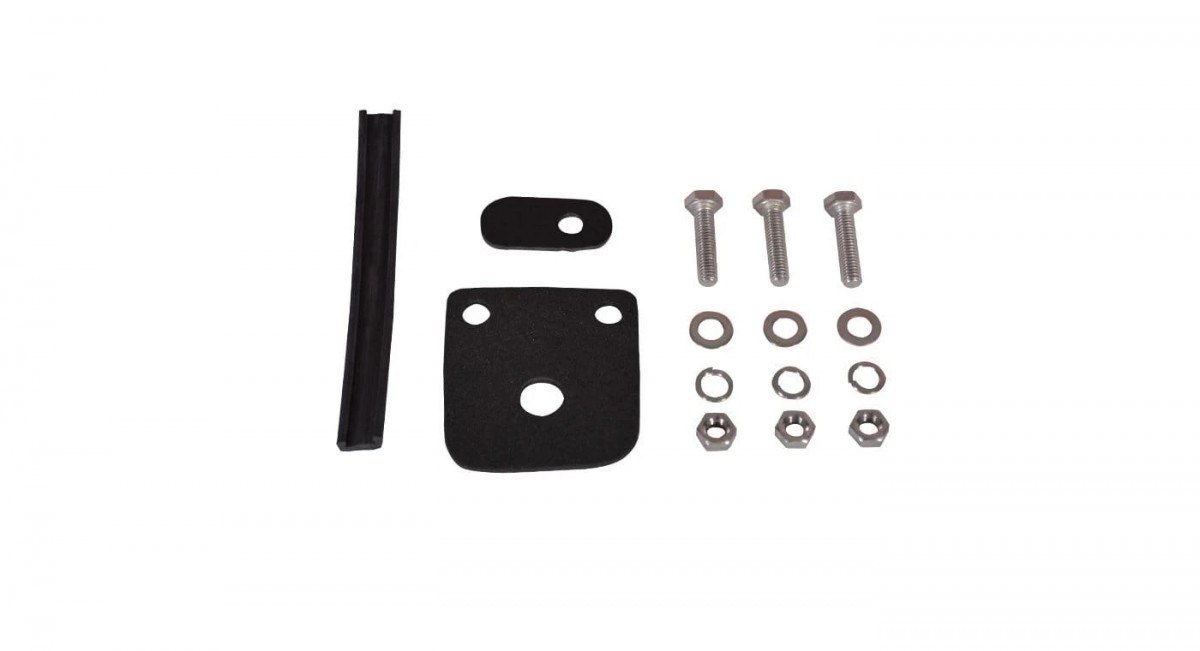

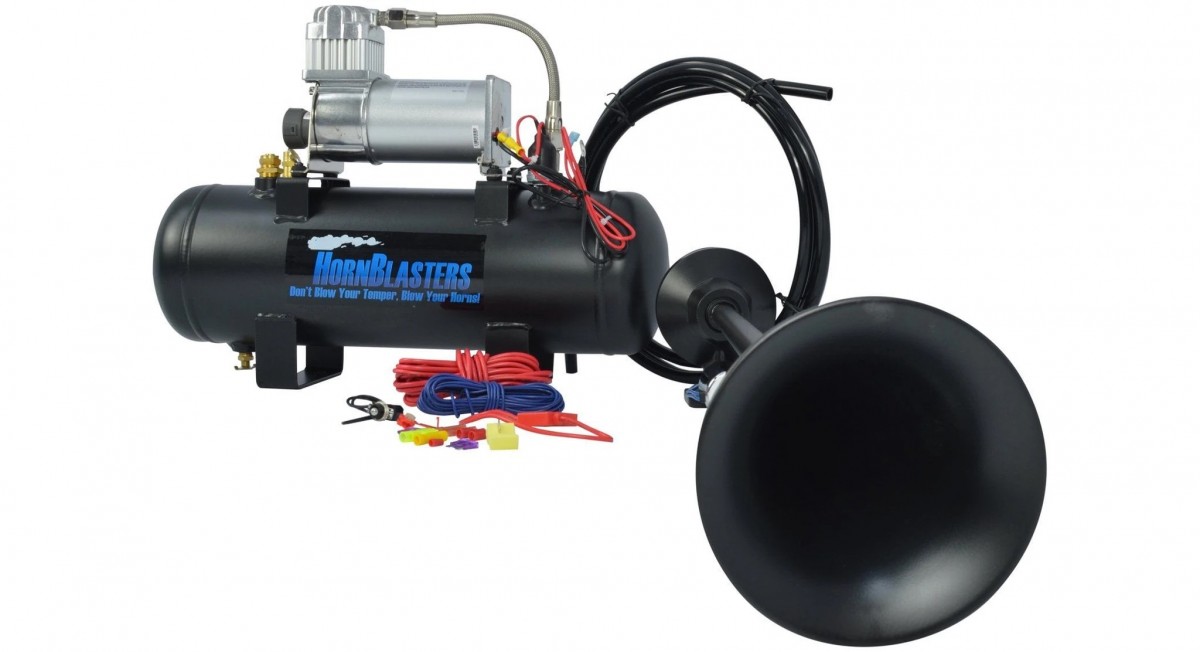

As with all HornBlasters kits, our Safety 228H air horn kit comes complete with all required components and detailed instructions.
(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
