RHINO 544 TRAIN HORN KIT HK-Q3-544

Return to Shopping

Product Description

What happens when you combine our popular Rhino Train Horn with one of our most powerful onboard air systems? An insanely powerful and loud budget train horn kit that gives you dependable onboard air for not only your train horn but for uses such as tire inflation and air suspension as well! Our Rhino 544 Train Horn Kit will stop you in your tracks with its thunderous train horn sound, backed by our popular HornAir 544 Onboard Air System.

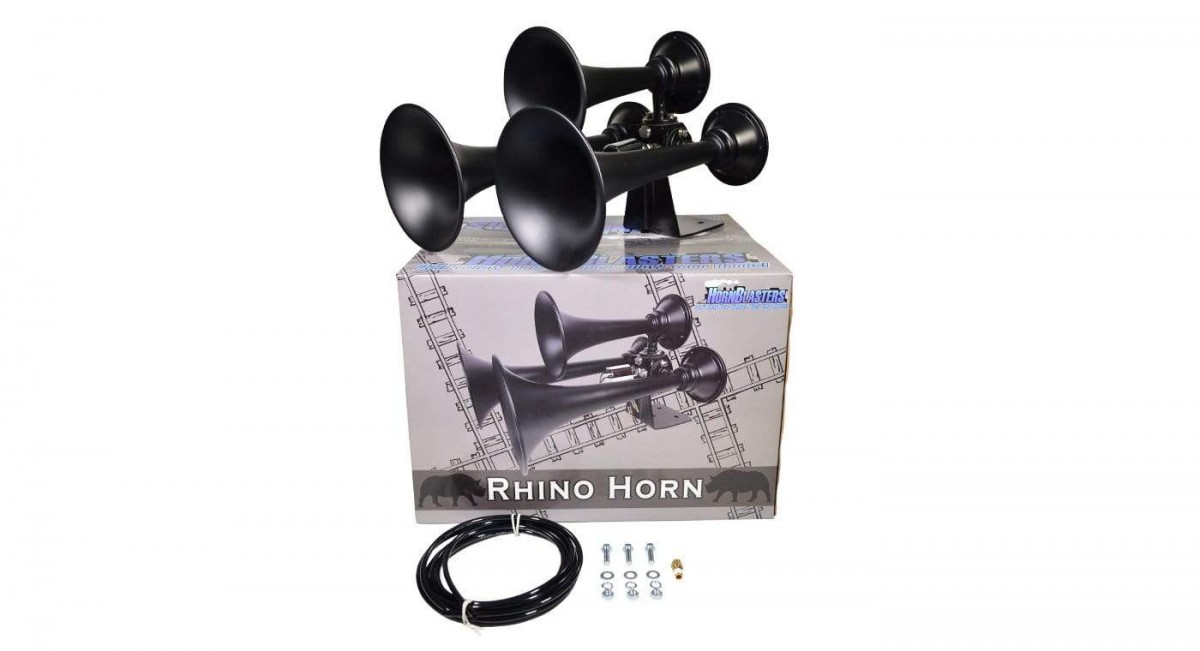

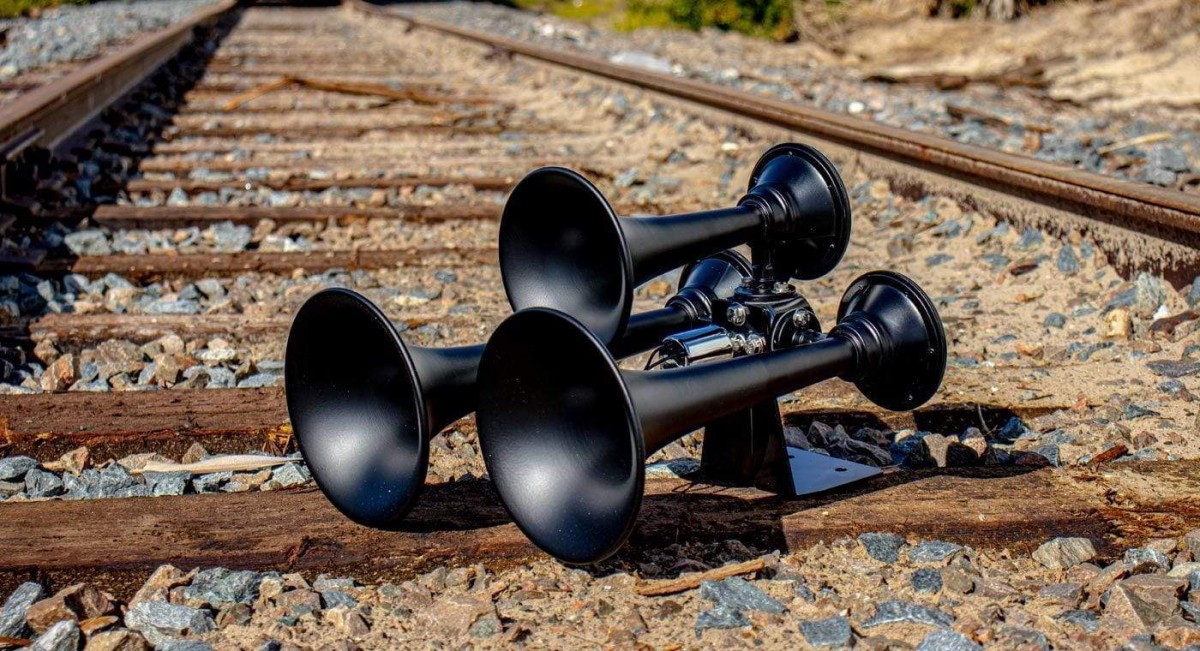

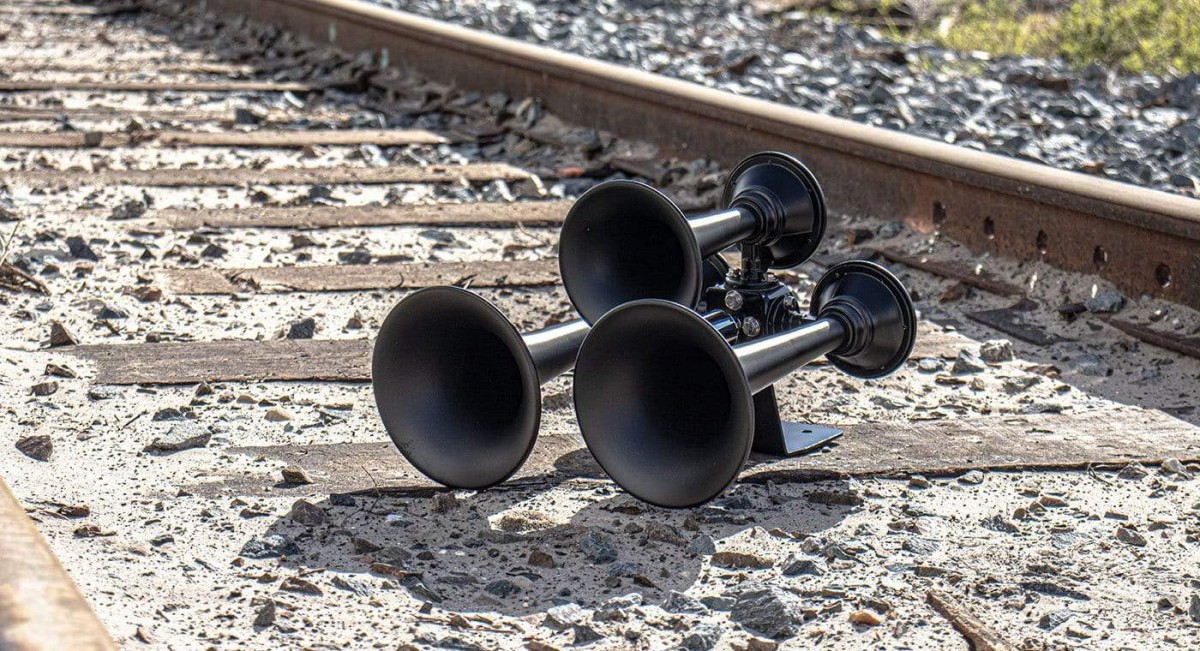

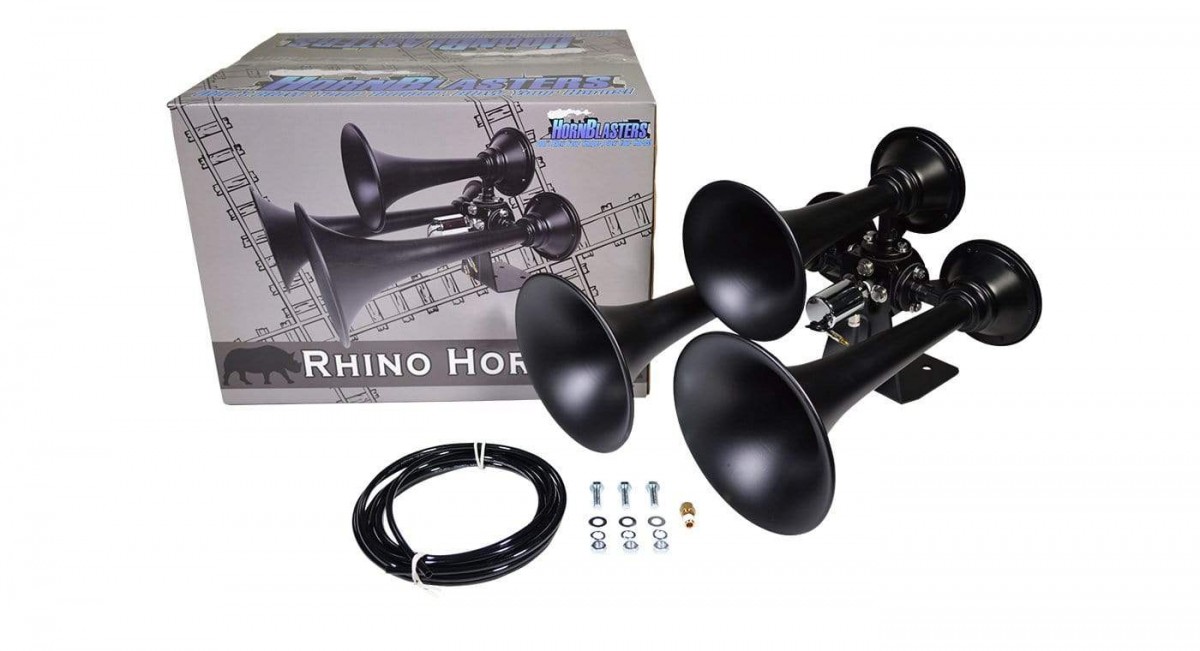

Our Rhino 544 Train Horn Kit proves that you don’t have to break the bank to bruise some eardrums. Our Rhino Train Horn unleashes a beastly loud and low train horn roar that is sure to clear out anyone in your path. Who says you need huge horns to get a huge sound? Get the massive tone you want without having to have a ton of install space with this compact copper three-chime beast. We even pre-installed the 1/4" valve on the horn manifold to save you install time.

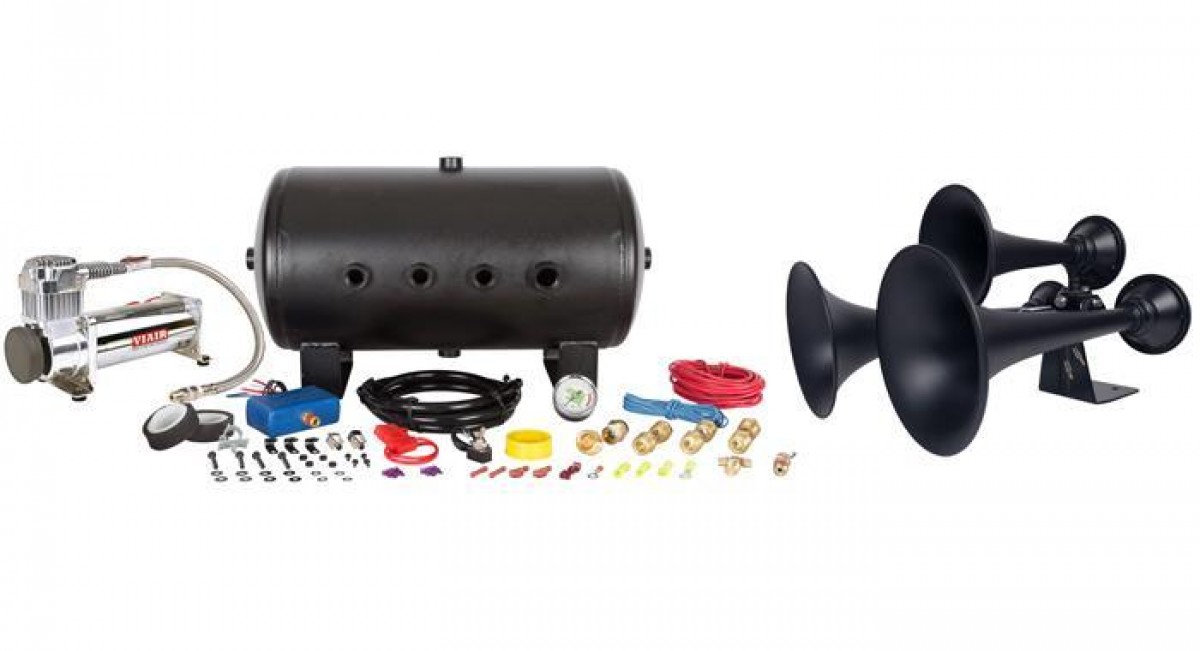

The most powerful onboard air system that you can get with our Rhino Train Horn, our HornAir 544 Onboard Air System can easily power your Rhino Train Horns along with supporting almost any pneumatic task you could come across, such as tire inflation air tools and air suspension. Powered by the powerful Viair 444C Air Compressor, our Rhino 544 Train Horn Kit has a 100% duty cycle all the way up to 100 PSI, meaning you can depend on running strong as long as you need it. Our 544 Onboard Air System will supply enough air to give your Rhino Train Horn a stunning 10 second blast time and will recharge the 5-gallon tank from 110 to 150 PSI in just 3 minutes. As with all HornBlasters kits, our Rhino 544 Train Horn Kit comes complete with all required components and detailed instructions.

  • High-efficiency & Extremely Loud
  • All-inclusive Train Air Horn Solution!
  • Heavy Duty Compressor For Faster Fills!
  • All Standard Mounting Hardware
  • Max Honk Time: 5 to 7 Seconds

  • Part Number: HK-Q3-544
  • Horn: HornBlasters Black Rhino Train Horn
  • Horn Length: 16.75" (405mm)
  • Horn Width: 15" (365mm)
  • Horn Height: 11.25" (265mm)
  • Horn Weight: 14.2lbs (6.44kg)
  • Horn Fitting: 1/4" Tube
  • Tank: HornAir 5 Gallon Tank
  • Tank Length: 20.5″ (520.7 mm)
  • Tank Diameter: 9.5″ (241.3 mm)
  • Tank Height: 11.5″ (292.1 mm) (With Legs)
  • Tank Weight: 20 lb (9.07 Kg)
  • Compressor: Viair 444C Chrome Air Compressor
  • Average Fill Time: 8 Min 10 Sec, from zero psi
  • Voltage: 12 volts DC
  • Air Flow: 1.67 CFM
  • Max Amperage: 19 amps
  • Maximum Duty Cycle: 100% @ 100 PSI , 50% @ 200 PSI
  • Maximum Working Pressure: 200 PSI
  • Compressor Length: 11.5″ (292.1 mm)
  • Compressor Width: 4.30″ (109.22 mm)
  • Compressor Height: 6.5″ (165.4 mm)
  • Compressor Weight: 11 lb (4.99 Kg)

5-GALLON AIR TANK DIMENSIONAL DRAWING
