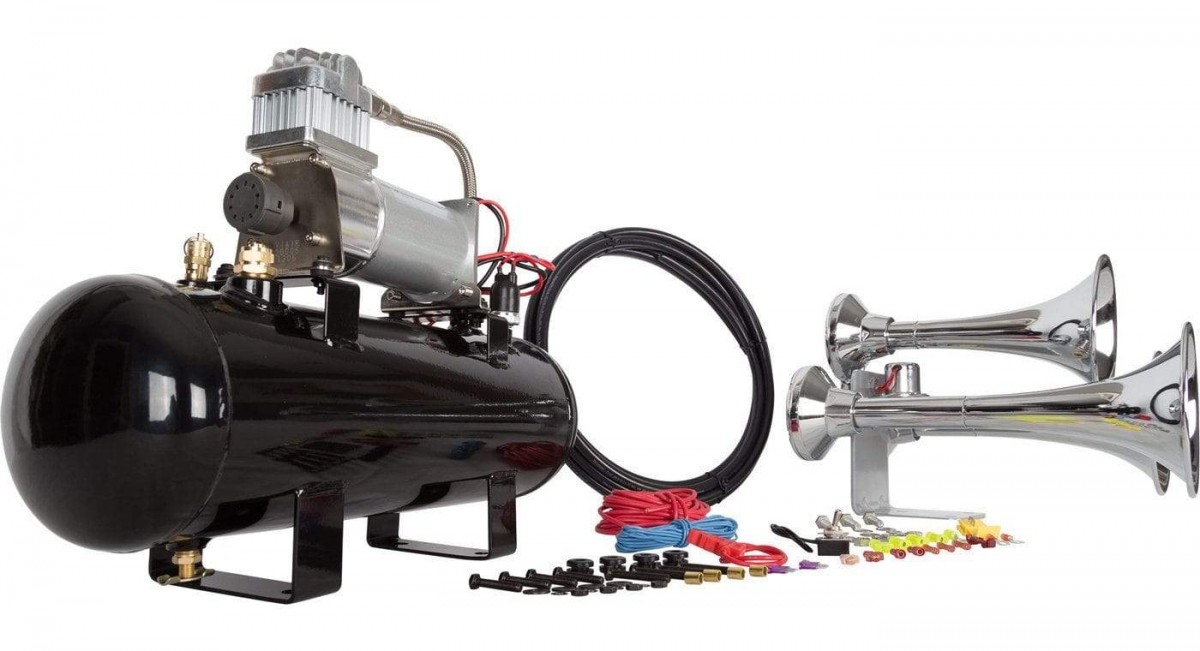

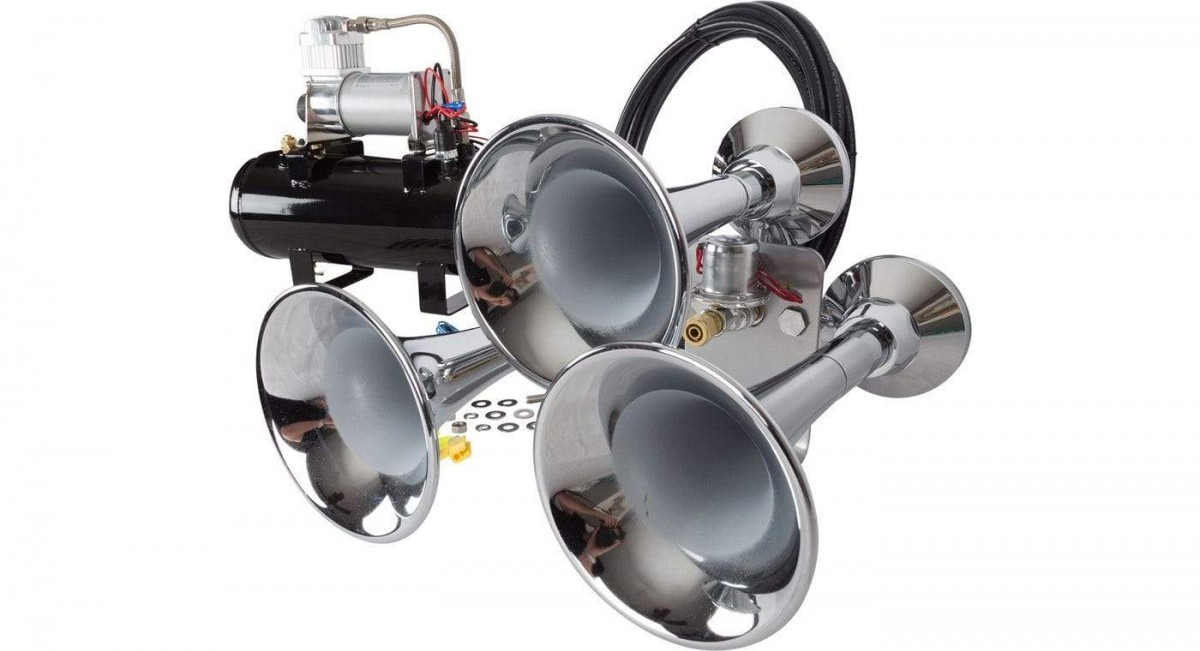

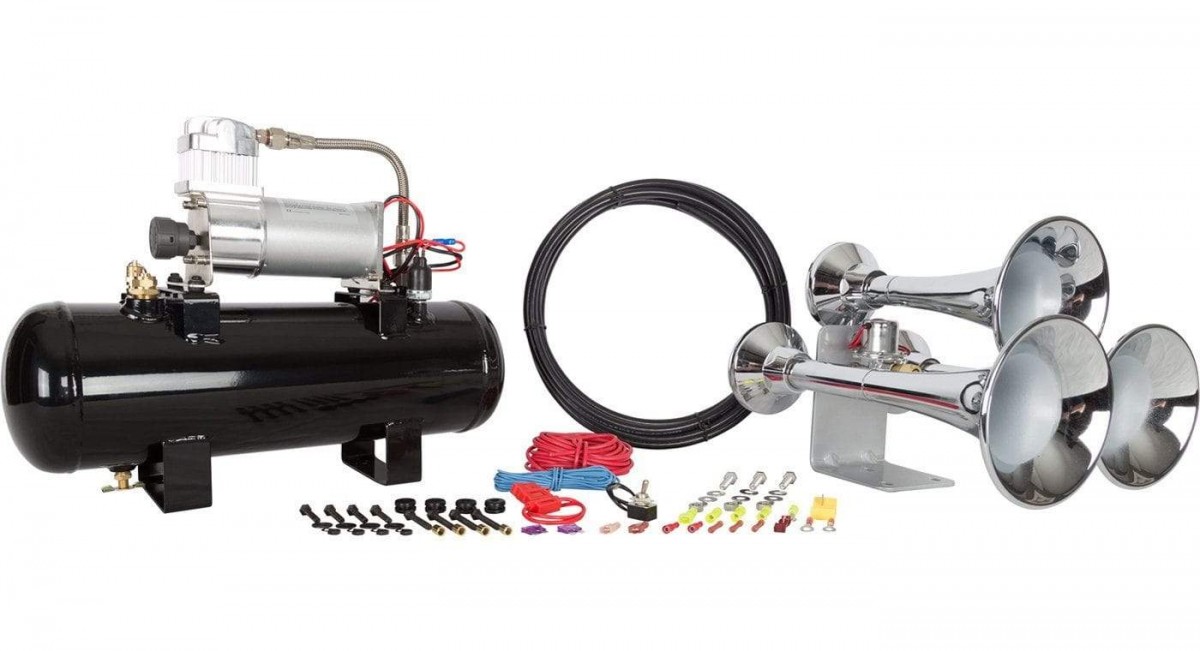

We love bringing a huge train horn sound to your daily driver. With our Outlaw Chrome 228H Train Horn Kit, it has never been easier! You get one of our loudest train horns powered by one of our most compact and cost-effective air-source units, perfect for installs with tight space or a limited budget. With most of the kit already pre-plumbed and pre-wired, our Outlaw Chrome 228H train horn kit is an ideal beginner kit, with the same power and quality of our high-end kits.

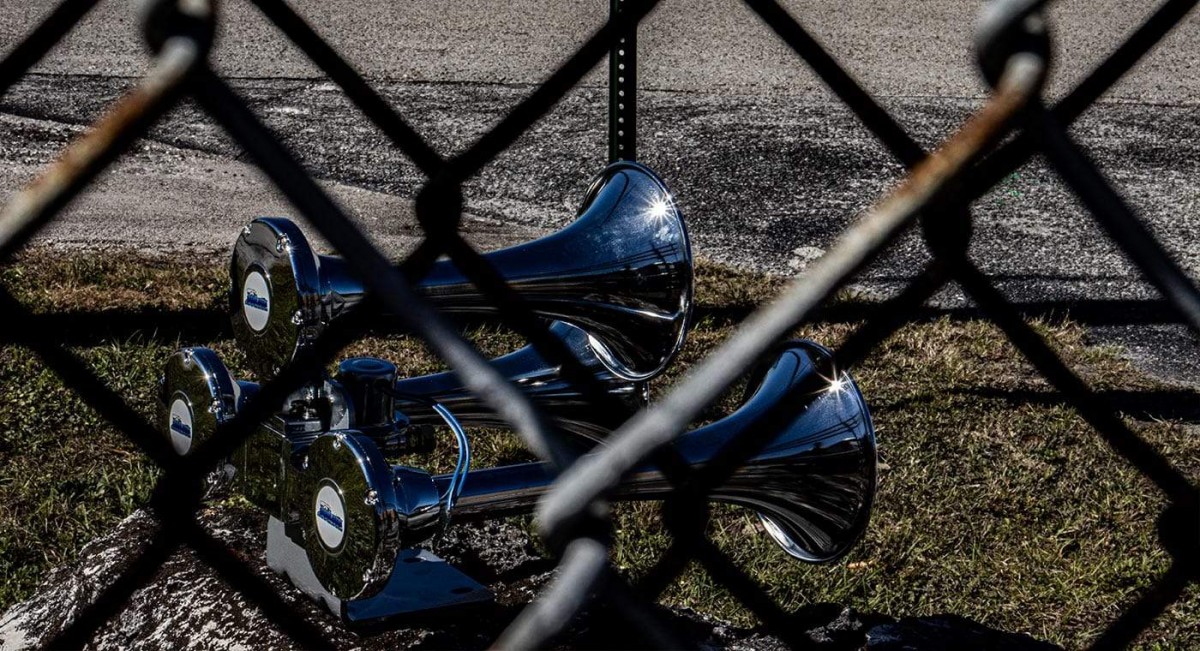

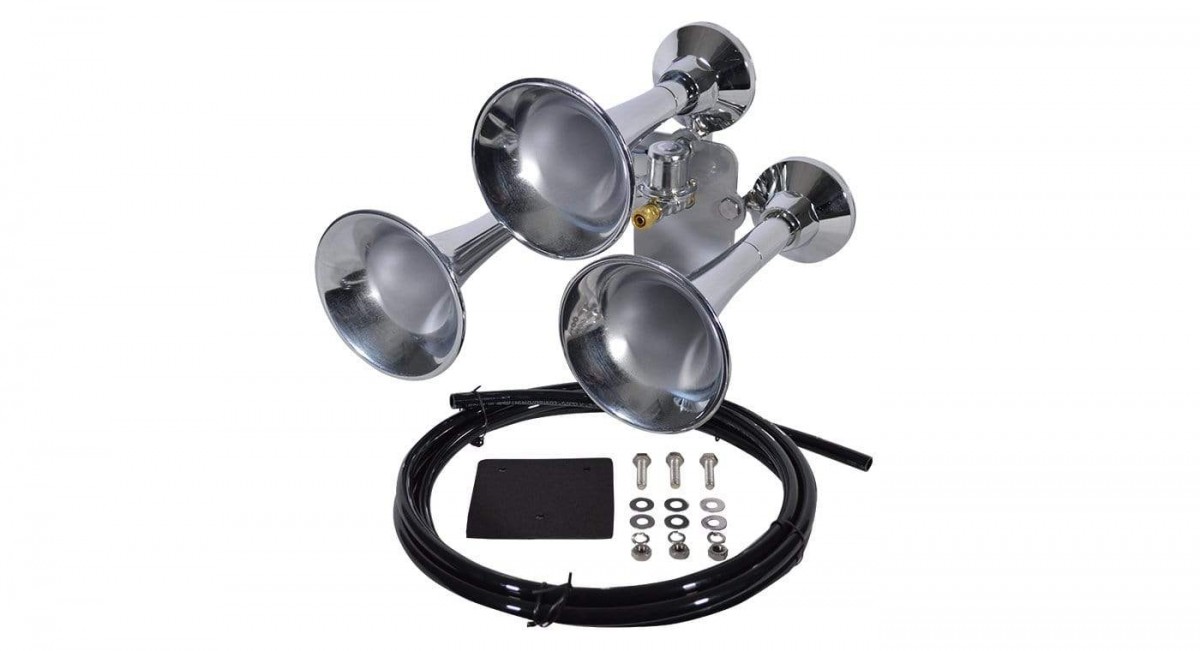

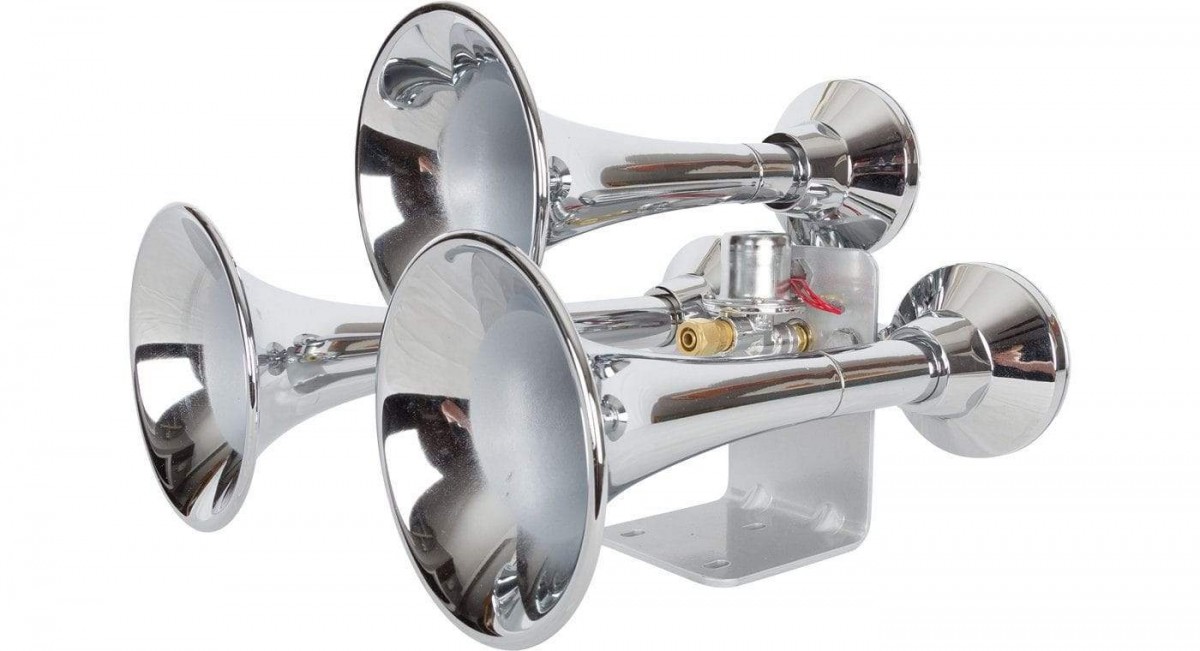

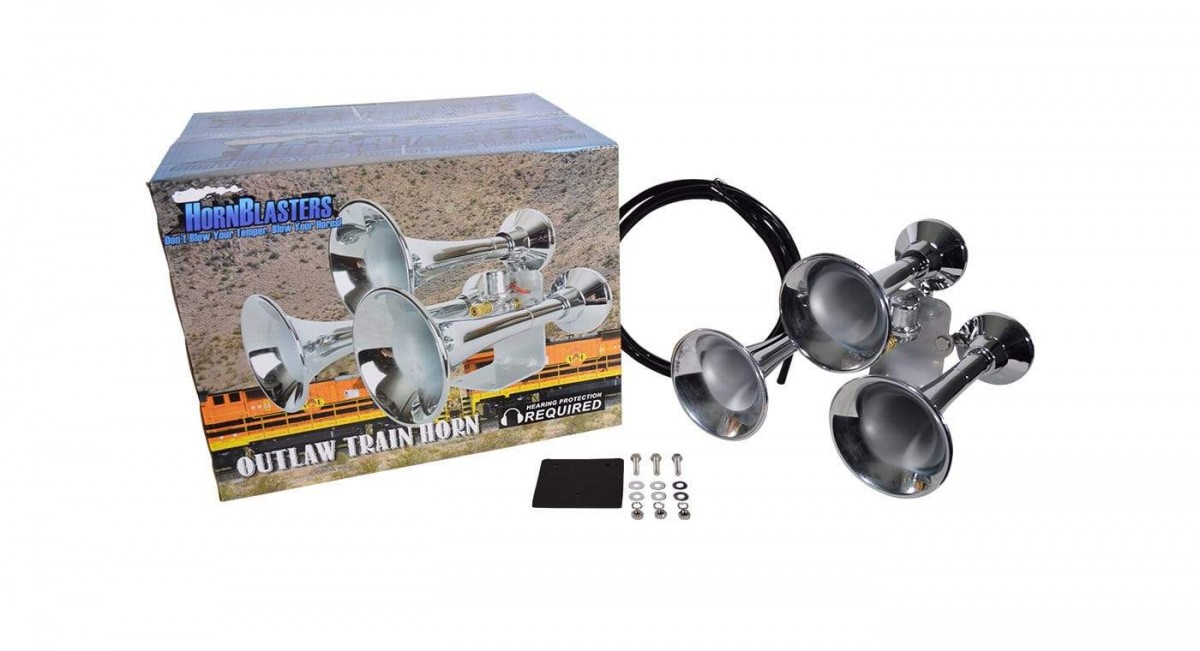

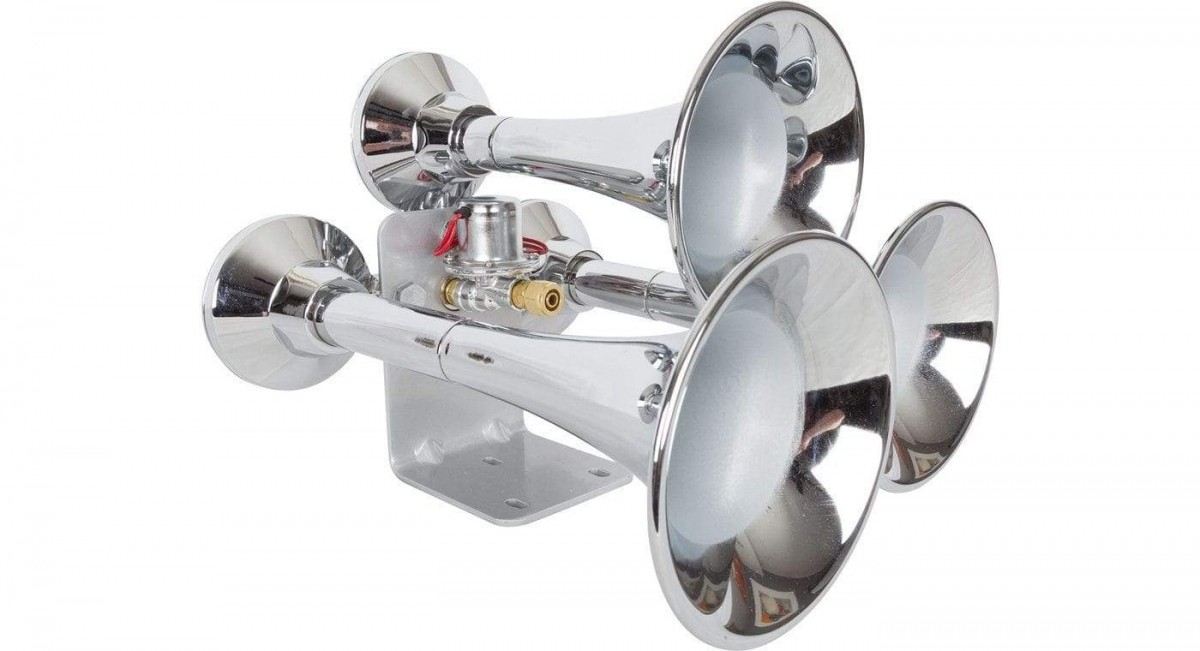

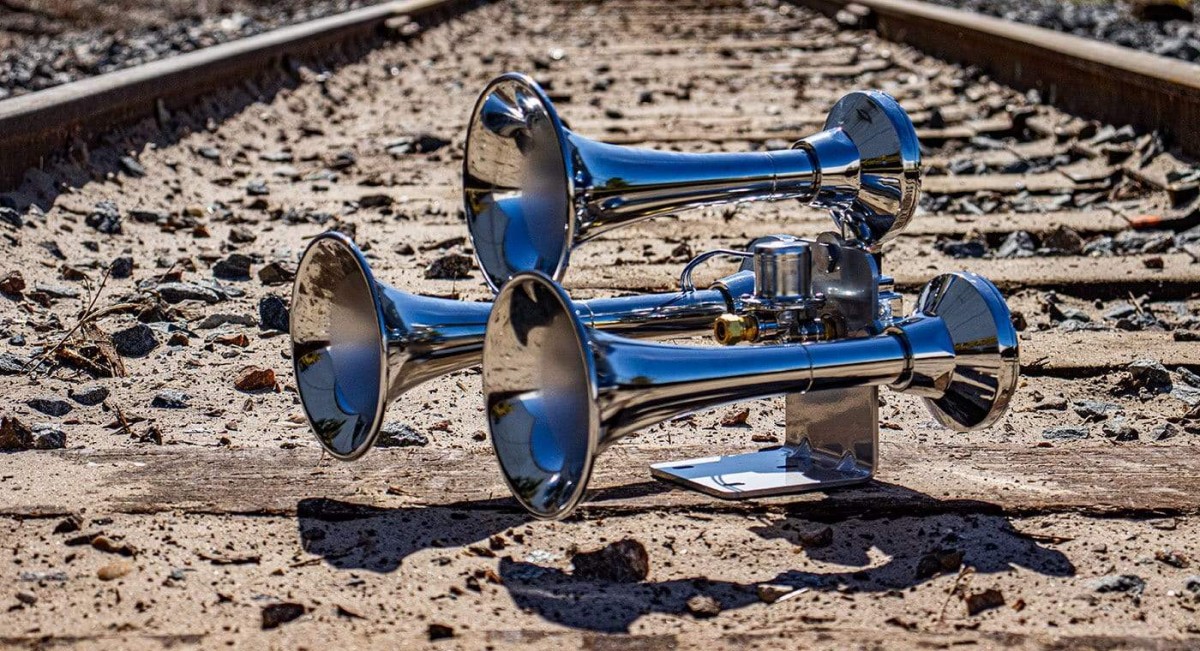

It’s hard to beat the massive sound that our Outlaw Chrome Train Horn can produce. As a three-chime metal horn with a flashy chrome finish, our Outlaw train horn will make sure you get people's attention with its looks as well as its sound. Our Outlaw train horn comes with the 3/8" valve already pre-installed, ensuring that you get out on the road and honking ASAP!
Our 228H Air Source Unit powering our Outlaw train horns might have a small install footprint but packs heaps of power. Our 2-gallon tank provides enough air to get 5 seconds of honk time out of your Outlaw train horns, and the Viair 280C Air Compressor mounted to the tank can recharge the system from 110 to 145 in only 1 minute and 20 seconds! This system comes pre-plumbed with all the fittings you need and pre-wired, so installation is fast and simple.
As with all HornBlasters kits, our Outlaw Chrome 228H train horn kit comes complete with all required components and detailed instructions.

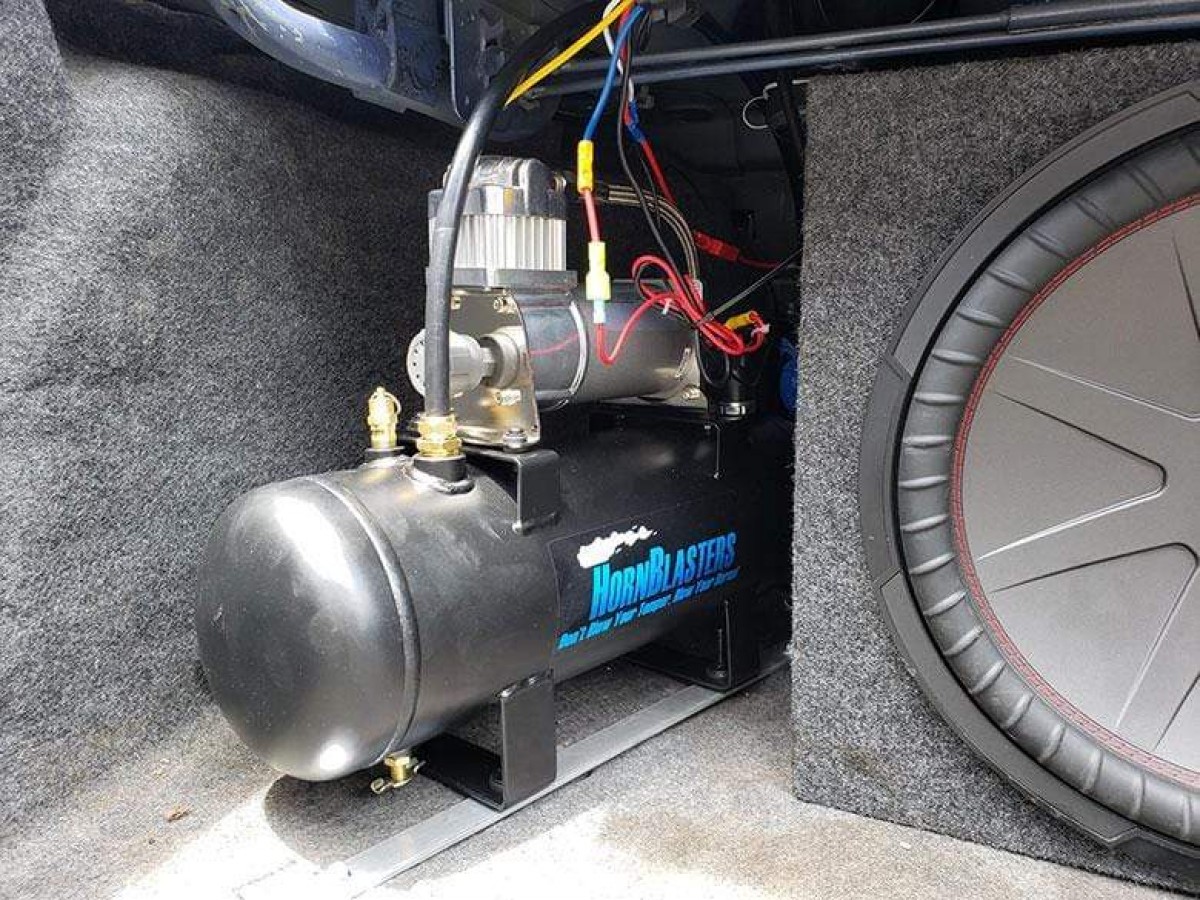

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
