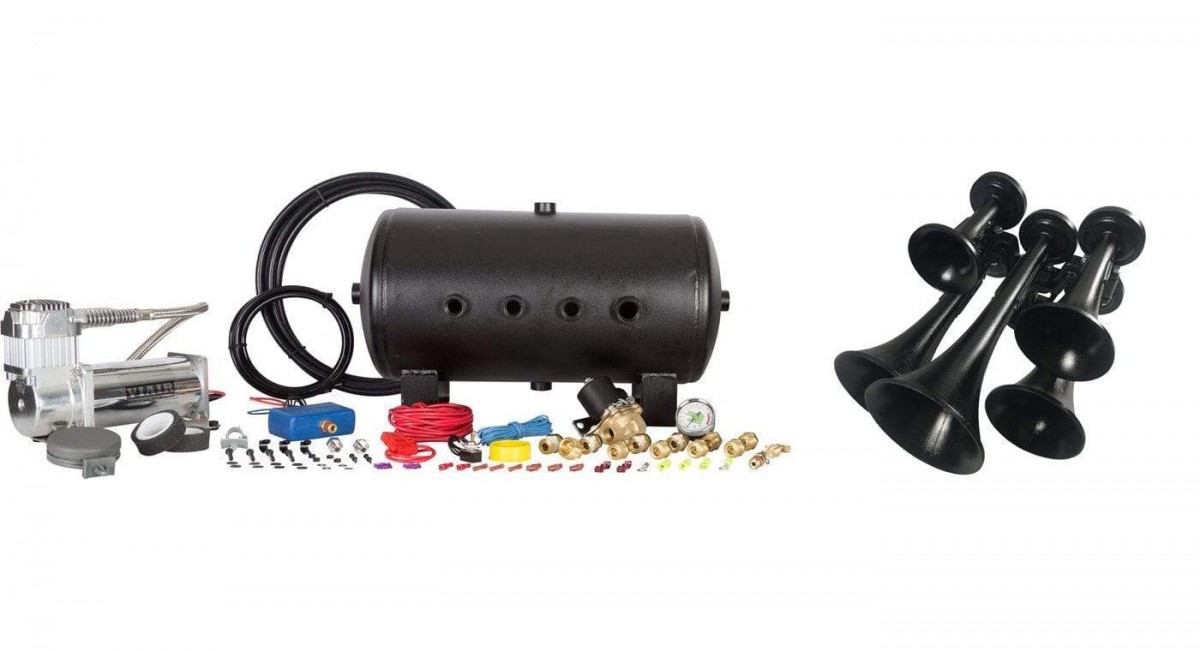

Made for anyone that wants a loud, deep and stylish train horn. The HornBlasters Nathan AirChime P5 540 Train Horn Kit gives you everything you need to give your ride a system that even the most hardcore train horn enthusiast would envy.
The Nathan Airchime P5 Train Horn is a reconditioned and quality tested authentic train horn taken off of a retired diesel locomotive. First made popular in the 1970s, the Nathan P5 Train Horn gives you that classic train horn look and sound. The Nathan P5 train horn is a sand-casted aluminum horn, built to last and withstand the elements. If you are going for the real deal with your train horn, this is definitely the kit for you!

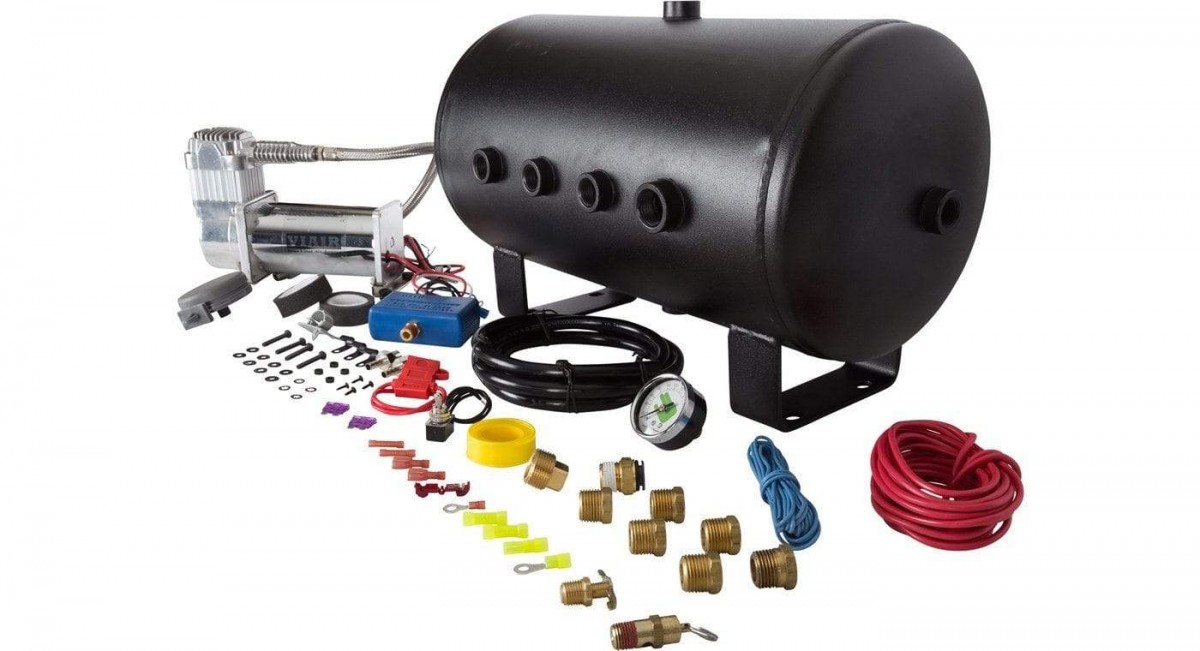

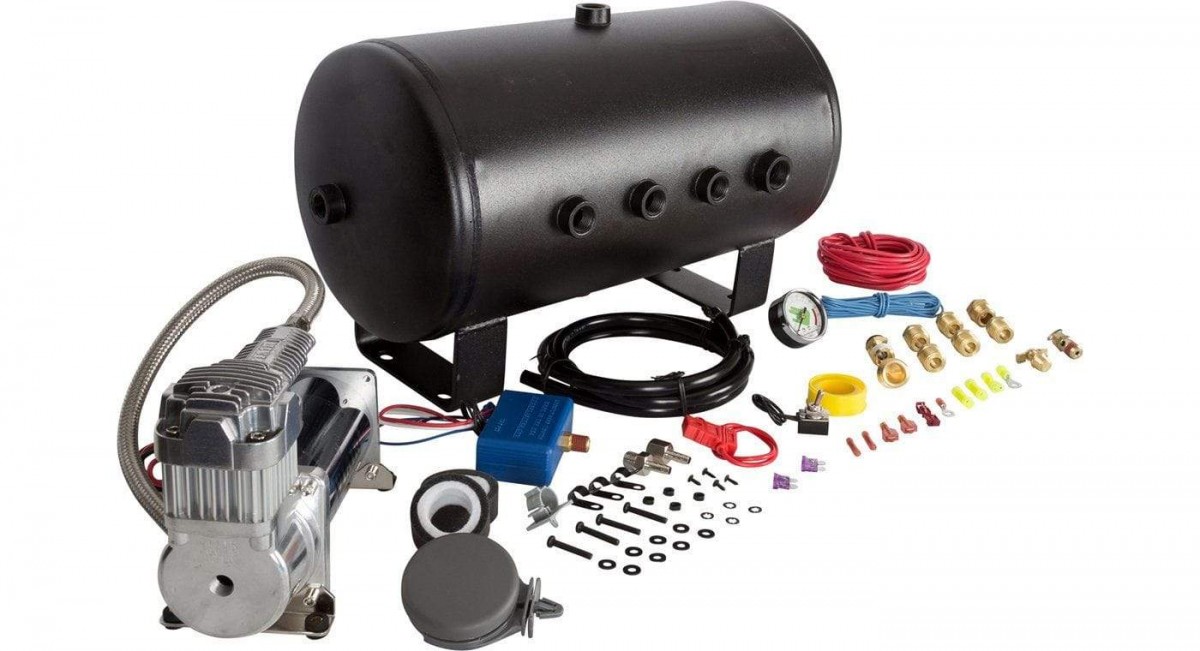

We bundled this beast of a horn with our HornAir 540 Onboard Air System to give it all the power it needs to be heard from miles away. In addition to giving you 5 seconds of continuous blast time for your Nathan AirChime horns, this kit can also support other onboard air applications such as tire inflation in an emergency situation. Our 5 gallon, 8 port tank is powered by a Viair 400C fast-fill compressor, giving this kit one of the fastest fill times of 1 minute and 30 seconds while only pulling 28 amps.
While this kit gives you everything you need to get up and going, make sure to pick up our tire inflation kit, wireless remote, and mounting bracket to get the most out of one of the best train horn kits on the market!
***All Nathan Airchime Horns have a 7-10 Business Day Lead Time!!***
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 2 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 45 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
