NATHAN AIRCHIME K5LA 540 TRAIN HORN KIT HK-K5-540

Return to Shopping

Product Description

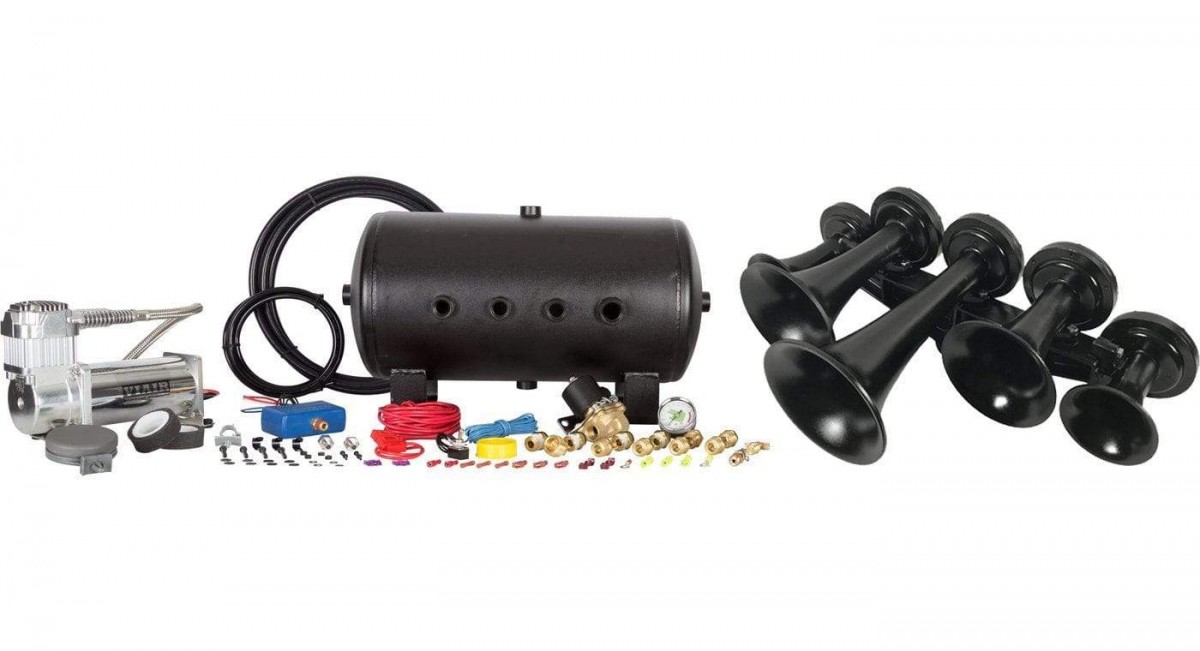

You’ve decided to get a train horn, why not get the best and loudest train horn that you can buy? With our Nathan AirChime K5 540 Train Horn Kit, you get the gold standard of train horns, the Nathan AirChime K5LA, along with our fastest filling onboard air system to date! You don't compromise anything else on your ride, why settle for anything less than the best train horn kit available?

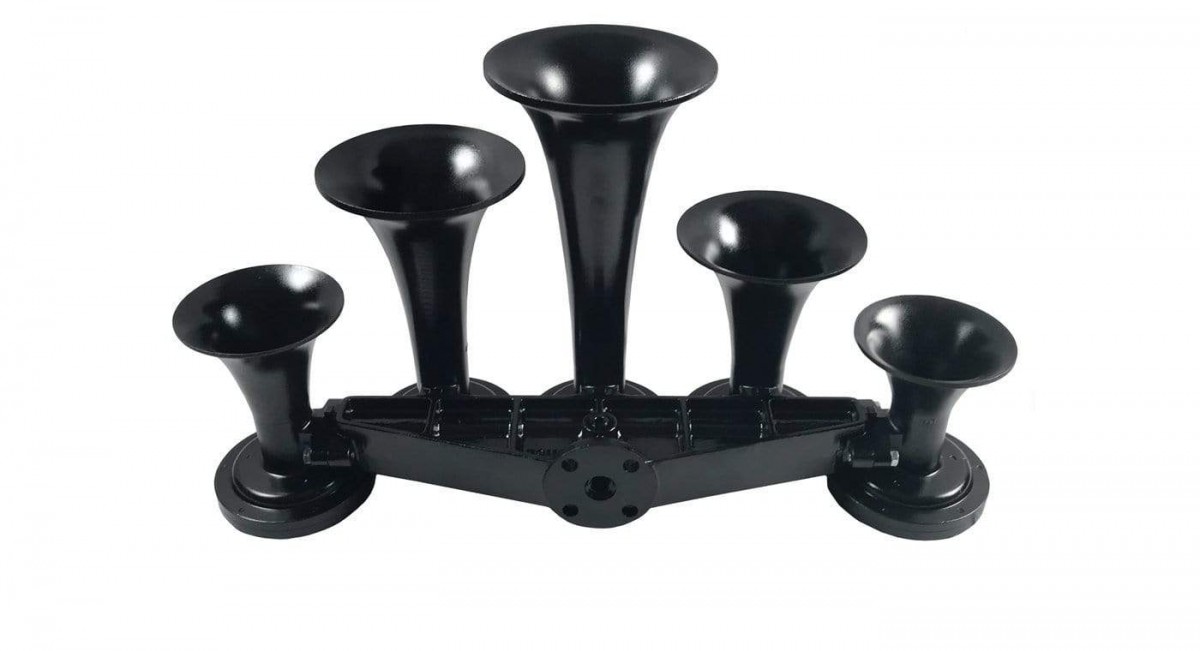

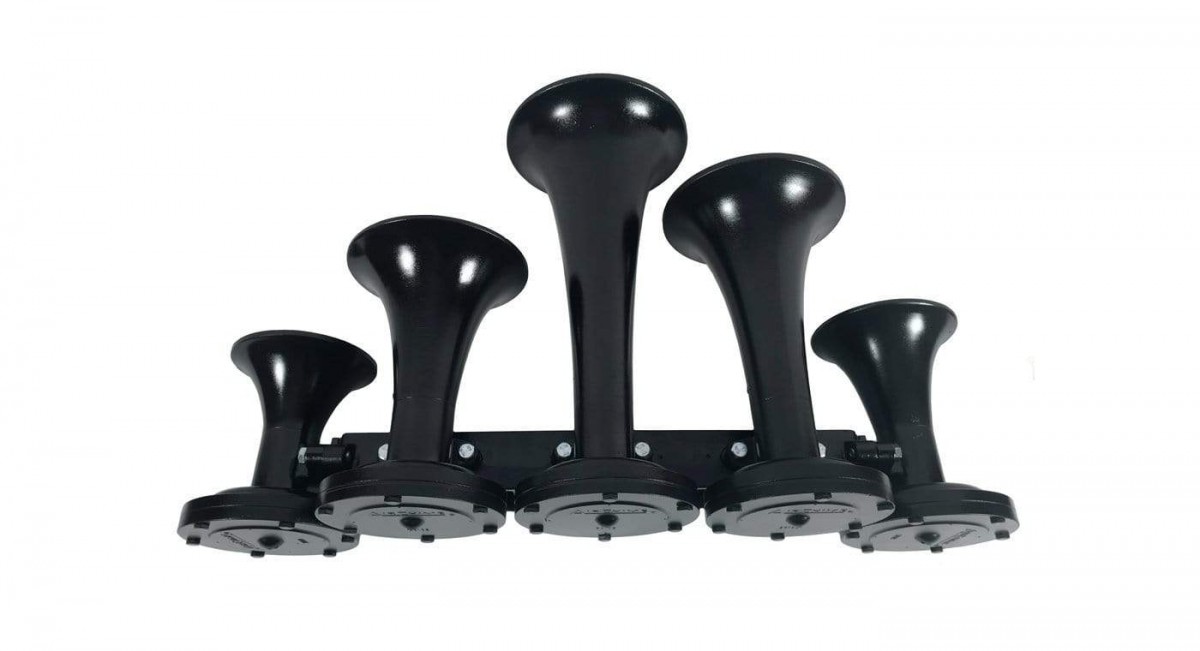

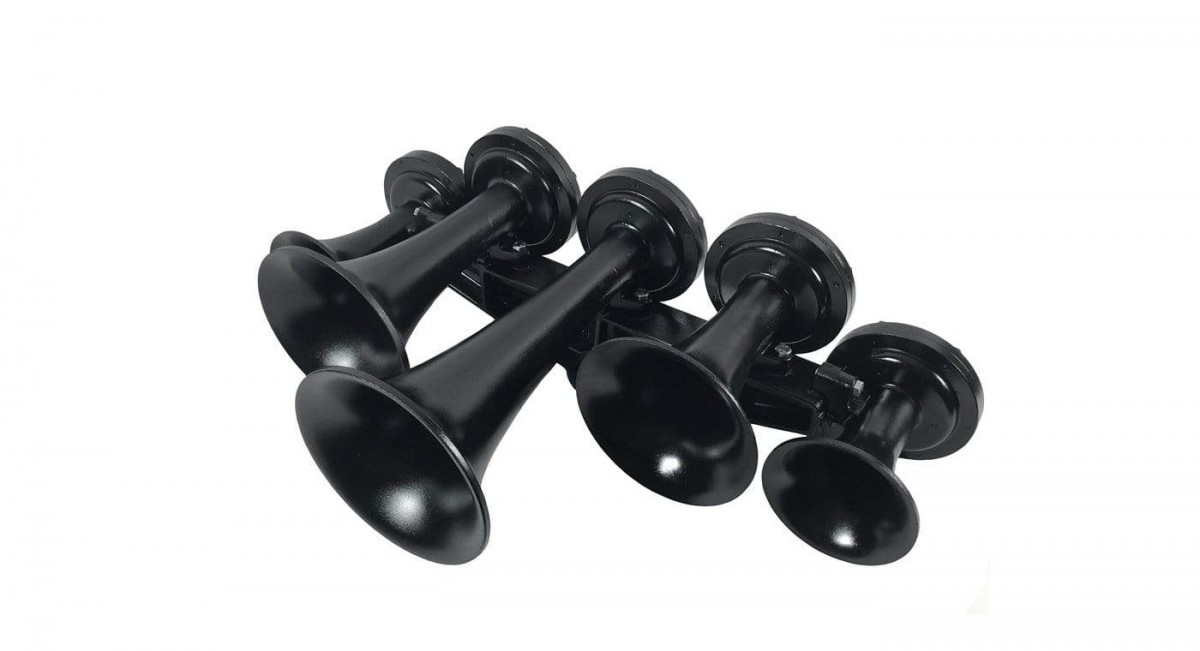

Our Nathan K5LA Train Horn Kit includes the Godfather of train horns, the legendary Nathan AirChime K5LA Train Horn. Simply put, these are the loudest and highest quality train horns that exist. This 5-chime die-cast beast dates all the way back to the '70s, has been tried and tested by the elements for decades and is still the most widely used train horn today.

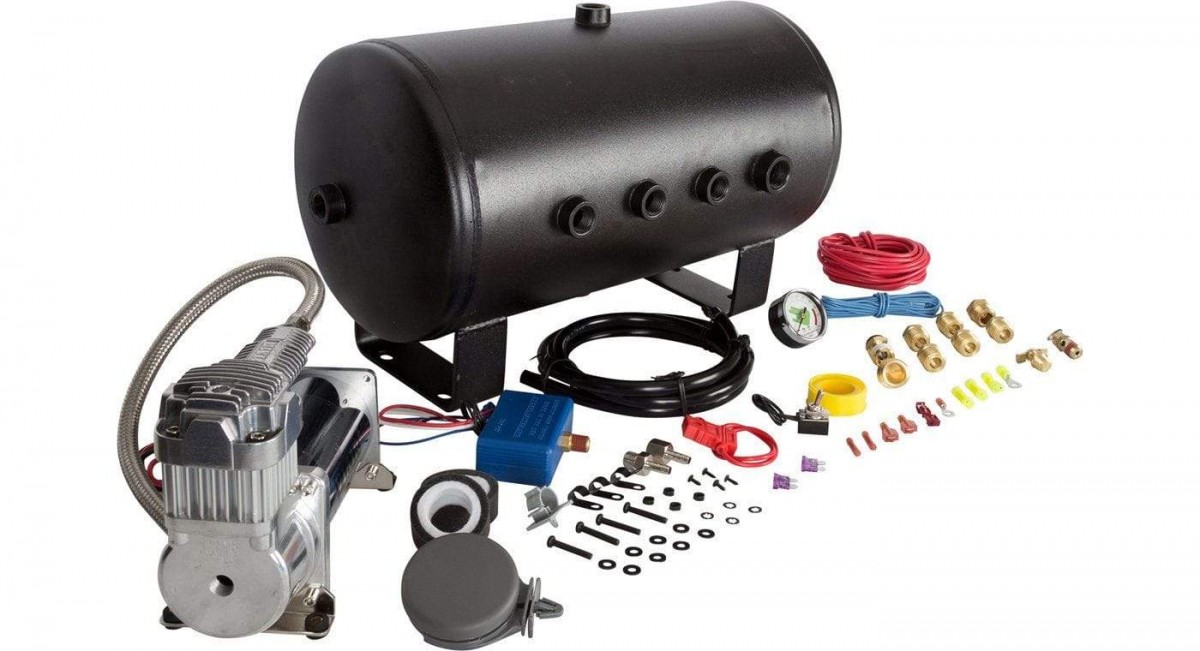

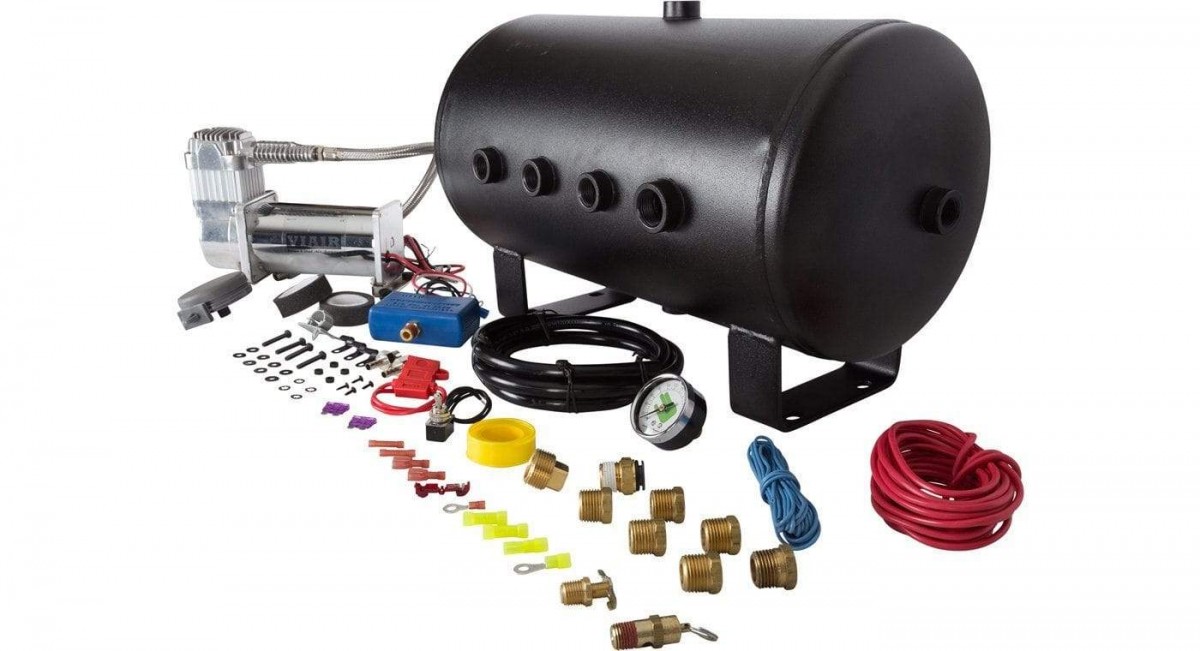

Of course, a train horn of such epic proportions requires an onboard air system of the same caliber and that's exactly what you get with our Nathan AirChime K5 540 Train Horn Kit. Our Horn Air 540 Onboard Air System that we paired with the Nathan AirChime K5’s is our fastest filling system to date. Our Black 5-Gallon 8-Port Air Tank will supply enough air for you to blast your Nathan AirChime K5LA Train Horn for up to 5 continuous seconds before needing to refill the tank. Sporting a Viair 400C Air Compressor, our Nathan K5LA Train Horn Kit is the fastest filling system we have to date, able to refill from 110-145 PSI in only 1 minute and 40 seconds!

Like all HornBlasters Kits, our Nathan AirChime K5 540 Train Horn Kit includes all required hardware and instructions.

  • Railroad-Use Train Horn!
  • Heavy Duty 400C Air Compressor
  • Extra Large Five Gallon Air Tank
  • Max Honk Time: 5-7 Seconds

  • Part Number: HK-K5-540
  • Horn: Nathan AirChime K5LA (K5 Low Mount American Tune)
  • Material: Cast Aluminum
  • Horn Length: 19″ (412.75 mm)
  • Horn Width: 29.75″ (755.65 mm)
  • Horn Height: 9.25″ (234.95 mm)
  • Horn Weight: 26.75 lb (12.13 Kg)
  • Horn Port: ½″ NPT
  • Tank: HornAir 5 Gallon Tank
  • Tank Length: 20.5″ (520.7 mm)
  • Tank Diameter: 9.5″ (241.3 mm)
  • Tank Height: 11.5″ (292.1 mm) (With Legs)
  • Tank Weight: 20 lb (9.07 Kg)

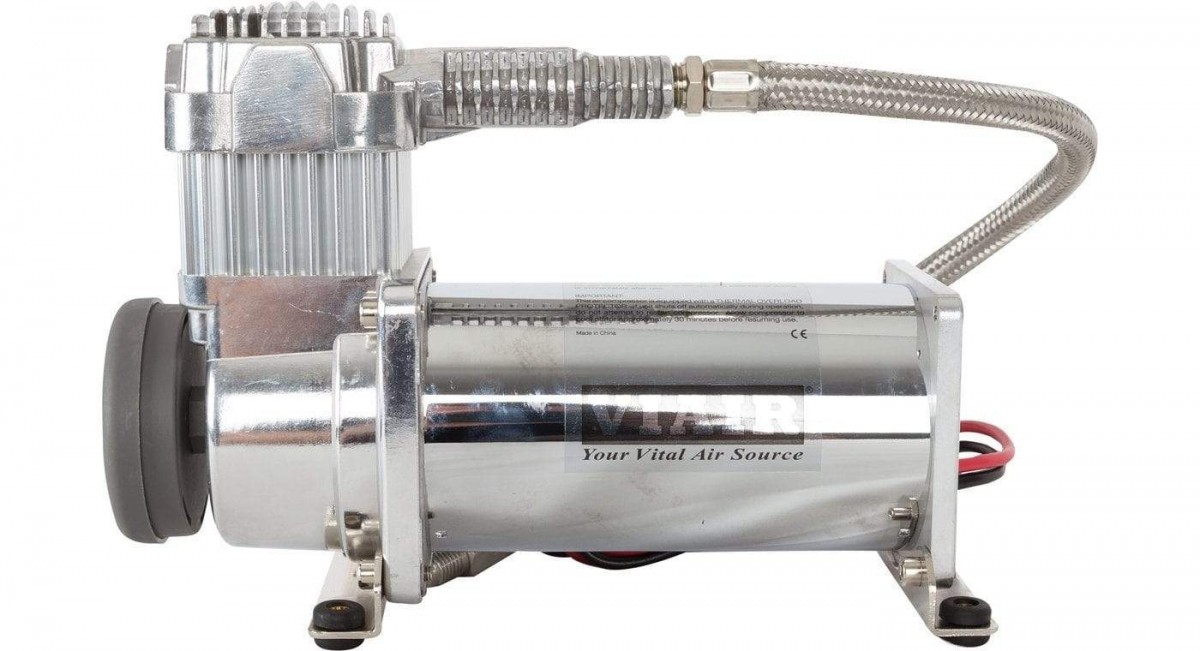

  • Compressor: Viair 400C Air Compressor
  • Average Fill Time: 1 Min 30 Sec
  • Voltage: 12 volts DC
  • Air Flow: 2.54 CFM at Free Flow
  • Max Amperage: 26 amps
  • Maximum Duty Cycle: 33% @ 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Compressor Length: 9.0″ (228.6 mm)
  • Compressor Width: 4.0″ (101.6 mm)
  • Compressor Height: 7.05″ (179.07)
  • Compressor Weight: 8.00 lb (3.63 Kg)

5-GALLON AIR TANK DIMENSIONAL DRAWING

PSI CFM A BAR LPM A
0 2.62 16 0 74.0 16
10 2.39 18 1.0 65.0 20
20 2.21 20 2.0 60.0 23
30 2.11 22 3.0 56.0 25
40 2.01 24 4.0 53.0 27
50 1.93 25 5.0 49.0 28
60 1.84 26 6.0 46.0 28
70 1.73 27 7.0 42.0 28
80 1.65 27 8.0 38.0 28
90 1.52 27 9.0 35.0 27
100 1.45 27 10.0 31.0 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26

* Supply Voltage: 13.8 Volts

5.0 GALLON TANK FILL RATE
0 to 150 PSI 4 min. 50 sec. (± 10 sec.)
110 to 150 PSI 1 min. 40 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts
