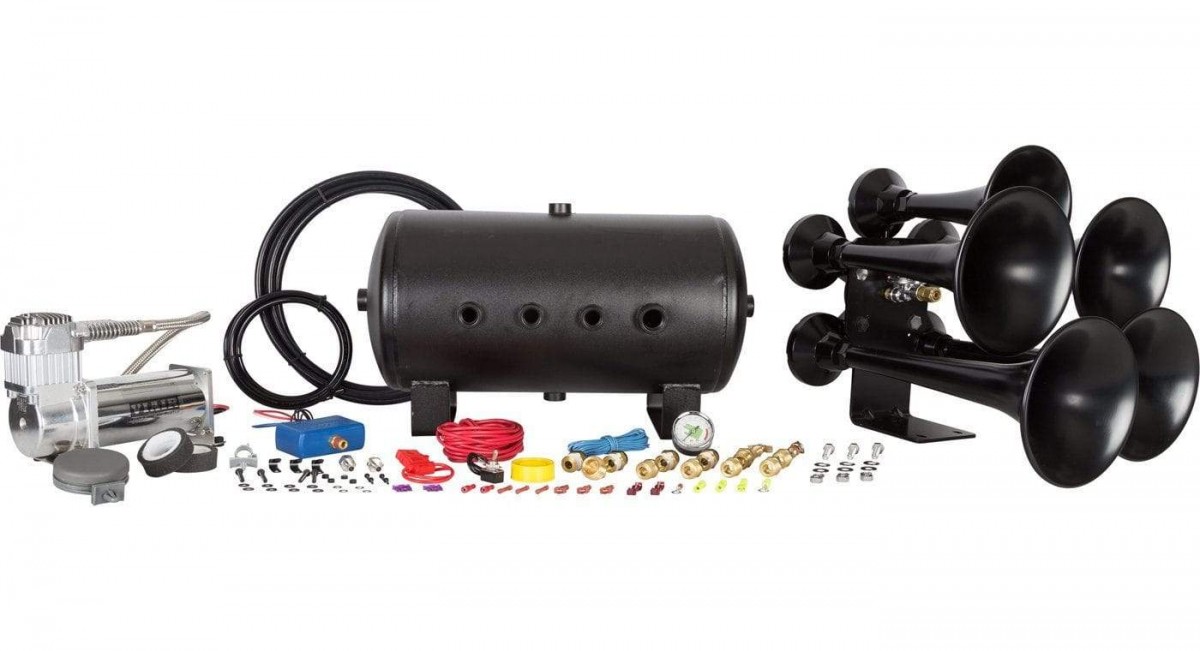

Wanting a thunderous train horn with a lightning-fast air system and a ridiculously long blast time? Unleash a torrent of train horn volume on anyone in your path with our Katrina 540 Train Horn Kit! Our Katrina 540 Train Horn Kit delivers our fastest 5-gallon onboard air system along with one of the loudest 5-Chime horns on the market.

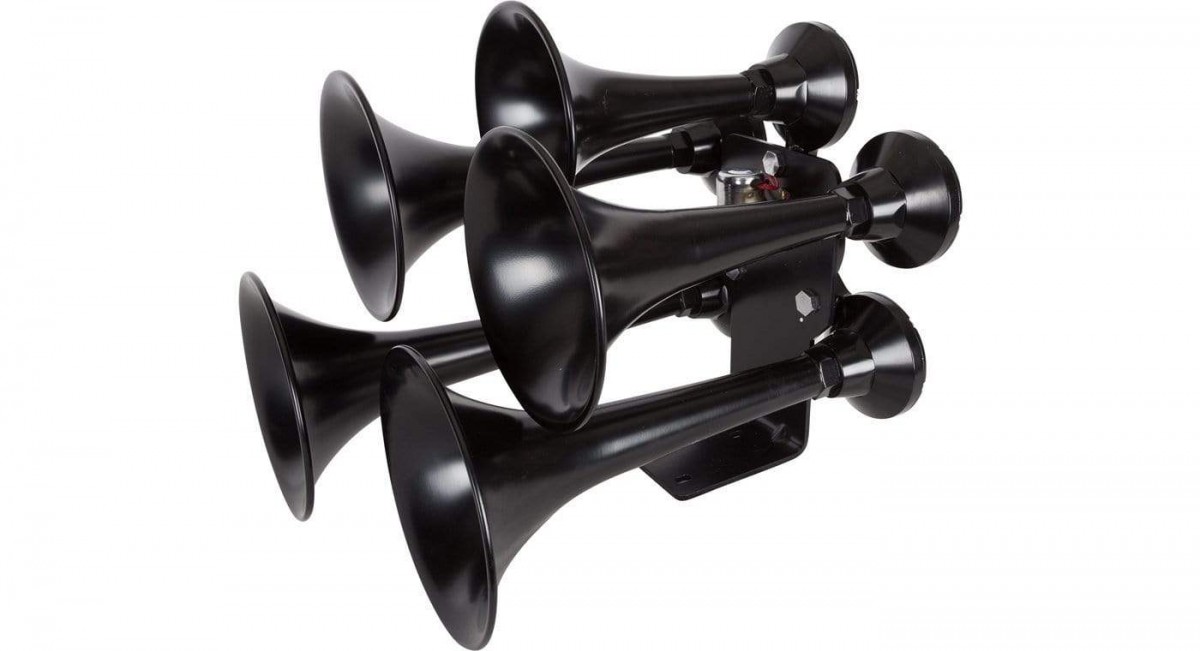

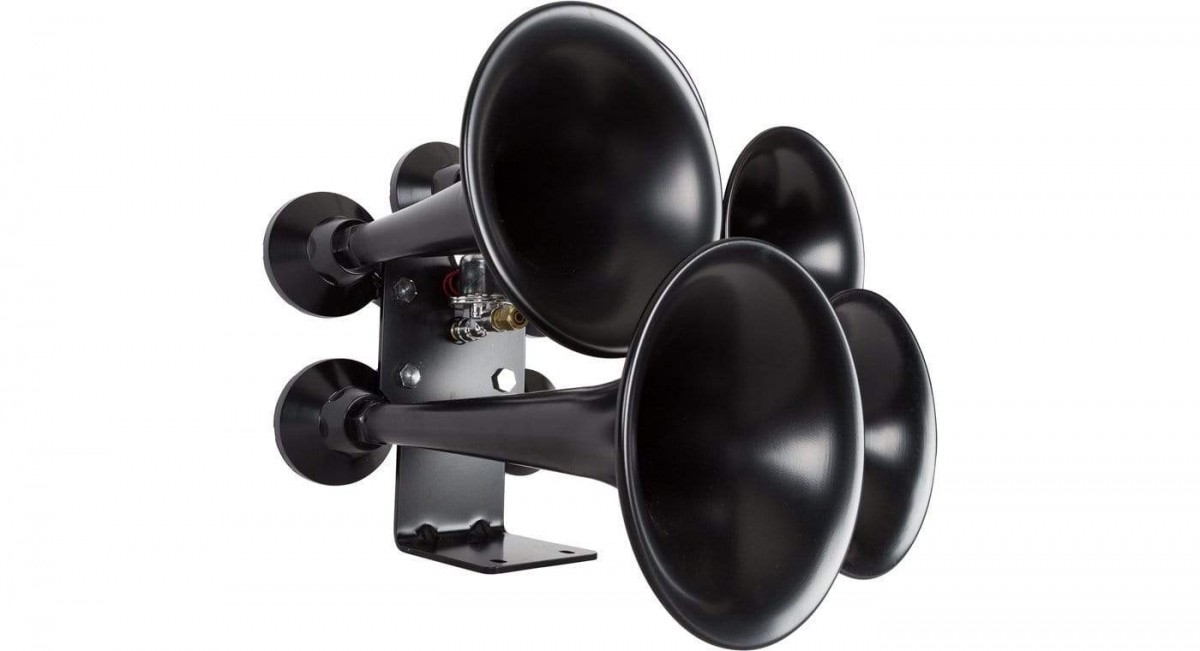

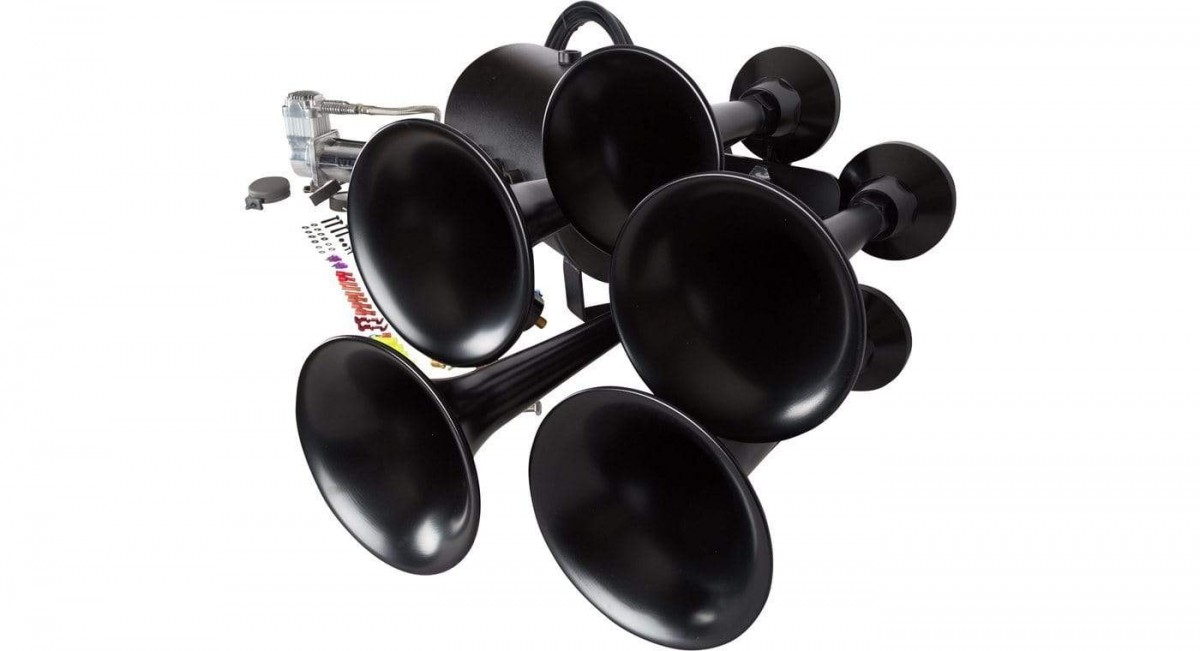

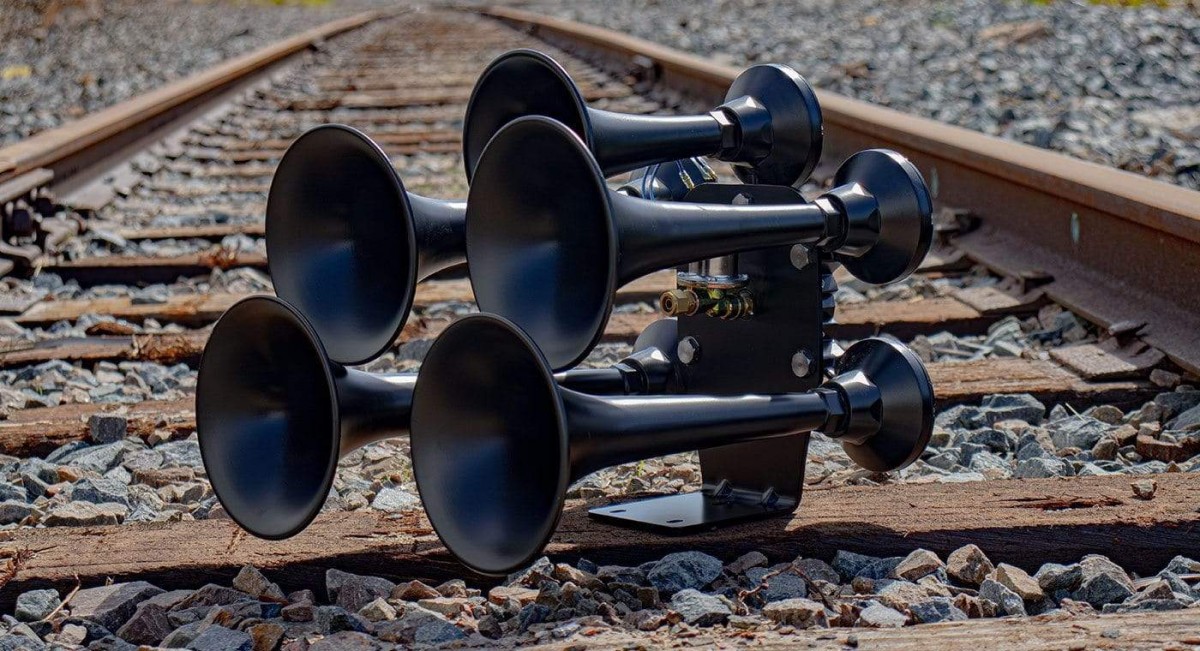

Our Katrina 540 Train Horn Kit features our Katrina Train Horn: five large blacked-out metal bells on a metal mount. Five distinct and low train horn tones come together to produce a blast that is sure to blow anyone away. Installation is a breeze as our Katrina Train Horn comes with our 3/8" Solenoid Valve pre-installed on the manifold! Our Katrina Train Horn comes in a stealth black so you only draw attention when you set them off!
We paired our Katrina Train Horns with our fastest onboard air system to date. Our HornAir 540 Onboard Air System comes with our massive 5-gallon Black 8-Port Air Tank to provides enough air to give your Katrina Train Horn up to 10 continuous seconds of blast time. Our Katrina 540 Train Horn Kit features the lightning-fast Viair 400C Air Compressor, giving it a recharge time from 110-150 PSI of only 1 minute and 40 seconds! As with all Hornblasters kits, our Katrina 540 Train Horn Kit comes complete with all hardware and detailed instructions.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
