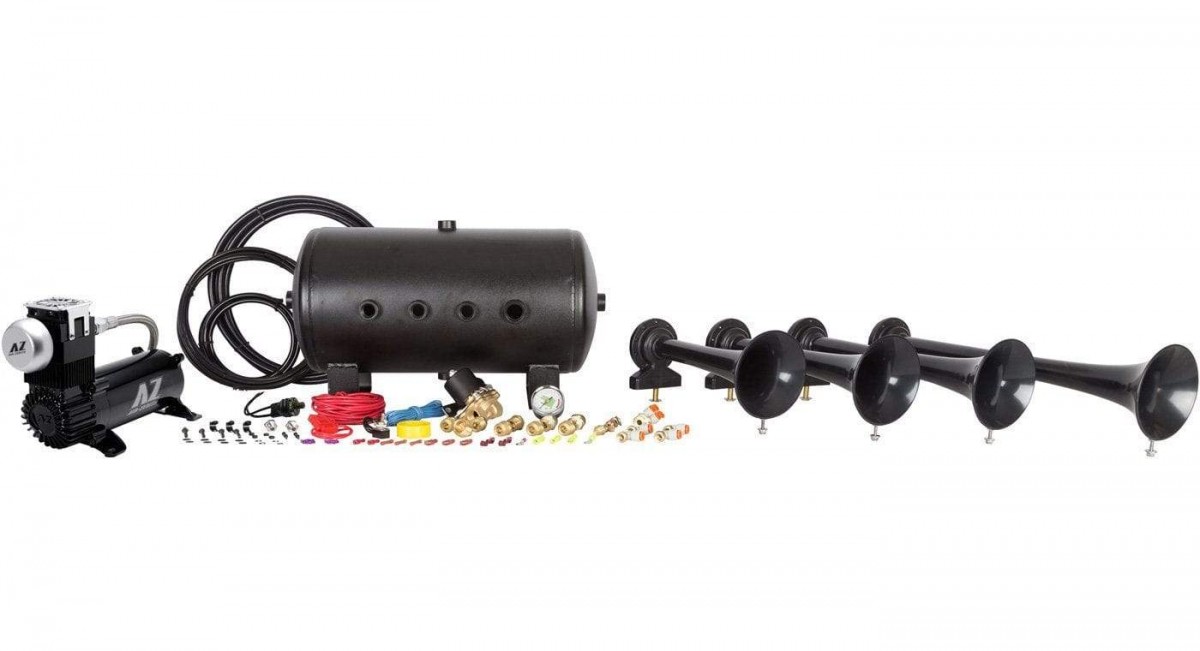

Designed for the person that loves to blow their horn for an outrageous amount of time, our Conductor’s Special fast-fill 5OB2 train horn kit gives you all the air you would ever need to blast your heart out! It's also one of the fastest recharging kits we sell. Want to have the ability to blast your train horn for 10-12 seconds straight? This is the kit for you!

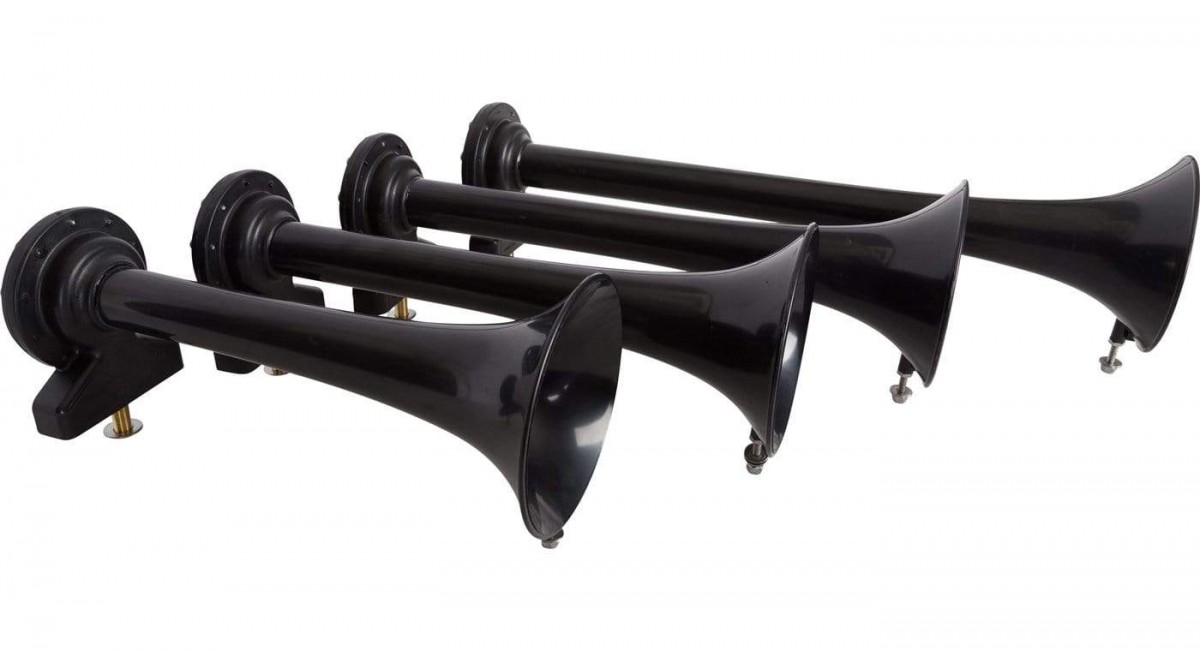

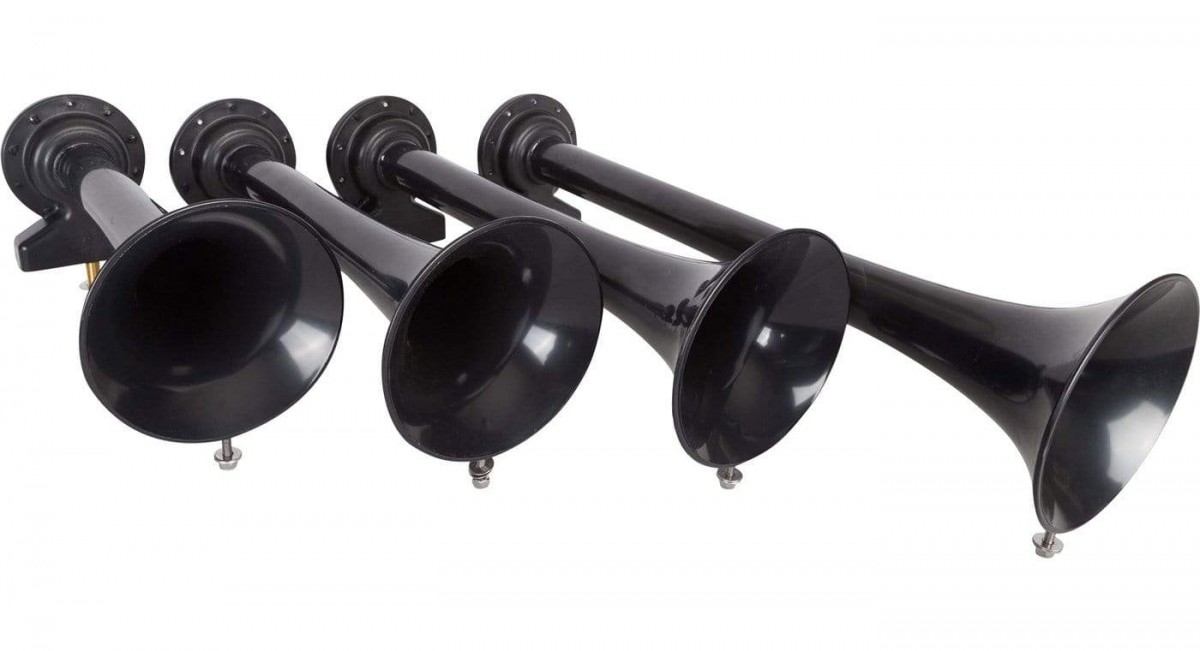

The 5OB2 kit was designed for use with our Shocker XL train horns to bring you the full power and tone of an actual locomotive. Our horns are constructed from an ultra-durable fiberglass-reinforced ABS composite and our diaphragms are made from stainless steel. We also stand behind them with a lifetime warranty against manufacturer defects. Our Conductor’s Special 5OB2 train horn kit gives you one of the loudest, most reliable, and easy to install train horns you can buy.

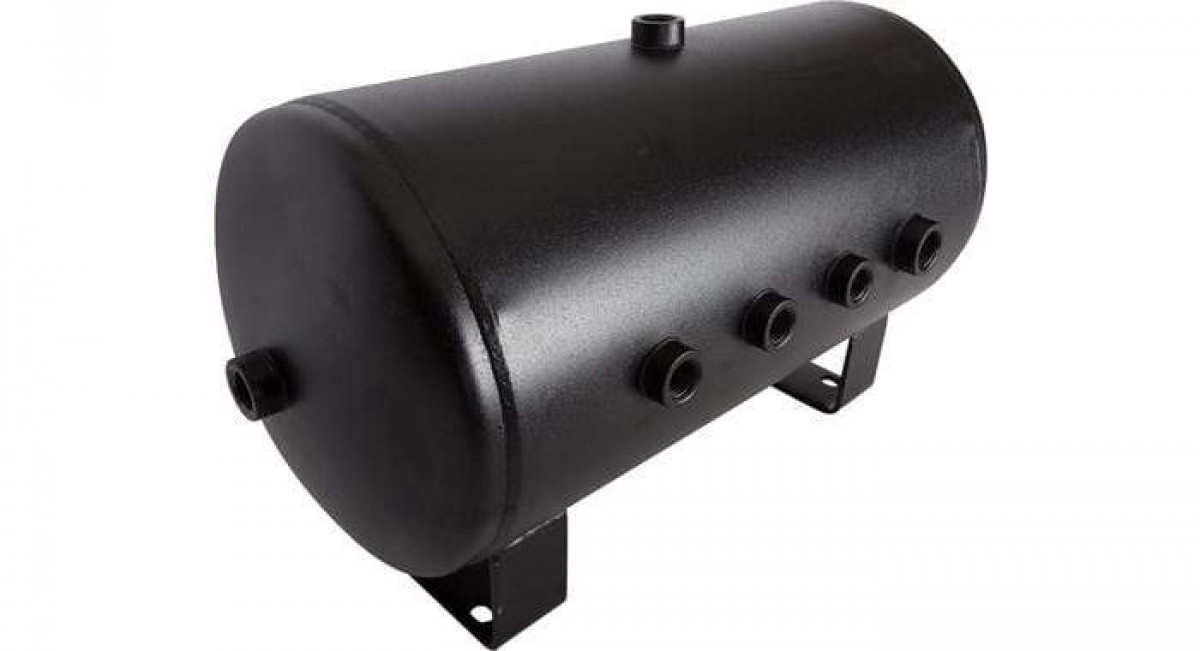

Taking center stage in this kit is our HornAir 5OB2 Onboard Air system. Our 5-gallon 8-port air tank gives you enough air to honk for as long as 12 seconds! That's also enough capacity to give you plenty of onboard air in case of a road emergency that requires you to inflate a tire or to use for air tools for example. Our Conductor’s Special 5OB2 fast-fill train horn kit features one the fastest compressors available, the Air Zenith OB2. Ensuring you always have air when you need it, our Conductor’s Special 5OB2 fast-fill train horn kit can recharge all 5 gallons in as little as a minute and a half!
Please note: The 6 horn upgrade kit does NOT include the extension brackets to connect to our STDK bracket or Shocker XL horn mount.
| № 1 19.50″ (495.30 mm) | № 2 16.25″ (412.75 mm) |
| № 3 14.75″ (374.65 mm) | № 4 12.75″ (323.85 mm) |
| PSI | CFM | A |
|---|---|---|
| 0 | 4.25 | 0 |
| 10 | 4.25 | 25.5 |
| 20 | 4.25 | 28 |
| 30 | 4.25 | 29.2 |
| 40 | 3.22 | 30.5 |
| 50 | 3.13 | 31.8 |
| 60 | 3.13 | 32.9 |
| 70 | 2.95 | 33.2 |
| 80 | 2.87 | 34 |
| 90 | 2.66 | 34.4 |
| 100 | 2.47 | 34.9 |
| 110 | 2.36 | 35 |
| 120 | 2.21 | 35 |
| 130 | 2.08 | 35 |
| 140 | 1.97 | 34.9 |
| 150 | 1.83 | 34.9 |
* Supply Voltage: 13.8 Volts
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 3 min. 30 sec. (± 10 sec.) |
| 110 to 150 PSI | 70 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
