CONDUCTOR'S SPECIAL 540 TRAIN HORN KIT HK-S4-540

Return to Shopping

Product Description

Designed for anyone that loves to lay on their horn for an outrageous amount of time, our HornBlasters Conductor’s Special 540 train horn kit gives you all the air you would ever need to honk your horns. And it has one of the fastest recovery rates out of any of our kits. Want to have the ability to honk your train horn for 10-12 seconds straight? This is the kit for you!

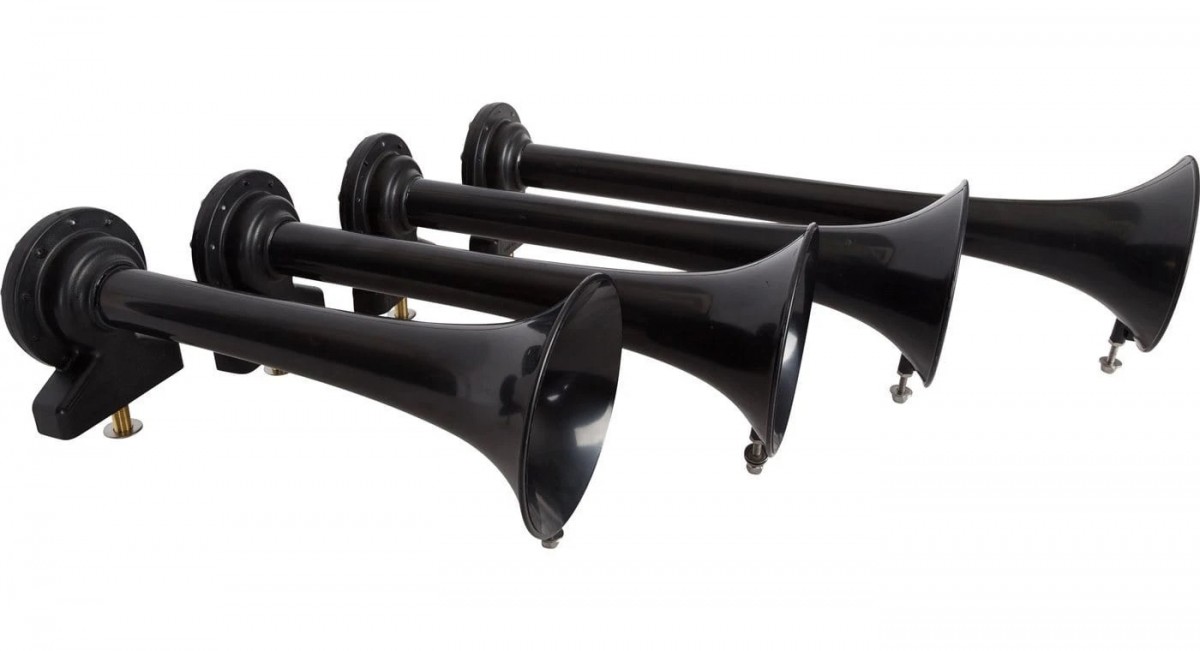

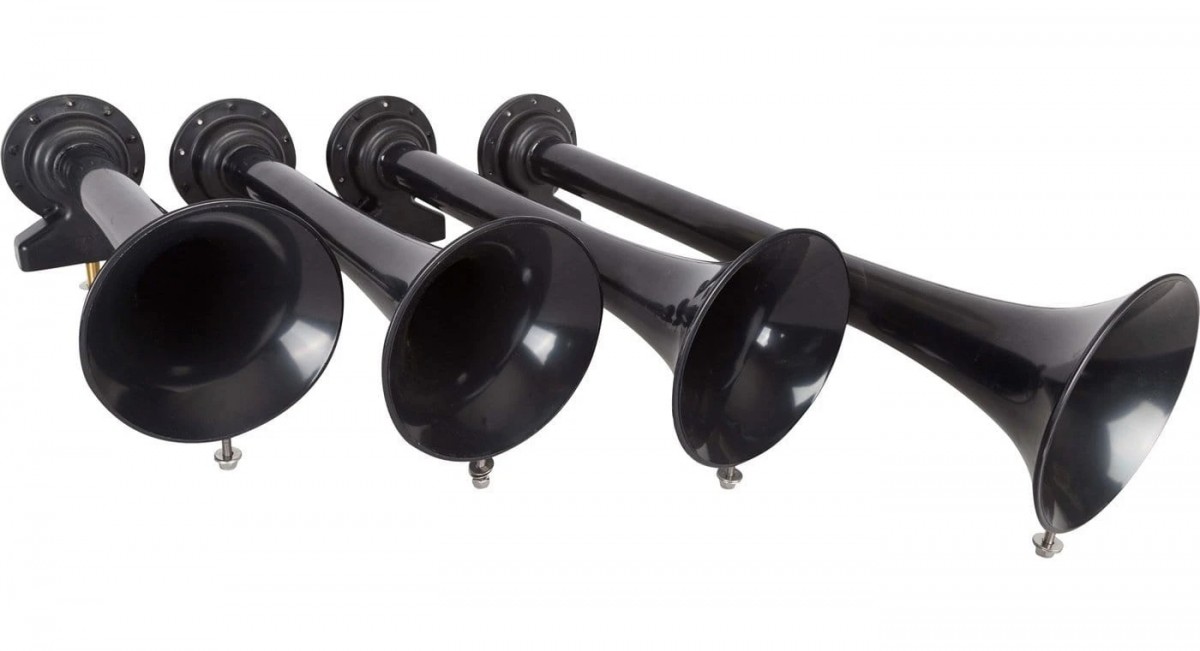

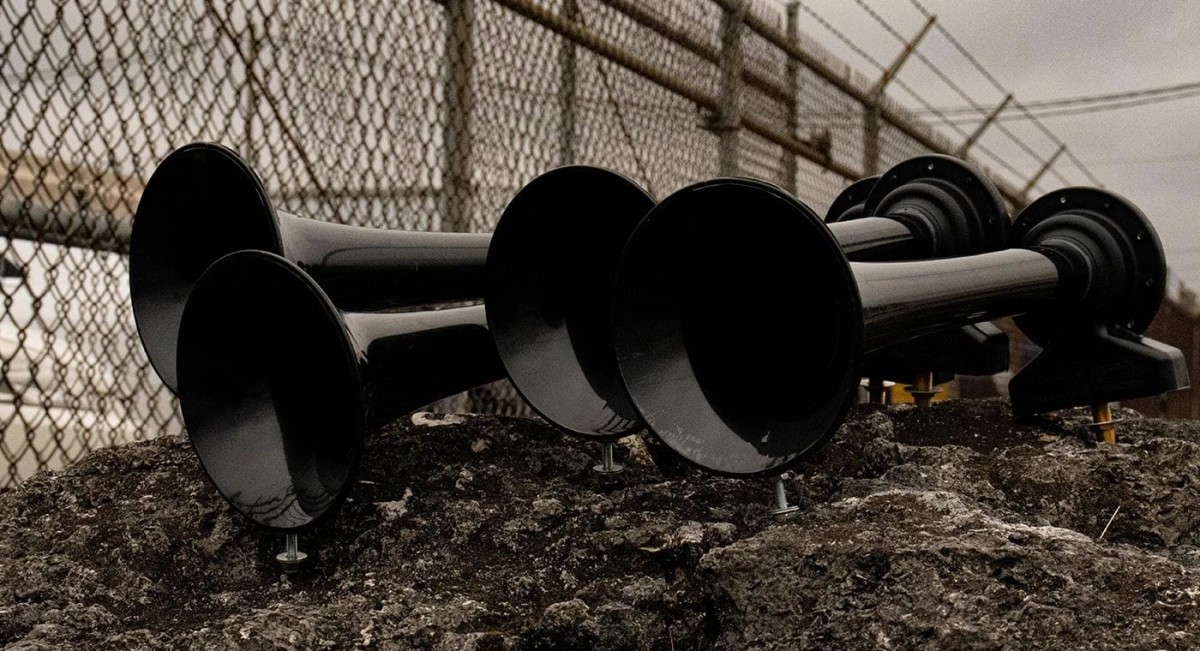

Of course, no one wants to blast a wimpy horn for that long. Our Shocker XL train horns are included in this kit will bring you the full power and tone of an actual locomotive all while requiring less air than the authentic train horns. Constructed from an ultra-durable fiberglass-reinforced ABS composite with stainless-steel diaphragms and backed by a lifetime warranty against manufacturer defects, our Conductor’s Special 540 gives you some of the loudest, most reliable, and easiest train horns to install.

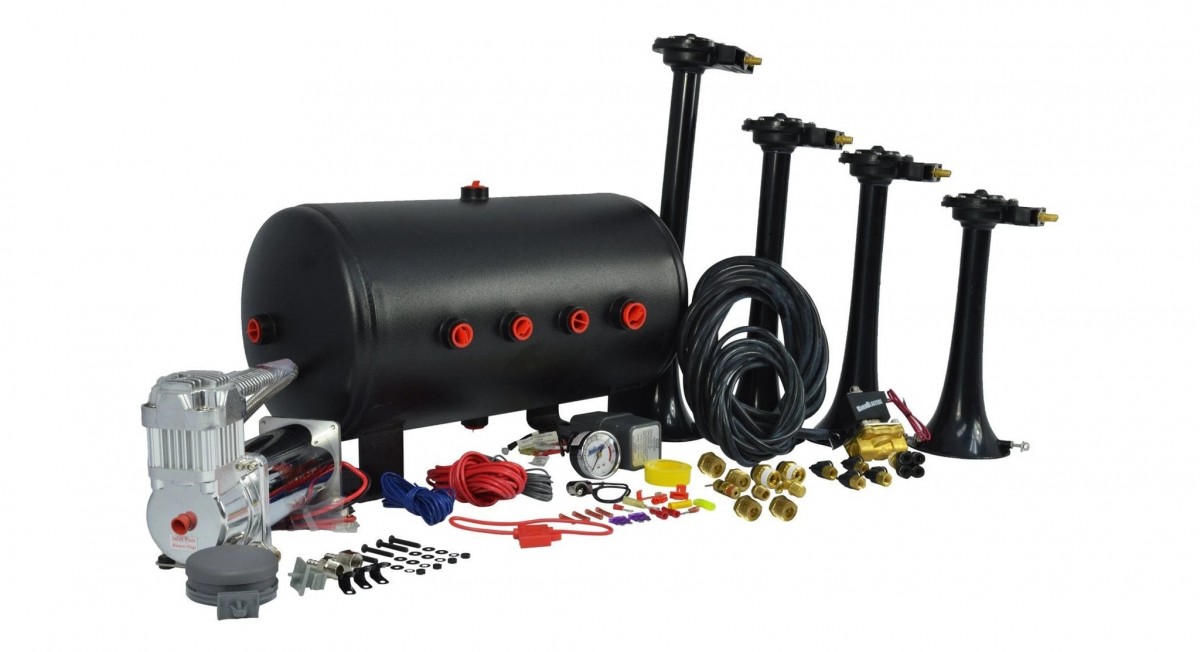

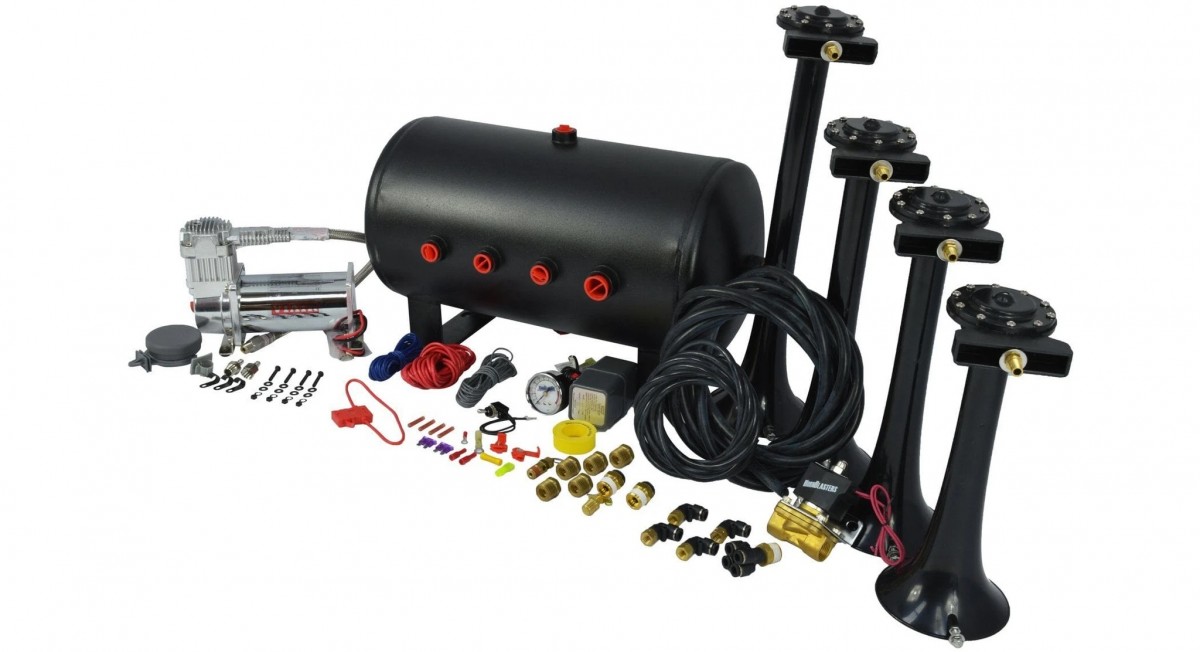

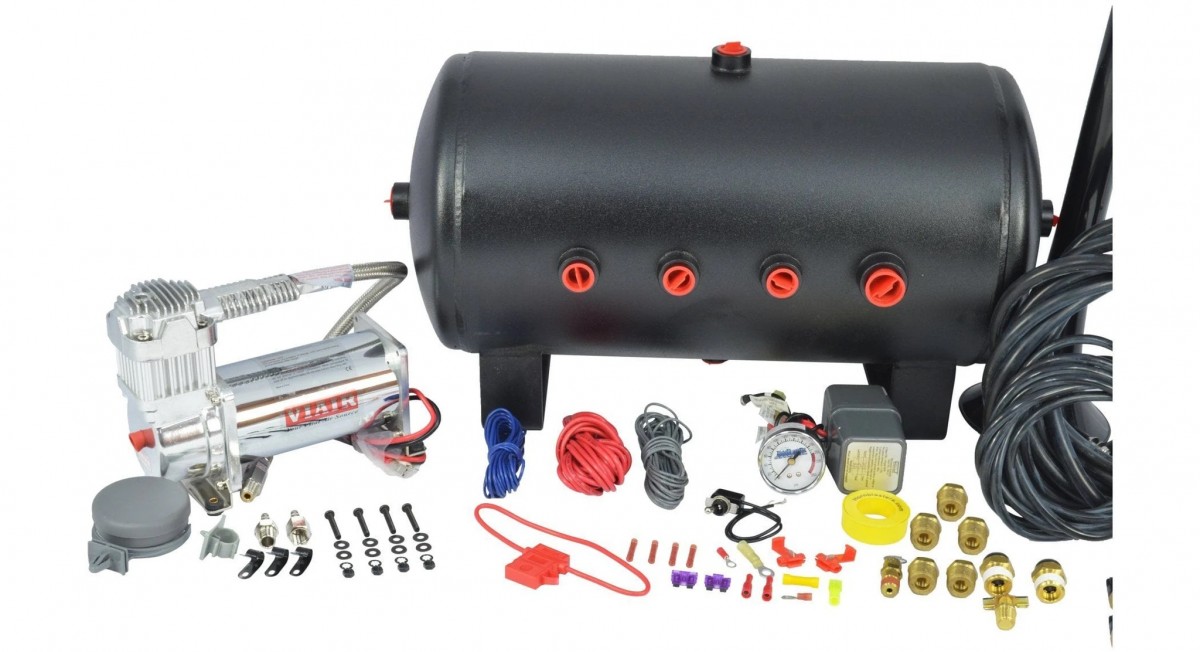

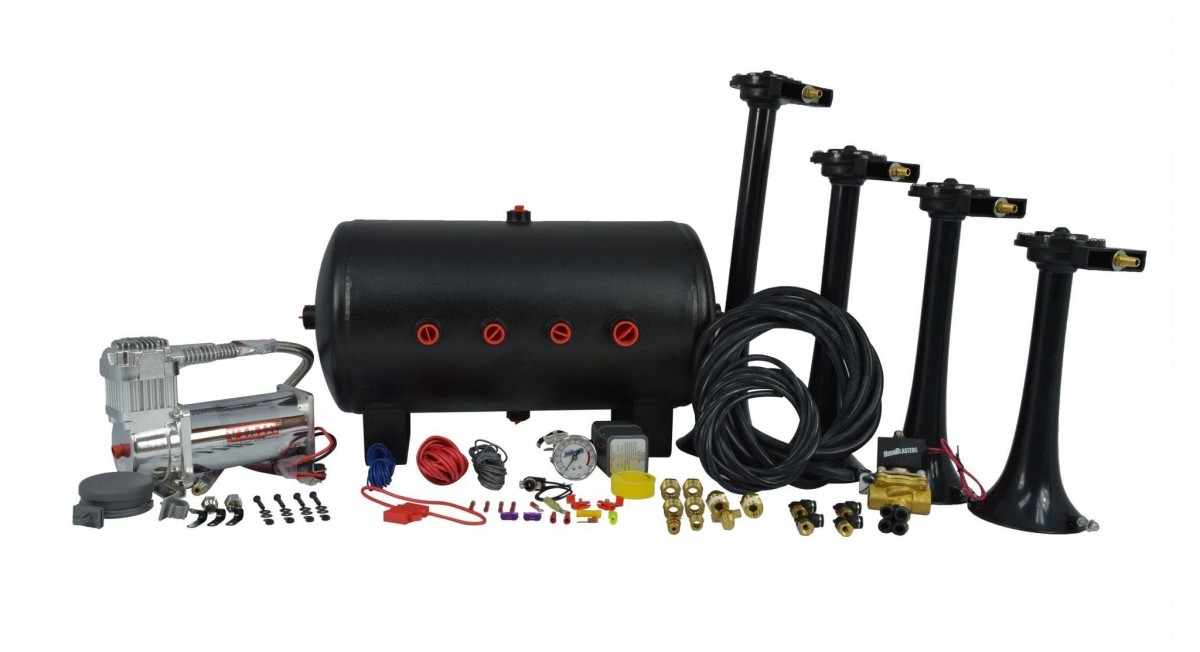

Backing these beastly horns is our HornAir 540 onboard air system. Our 5-gallon black 8-port air tank gives you enough air to honk for up to 10-12 seconds as well as give you plenty of onboard air in case of emergencies, such as tire inflation. Our HornBlasters Conductor’s Special 540 features one of Viair’s fastest air compressors, the Viair 400C. Ensuring you always have air when you need it, our Conductor’s Special 540 can recover the 5-gallon tank in as little as a minute and a half!

Please note: The 6 horn upgrade kit does NOT include the extension brackets to connect to our STDK bracket or Shocker XL horn mount.

  • Extremely Durable & Loud!
  • Industrial Grade Stainless Steel Diaphragms
  • Extra Large Five Gallon Air Tank
  • Heavy Duty 400C Air Compressor
  • All-inclusive Train Air Horn Solution!
  • All Standard Mounting Hardware
  • Max Honk Time: 10 to 12 Seconds
  • It can be heard from miles away!

  • Horn: HornBlasters Shocker 4 Train Horn Kit
  • Part Number: HK-S4-540
  • Horn: Shocker 4 Train Horn Kit
  • Material: High-Impact ABS
  • Horn Measurements
  • № 1 19.50″ (495.30 mm) № 2 16.25″ (412.75 mm)
    № 3 14.75″ (374.65 mm) № 4 12.75″ (323.85 mm)
  • Flare: 5″ (127 mm)
  • Weight: 4.5 lb (2.04 Kg)
  • Fitting Size: ⅛″ M NPT
  • Tank: HornAir 5 Gallon Tank
  • Tank Length: 20.5″ (520.7 mm)
  • Tank Diameter: 9.5″ (241.3 mm)
  • Tank Height: 11.5″ (292.1 mm) (With Legs)
  • Tank Weight: 20 lb (9.07 Kg)
  • Compressor: Viair 400C Air Compressor
  • Average Fill Time: 1 Min 30 Sec
  • Voltage: 12 volts DC
  • Air Flow: 2.62 CFM at Free Flow
  • Max Amperage: 28 amps
  • Maximum Duty Cycle: 33% @ 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Compressor Length: 9.0″ (228.6 mm)
  • Compressor Width: 4.0″ (101.6 mm)
  • Compressor Height: 6.75″ (171.5 mm)
  • Compressor Weight: 8.00 lb (3.63 Kg)

5-GALLON AIR TANK DIMENSIONAL DRAWING

PSI CFM A BAR LPM A
0 2.62 16 0 74.0 16
10 2.39 18 1.0 65.0 20
20 2.21 20 2.0 60.0 23
30 2.11 22 3.0 56.0 25
40 2.01 24 4.0 53.0 27
50 1.93 25 5.0 49.0 28
60 1.84 26 6.0 46.0 28
70 1.73 27 7.0 42.0 28
80 1.65 27 8.0 38.0 28
90 1.52 27 9.0 35.0 27
100 1.45 27 10.0 31.0 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26

* Supply Voltage: 13.8 Volts

5.0 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 55 sec. (± 10 sec.)
85 to 105 PSI 45 sec. (± 05 sec.)
0 to 145 PSI 4 min. 50 sec. (± 10 sec.)
110 to 145 PSI 1 min. 40 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

 2010 Ford F150 Supercrew Cab 2004 Chevrolet Impala 2007 Dodge Ram 3500
2002 Dodge Dakota

*Check out our Install Gallery for more Installs!
