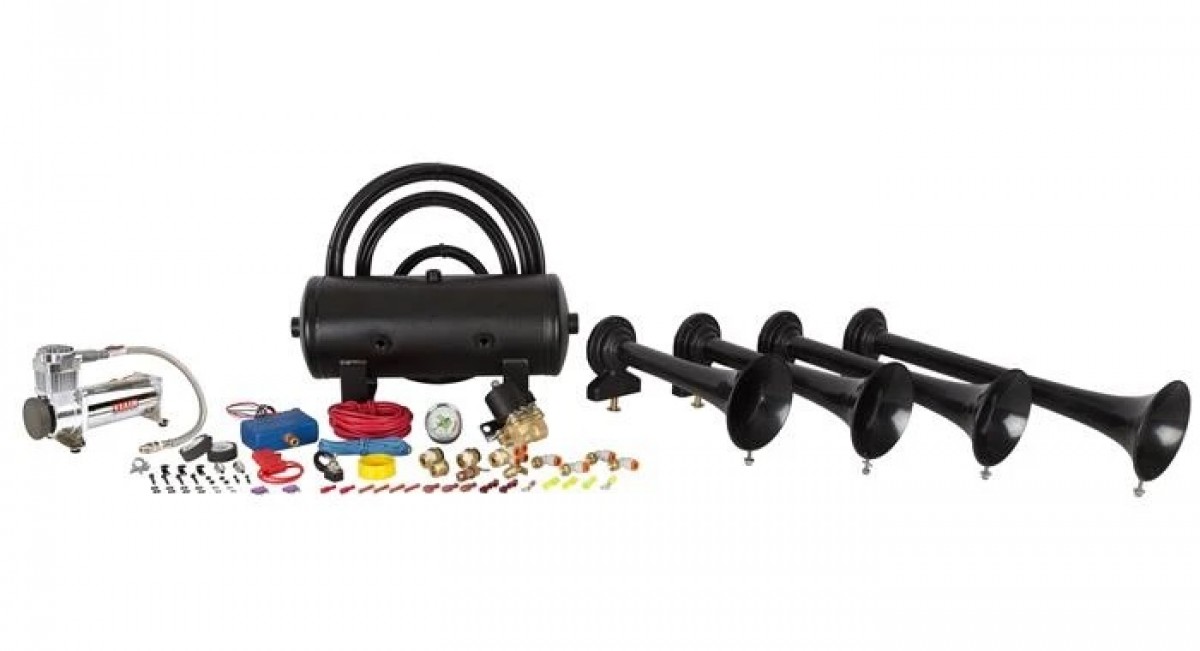

CONDUCTOR'S SPECIAL 244 TRAIN HORN KIT HK-S4-244

Return to Shopping

Product Description


Our most popular Conductor’s Special kit, our Conductor's Special 244 train horn kit is the golden standard that train horn kits should be. Our Conductor's Special 244 is everything you would look for in a train horn kit: extremely loud, compact, and reasonably priced, you really can’t go wrong with our Conductor's Special 244 Train Horn Kit. In fact, the only complaint that we have got is that they are too loud!

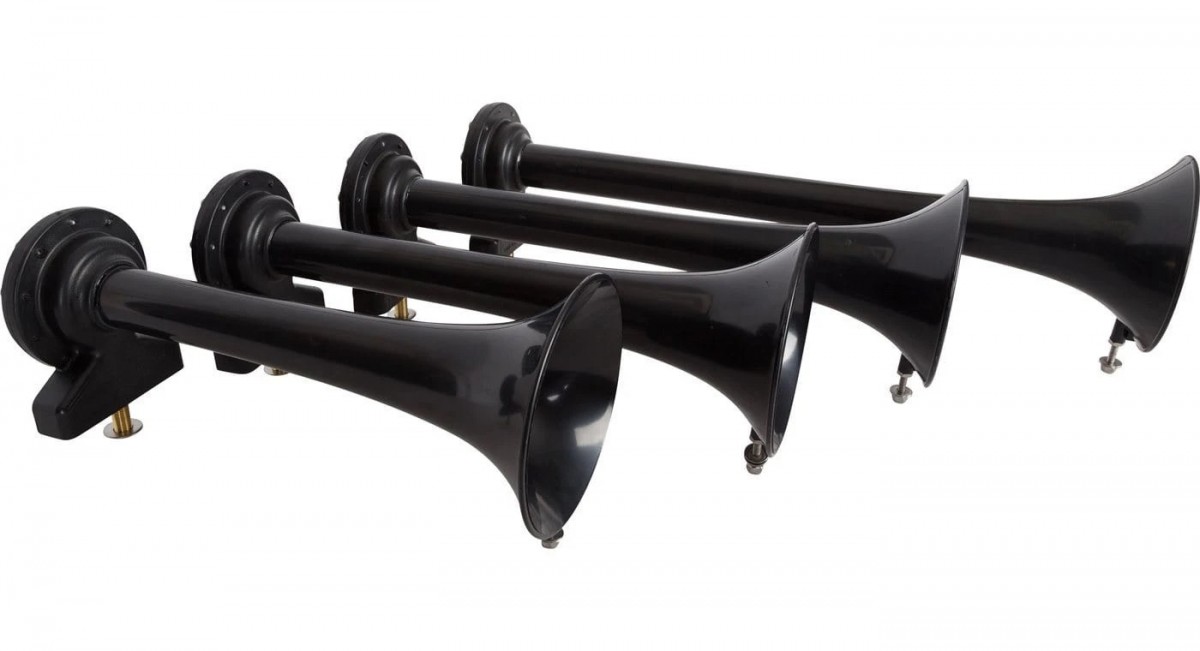

With our Conductor's Special 244, you get some of the loudest train horns ever made, the Shocker XL train horns. These ridiculously loud horns are hand-tuned to the US Train Horn Chord and pack just as much punch as the authentic train horns we offer. Constructed from an ultra-durable fiberglass-reinforced ABS composite with stainless-steel diaphragm, the Conductor's Special 244 can handle anything mother nature can throw at it.


Powering the Shocker XL train horns is our 2-gallon tank and a Viair 444C air compressor, giving you 4-6 seconds of continuous honk time and a recovery rate of only 50 seconds! Why settle for just having air for just the horns when you can inflate tires, airbags, Jake brakes, and more? With the Conductor's Special 244, you can do it all, and you get some of the world's loudest horns as well!


An increasing number of people are using this for more than just blasting horns! With a system like the Conductor's Special 244 train horn kit, you can also use the air supply to:


  • Adjust Tire Pressure
  • Light Pneumatic Use
  • Inflate Water Toys and Safety Gear
  • Supply Air to Load Leveling Bags
  • Supply Air for Differential Lockers
  • Blow up Kids Toys
  • And lots more!


  • High-efficiency & Extremely Loud
  • Stainless Steel Diaphragms Won't Rust!
  • Manifold-less Design For Flexible Installation
  • All-inclusive Train Air Horn Solution!
  • Heavy Duty Compressor For Faster Fills!
  • All Standard Mounting Hardware
  • Max Honk Time: 5 to 7 Seconds
  • It can be heard from almost miles away!

  • Part Number: HK-S4-244

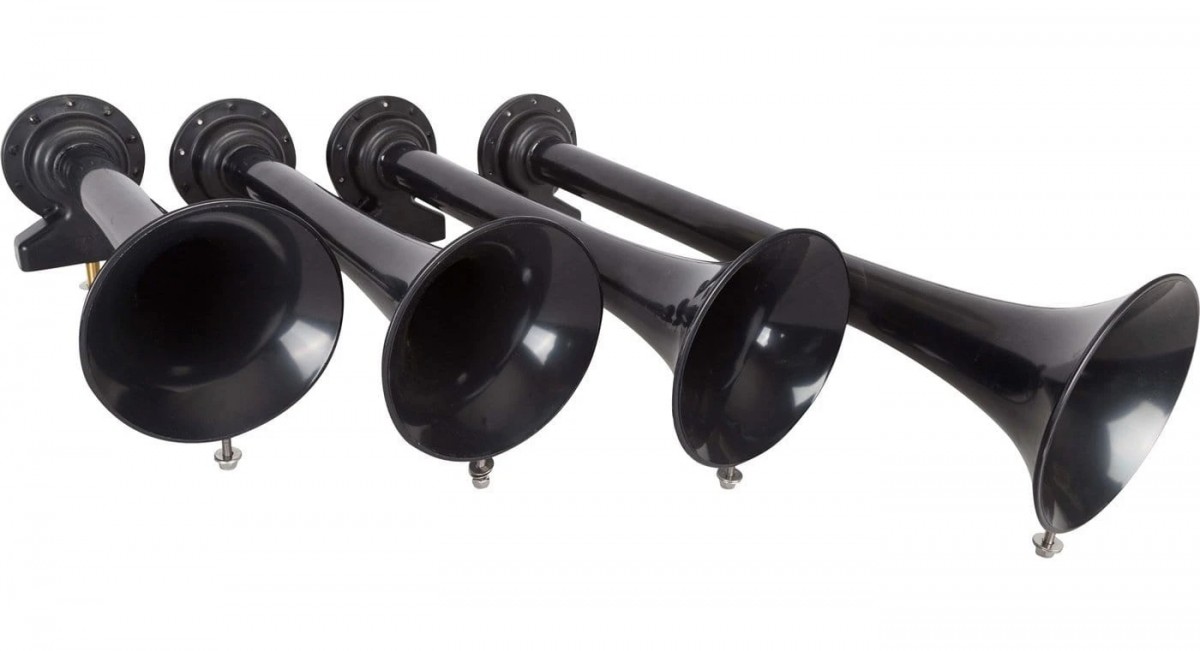

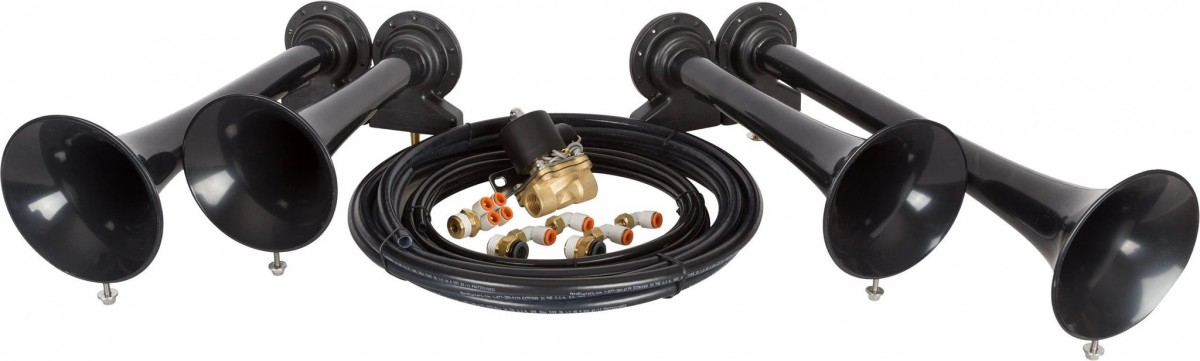

  • Horn: Shocker 4 Train Horn Kit
  • Material: High-Impact ABS
  • Horn Measurements
    № 1 19.50″ (495.30 mm)№ 2 16.25″ (412.75 mm)
    № 3 14.75″ (374.65 mm)№ 4 12.75″ (323.85 mm)
  • Flare: 5″ (127 mm)
  • Weight: 4.5 lb (2.04 Kg)
  • Fitting Size: ⅛″ M NPT
  • Tank: HornAir 2 Gallon Tank
  • Tank Length: 17″ (431.8 mm)
  • Tank Diameter: 6″ (152.4 mm)
  • Tank Height: 7″ (177.8 mm)
  • Tank Weight: 10 lb (4.54 Kg)

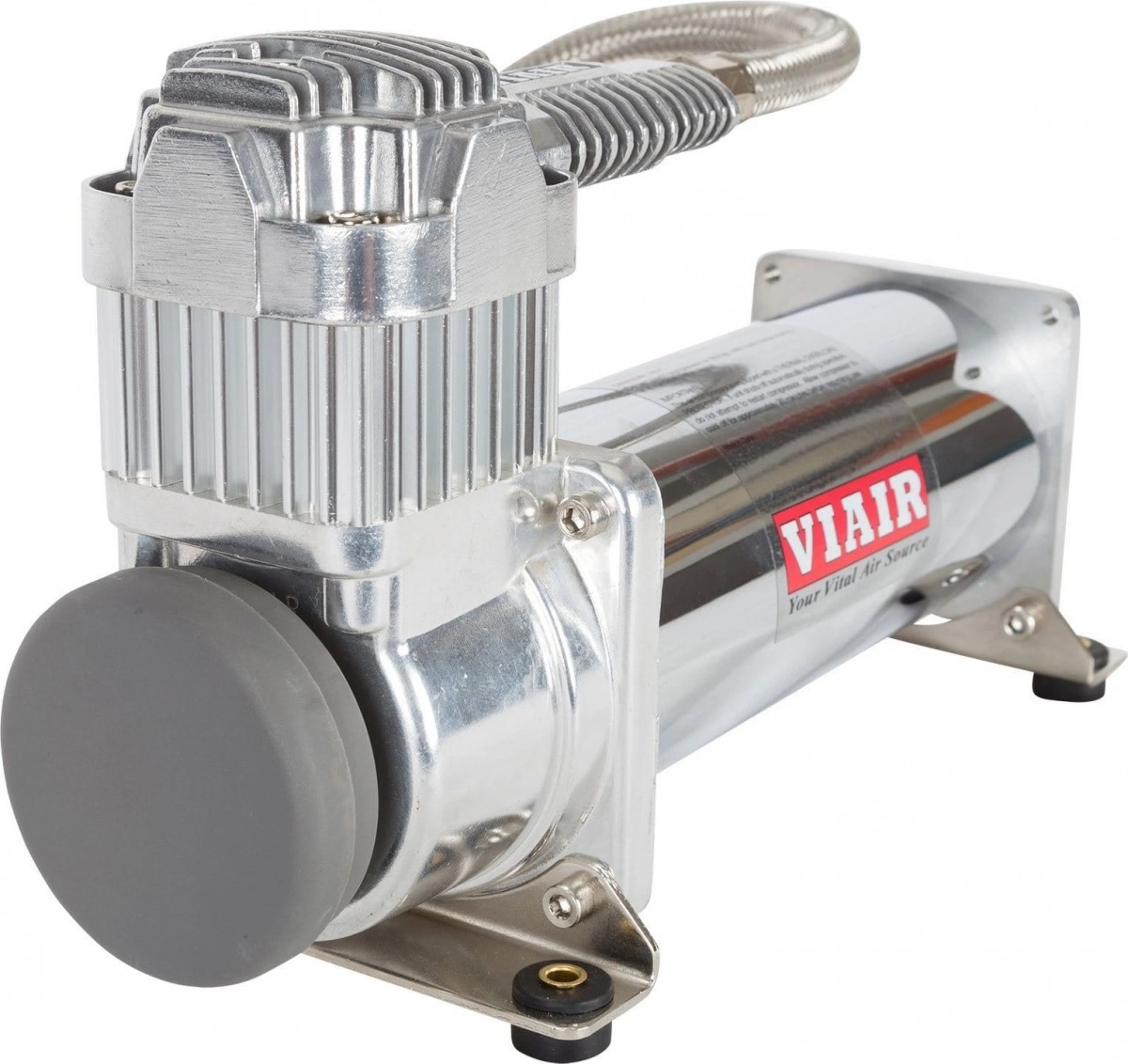

  • Compressor: Viair 444C Air Compressor
  • Average Fill Time: 50 Sec
  • Voltage: 12 volts DC
  • Air Flow: 1.67 CFM
  • Max Amperage: 19 amps
  • Maximum Duty Cycle: 100% @ 100 PSI
  • Maximum Working Pressure: 200 PSI
  • Compressor Length: 11.5″ (292.1 mm)
  • Compressor Width: 4.30″ (109.22 mm)
  • Compressor Height: 6.5″ (165.1 mm)
  • Compressor Weight: 11 lb (4.99 Kg)


2-GALLON AIR TANK DIMENSIONAL DRAWING


PSICFMABARLPMA
01.76130100.013
101.63141.088.515
201.49162.081.316
301.43173.075.617
401.36174.070.618
501.29185.065.518
601.24186.059.019
701.18187.053.120
801.10198.047.719
901.02199.043.219
1000.952010.038.819
1100.872011.034.718
1200.831912.030.618
1300.771913.025.817
1400.711914.023.816
1500.6619
1600.6118
1700.5718
1800.5017
1900.4517
2000.4316


* Supply Voltage: 13.8 Volts


2.0 GALLON TANKFILL RATE
0 to 150 PSI2 min. 30 sec. (± 10 sec.)
110 to 150 PSI57 sec. (± 05 sec.)


* Supply Voltage: 13.8 Volts
