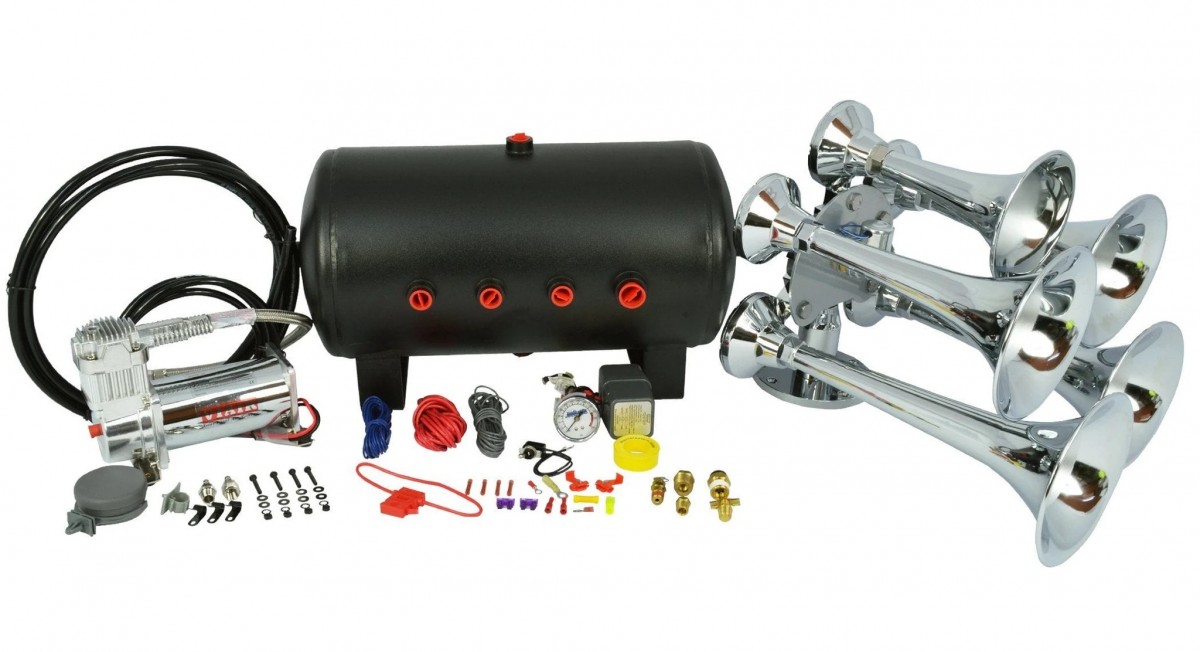

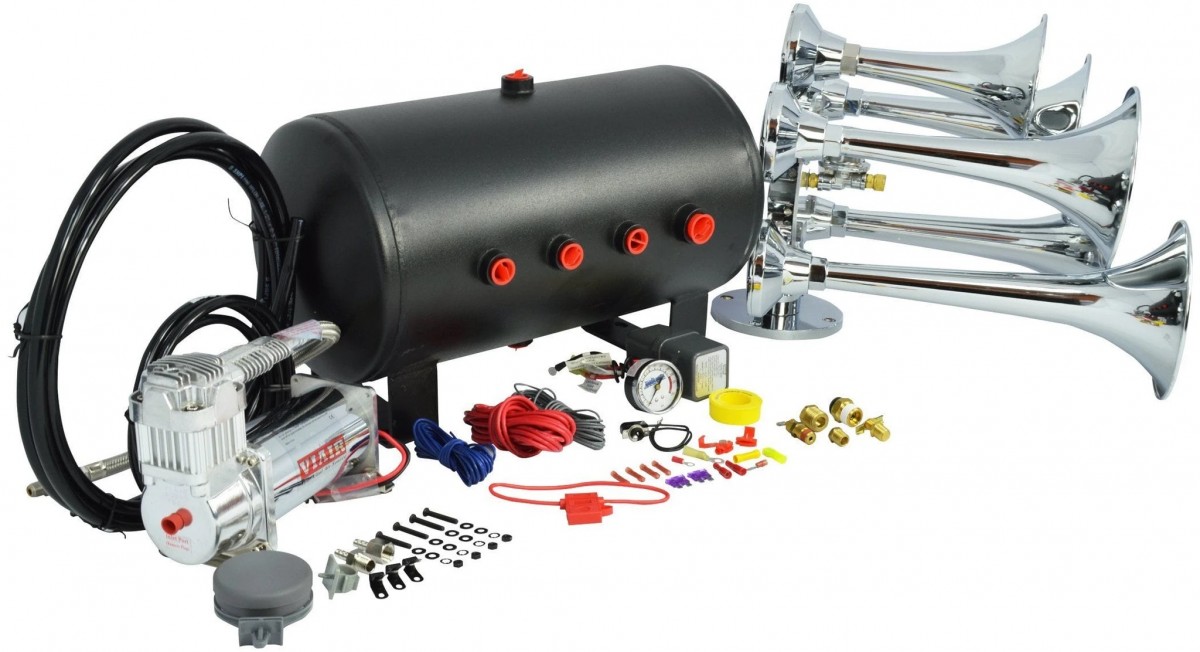

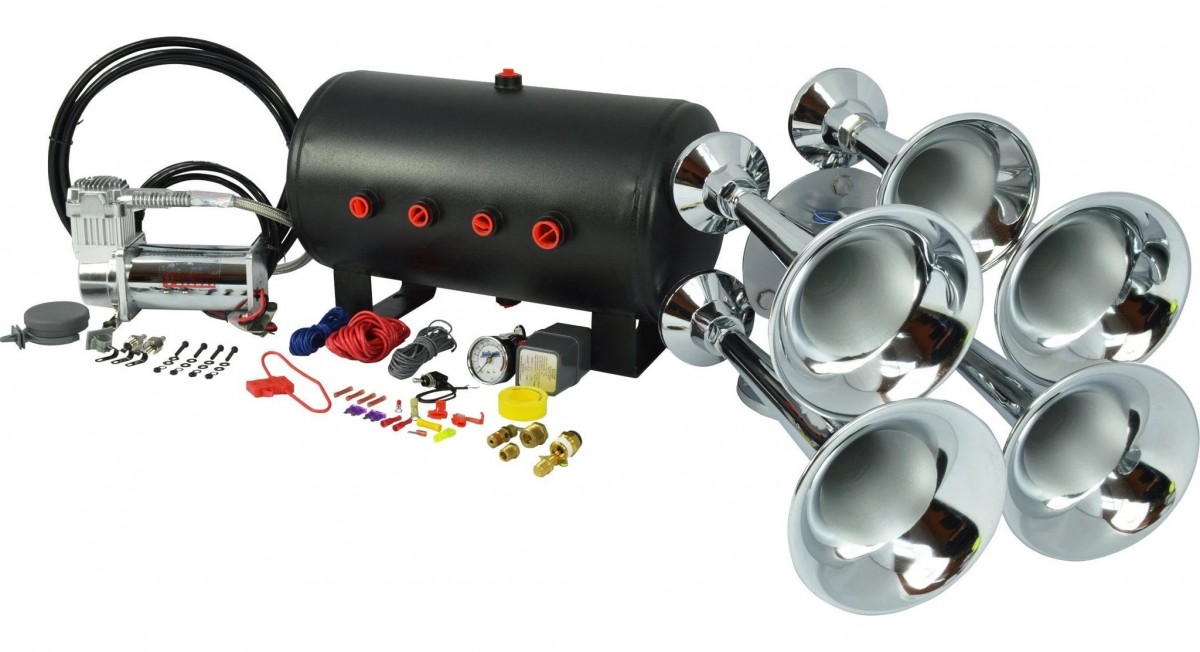

Incredibly loud, with an insane blast time and recharge rate, our Admiral 540 Train Horn Kit gives you one of the loudest voices on the road and lets everyone know who’s in charge. Our weather-resistant Admiral 540 Train Horn Kit is no stranger to the highway.

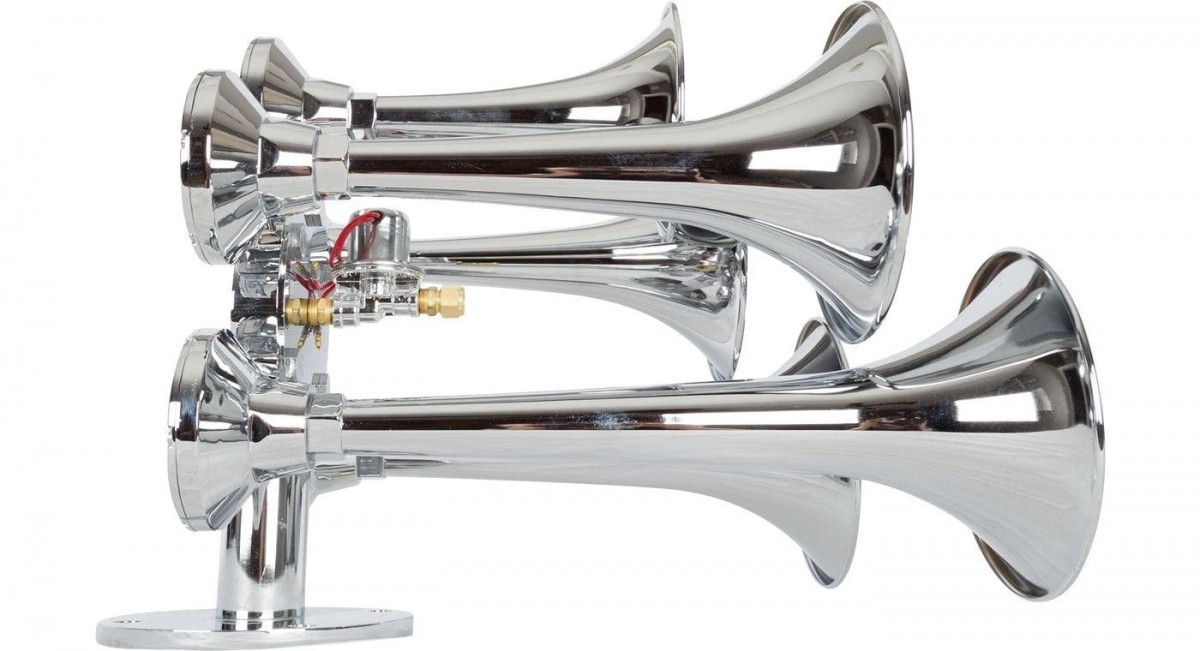

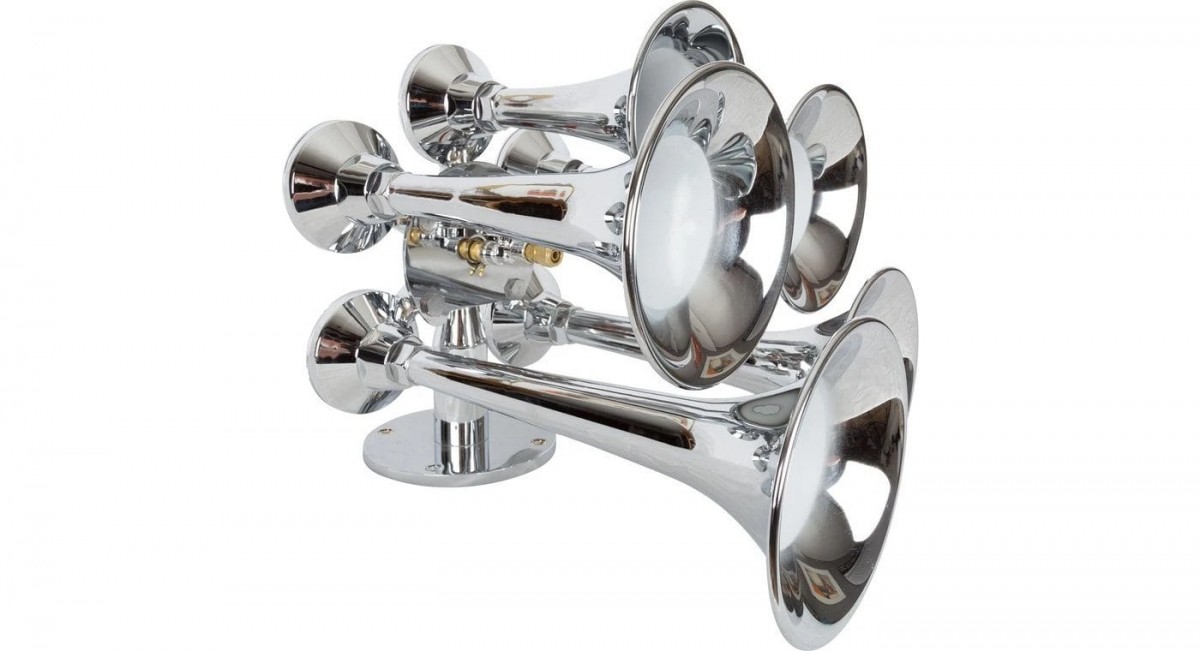

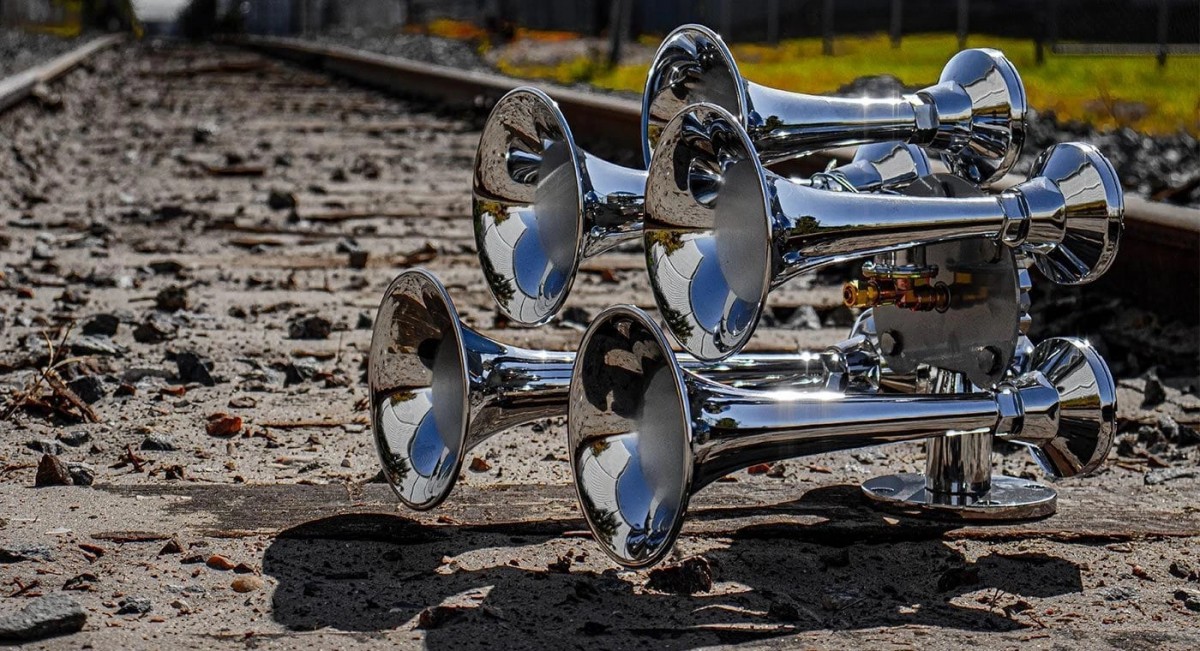

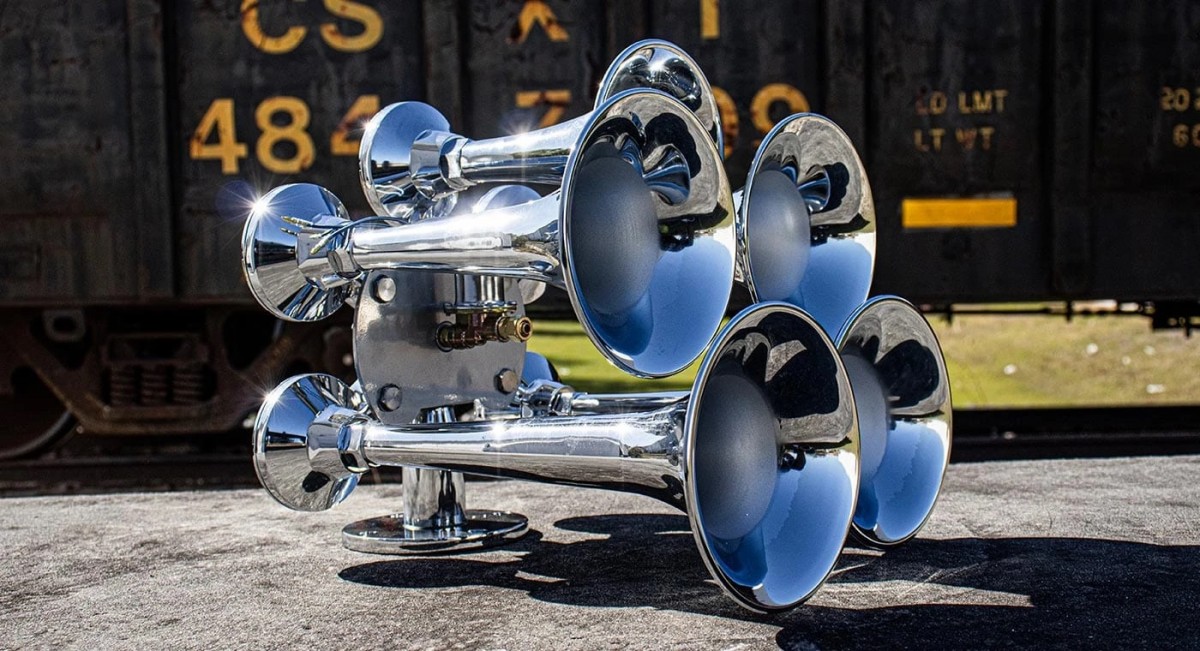

Our beautiful, chrome 5-chime Admiral Train Horn catches your eye and commandeers your ears! Forged from solid brass and covered in a chrome finish. Our Admiral Train Horn isn't just about looking good though. This 5-chime monster is sure to turn heads long before anyone even sees it coming.

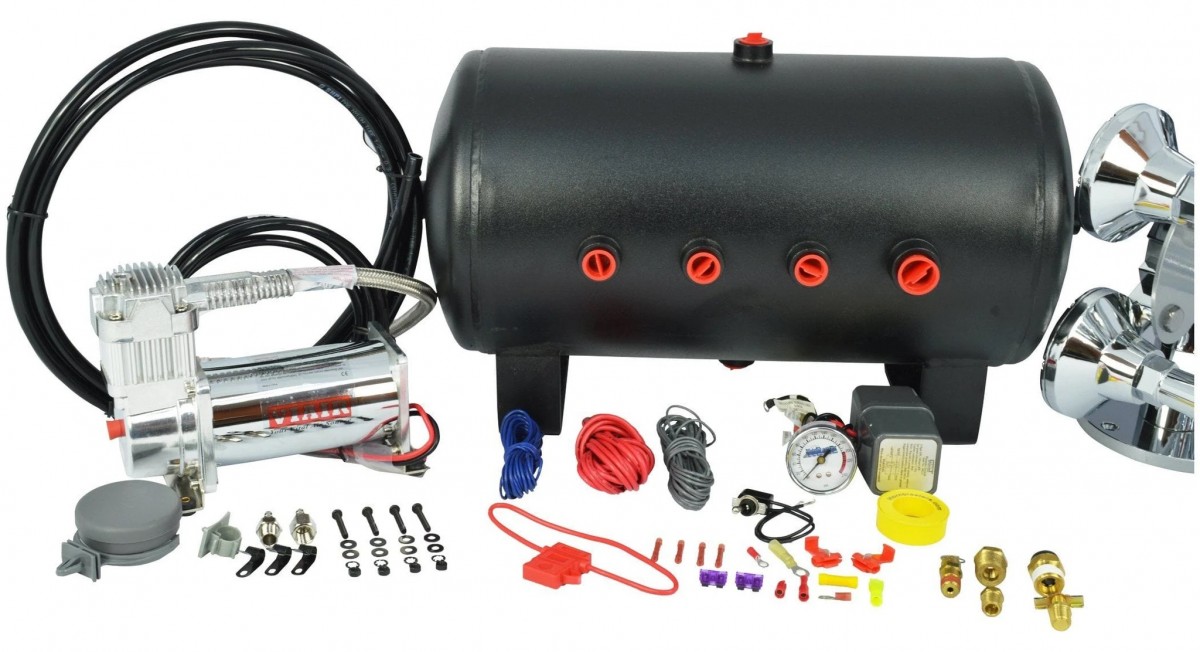

Paired with this beast of a horn is our HornAir 540 Onboard Air System that provides you with all the power you need to be heard from miles away. In addition to giving you up to 10 seconds of continuous blast time for your Admiral Train Horn, our HornAir 540 Onboard Air System may also support other onboard air applications such as tire inflation in an emergency situation. Our 5 gallon, 8 port tank is powered by the fast-fill Viair 400C Air Compressor giving this kit one of the fastest fill times available, recharging our 5-gallon tank from 110-150 PSI in only 1 minute and 30 seconds while only pulling 28 amps.
While this kit gives you everything you need to get up and going, make sure to pick up our tire inflation kit, wireless remote, and mounting bracket to get the most out of this kit.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 2 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 45 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
| 1996 Ford F250 Powerstroke | 2015 GMC Sierra 2500HD |
| 1978 Ford F150 |
*Check out our Install Gallery for more Installs!
