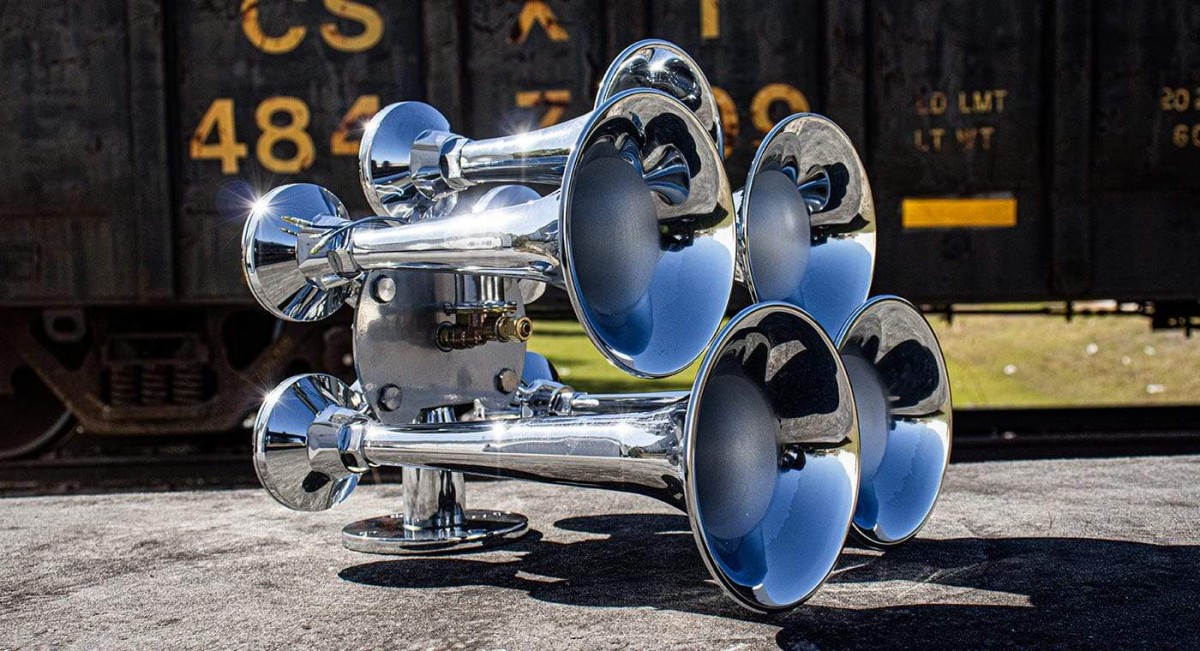

Showing everyone on the road who the captain is now, our Admiral 228H Train Horn Kit is perfectly at home on either the high seas or the highway. With a chrome finish, our Admiral 228H Train Horn Kit is sure to command respect with its stunning looks and massive sound.

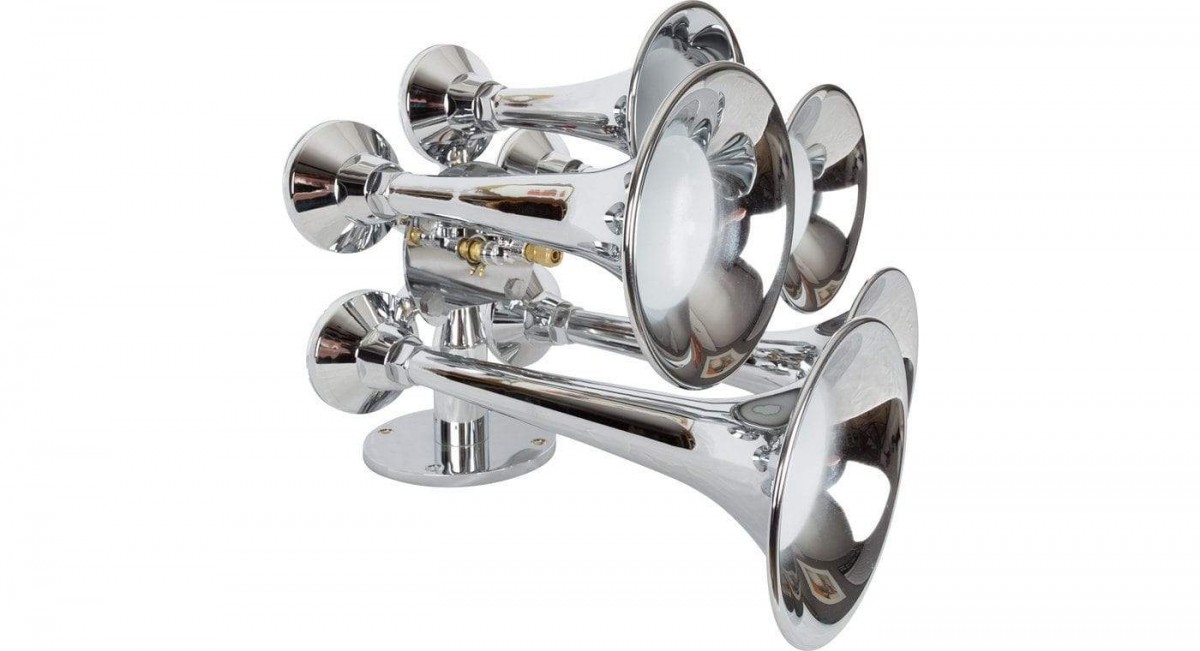

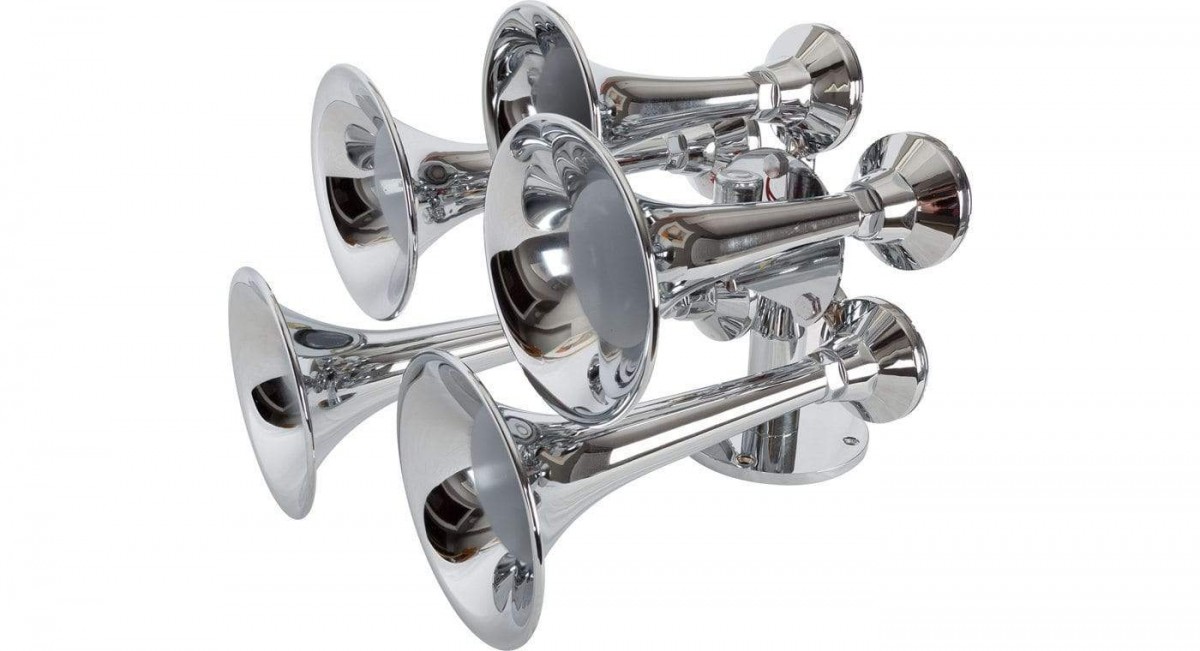

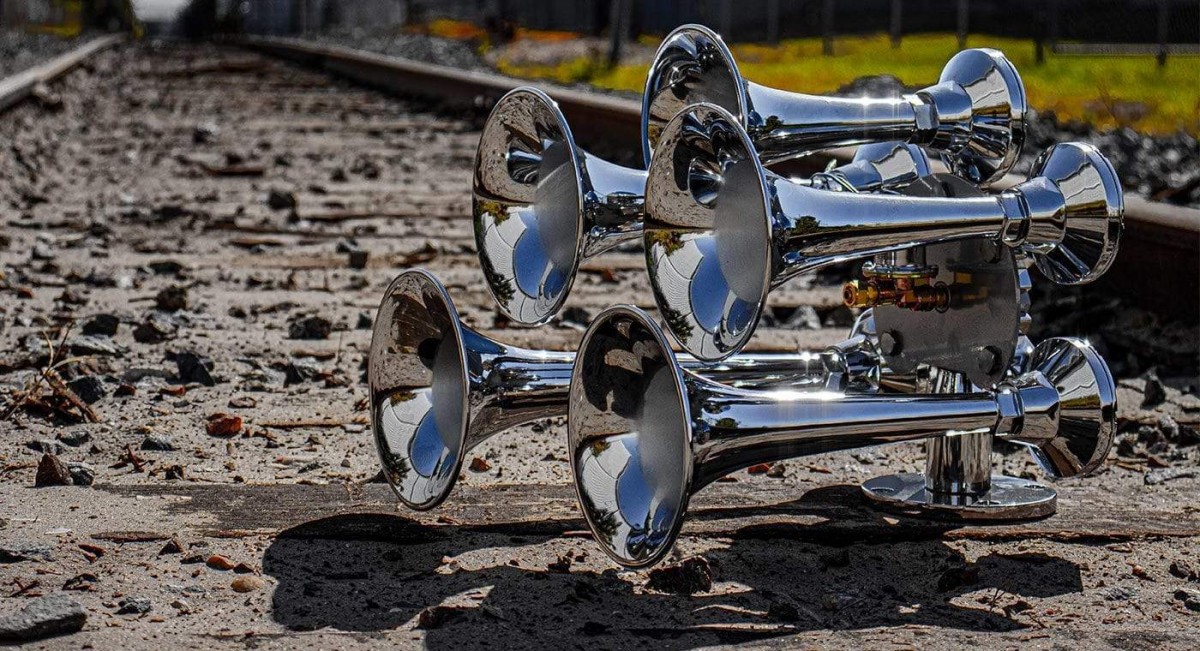

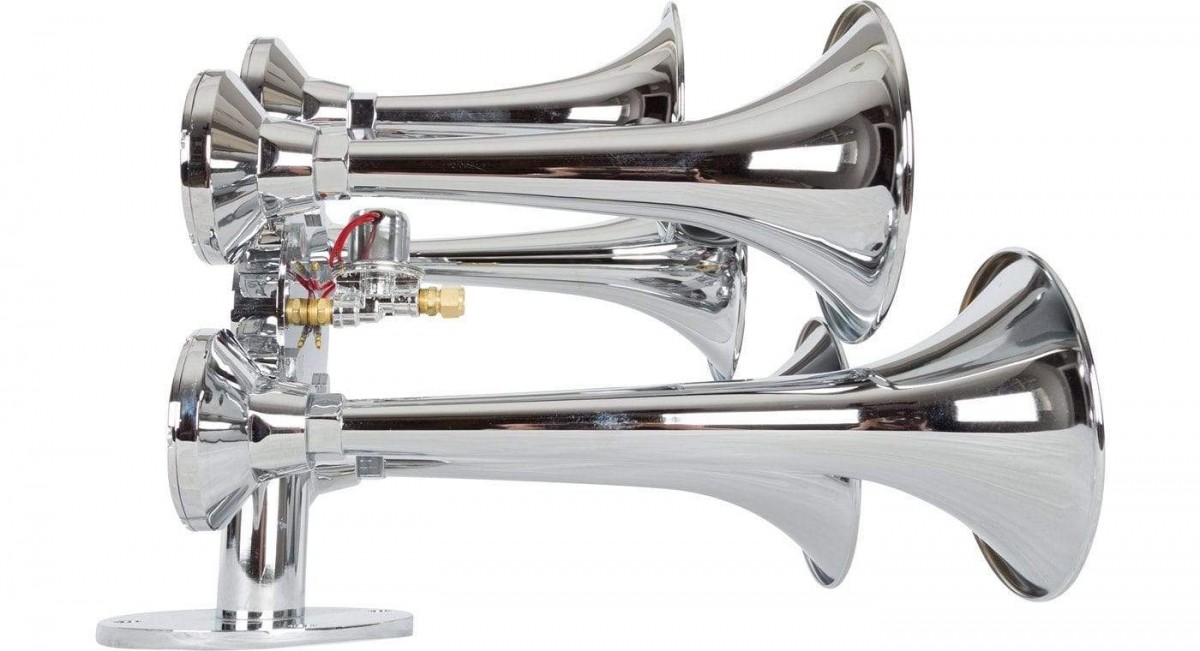

Train Horns aren’t just for the rails or the road anymore. With our Admiral 228H Train Horn Kit, you get an incredibly loud 5-chime train horn that is made of brass and coated in a dazzling chrome finish.

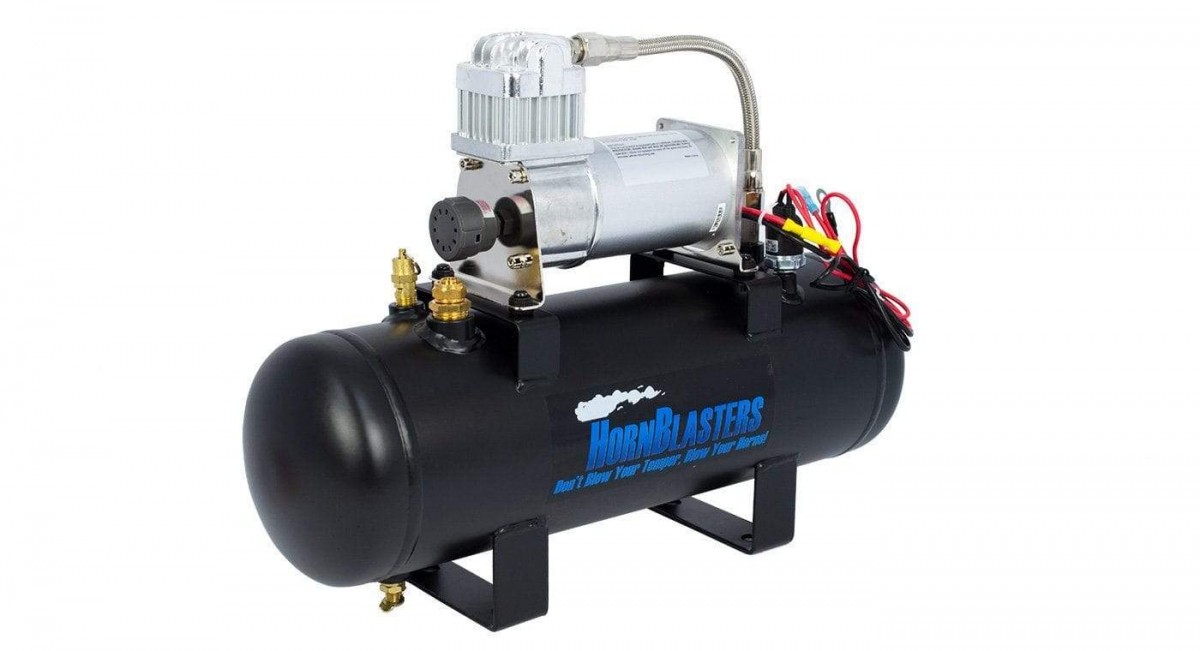

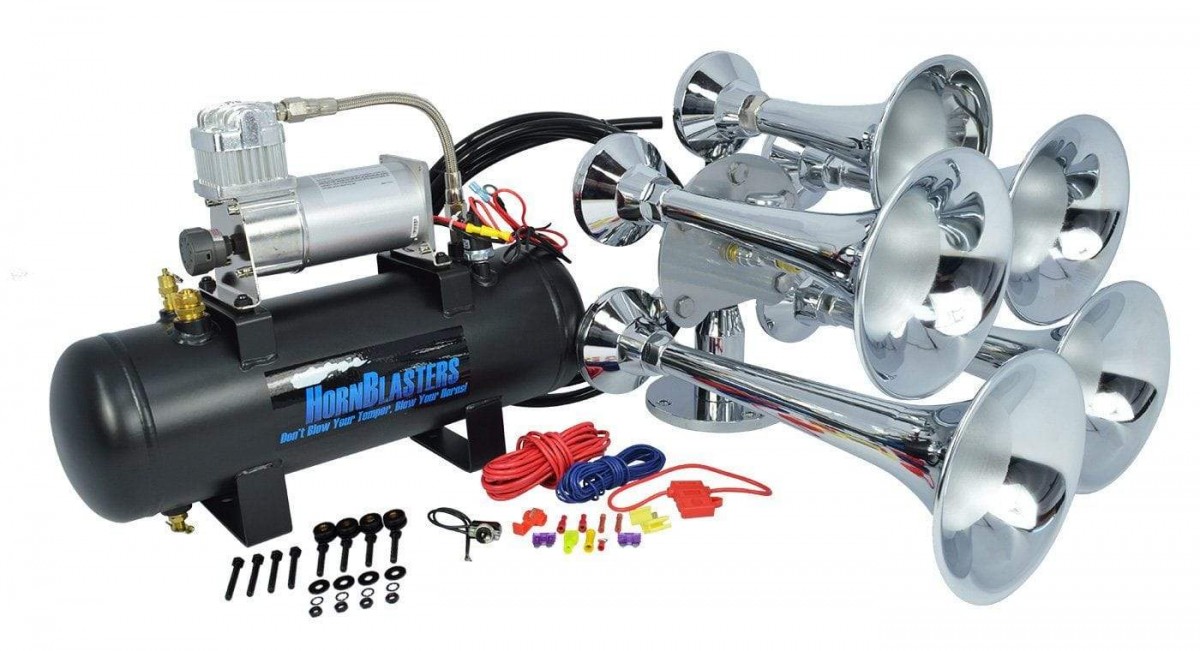

Our HornAir 228H Air Source Unit that we paired with our Admiral Train Horn is a beginner's favorite due to the system being pre-plumbed and pre-wired, making installation fast and easy. Don’t let the small size fool you...The 2-gallons of air provided by our HornAir 228H Air Source Unit give your Admiral Horns up to 5 seconds of continuous honk time and can recharge from 110-145 PSI in only 1 minute and 15 seconds! Like all HornBlasters Horn Kits, the Admiral 228H is a complete kit with all required components and detailed instructions included.

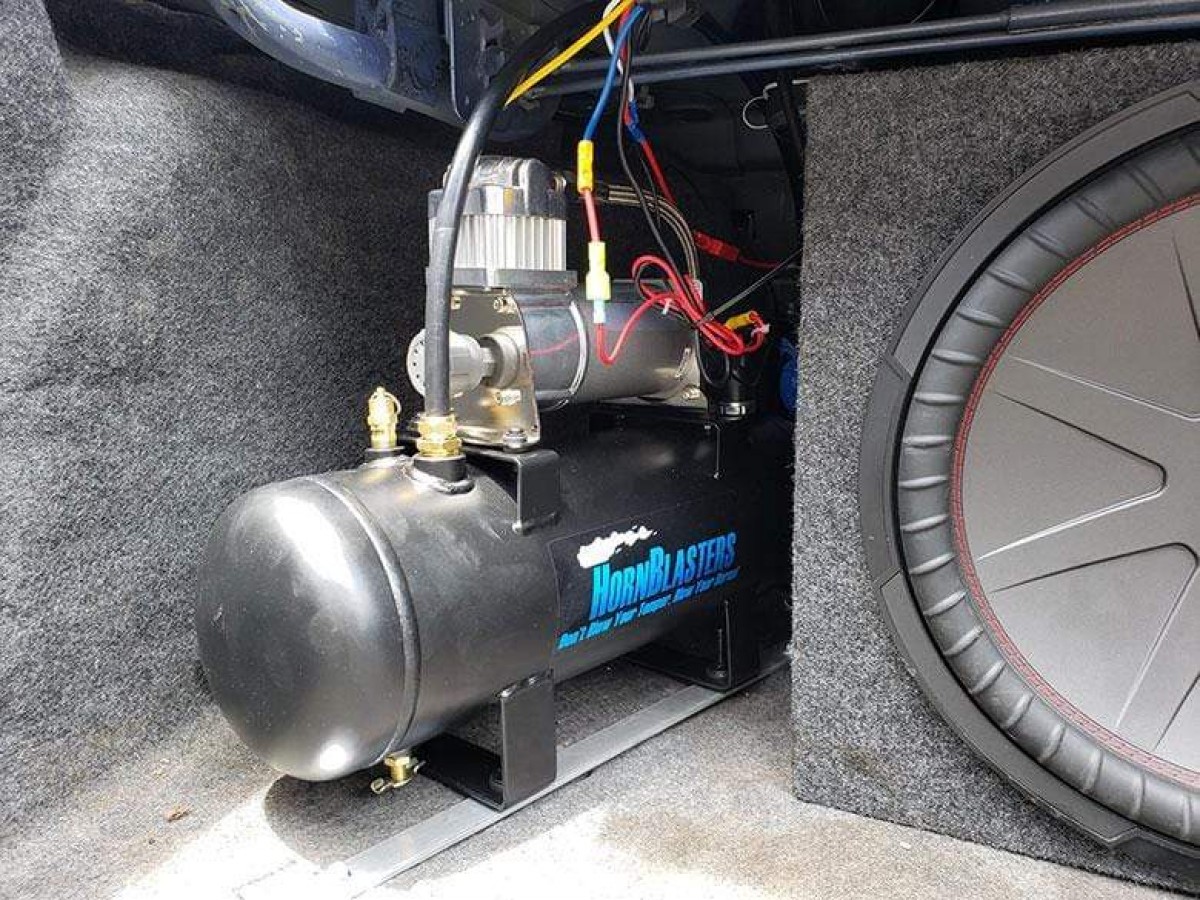

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
