HornBlasters Stainless Steel 5 Gallon, 5 Ports TA-504S

Return to Shopping

Product Description

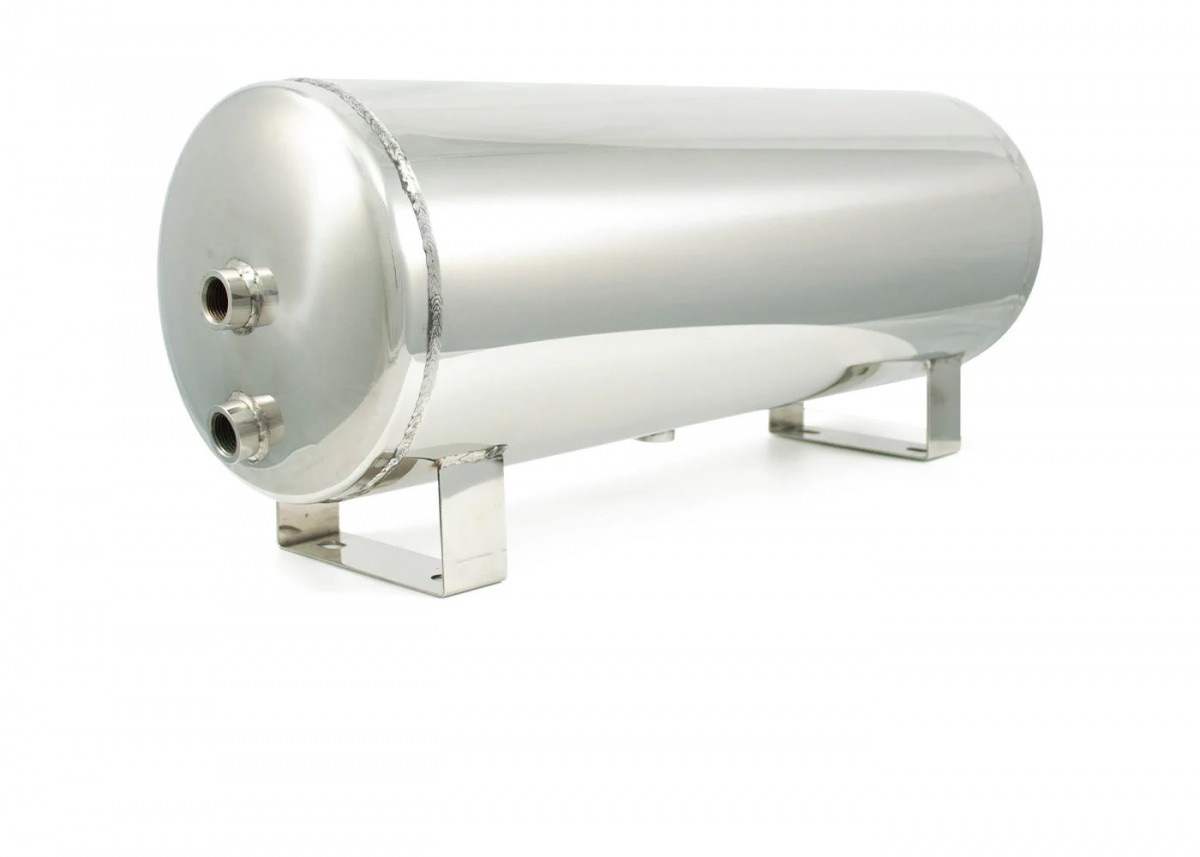

Our 5-gallon stainless steel 5 port air tank was designed to give you a clean, rust-free appearance for your onboard air system. If you live in a humid climate or just want to have some extra shine to go with your build, the 5-gallon air tank makes a great addition to your set-up. This air tank features 5 ports:  Four 1/2" Ports to give you maximum airflow and one 1/4" at the bottom for your drain cock. With a working pressure of 150 PSI, this air tank is sturdy enough for most mobile pneumatic systems.

As an important safety precaution,  a safety blow-off valve should be installed with any air system. A safety blow-off valve is designed to keep the system from over-pressurizing and to prevent damage to other components. It is suggested to use a safety blow-off valve with a PSI rating between 25-35 PSI higher than the maximum pressure of the pressure switch.

For example, 150 PSI systems require a 175 PSI safety blowoff and 120 PSI systems require a 150 PSI safety blowoff.

  • Stainless steel
  • Rust proof
  • 2-year manufacturers defect warranty

5-gallon stainless steel 5 port air tank


  • Part Number: TA-504S
  • Volume: 5 gals (18.92 L)
  • 1/4" NPT Ports: 1
  • 1/2" NPT Ports: 4
  • Working Pressure: 150 PSI
  • Tank Length: 23″ (406.4 mm)
  • Tank Width: 8″ (406.4 mm)
  • Tank Height: 10″ (254 mm)(With Legs)
  • Tank Weight: 20.5 lb (9.3 Kg)
