HORNBLASTERS 145 PSI 2 GALLON AIR SOURCE KIT MC-228H

Return to Shopping

Product Description

Looking for a 2-gallon air source unit that you don’t have to spend half the day putting together? Our 145 PSI 2-Gallon Air Source Unit is simple and easy to install air source unit that takes all the guesswork out of installation and gives you more time to do what matters most: Honking your HornBlasters Horns! Optimized for our horns, our 145 PSI 2-Gallon Air Source Unit is one of the fastest and cost-effective ways to get your horns a constant supply of air.

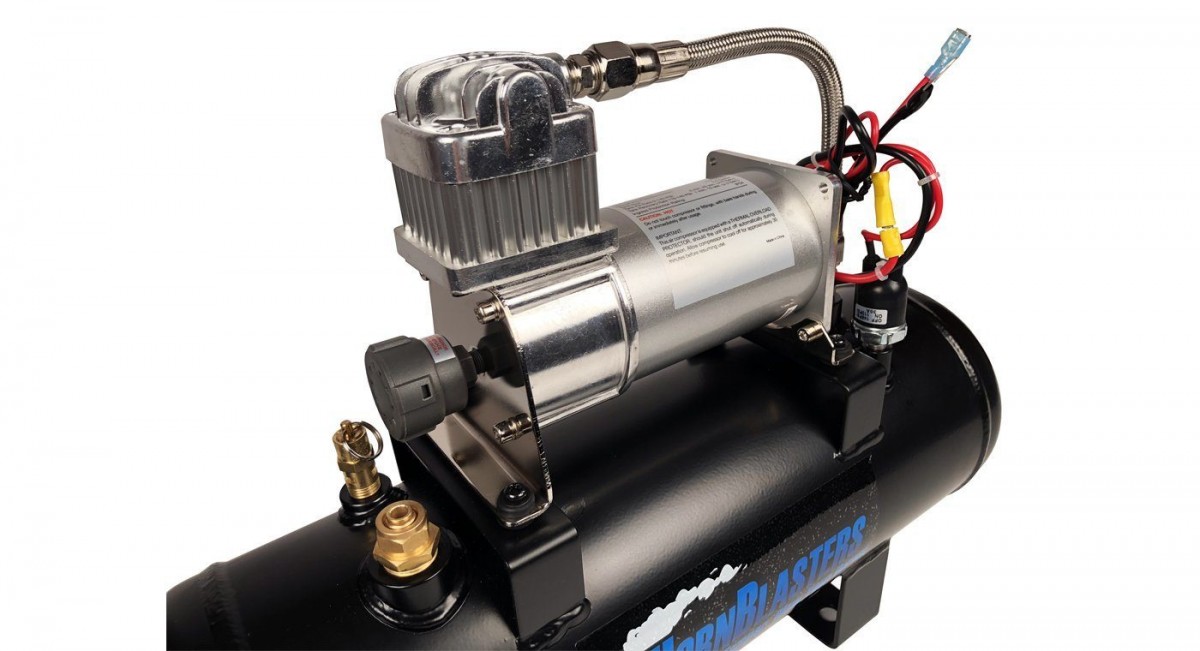

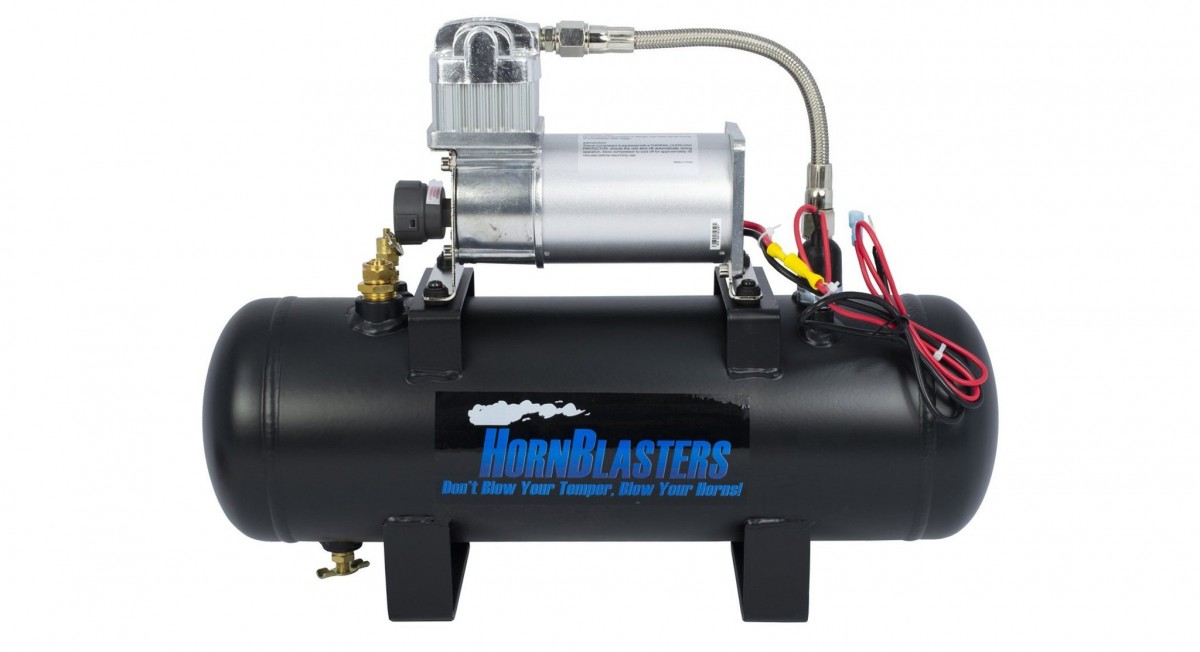

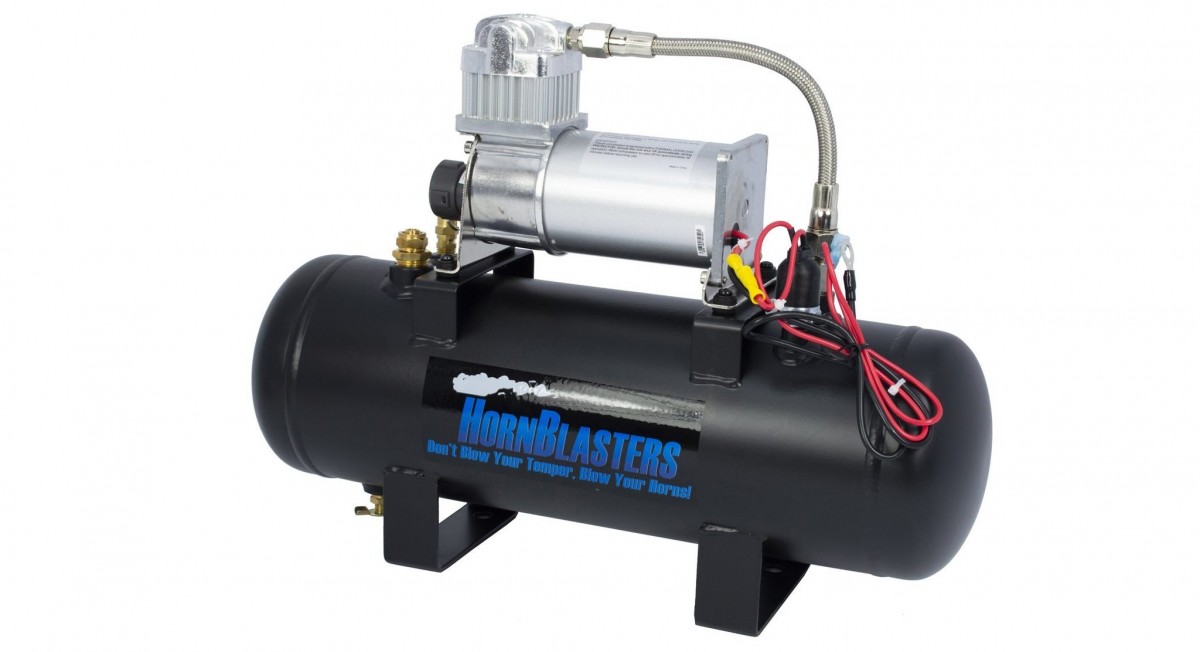

Our 145 PSI 2-Gallon Air Source Unit includes the powerful Viair 280C Air Compressor mounted directly to the tank. This speedy little compressor features a 30% duty cycle and an incredibly fast recharge time, able to fill the tank from 110-145 PSI is just over a minute! With our 145 PSI 2-Gallon Air Source Unit you get plenty of air for your horns, with the 2-gallon tank providing up to 5 seconds of blast time with most of our air horns and even some train horns!

Designed with the beginner in mind, our 145 PSI 2-Gallon Air Source Unit comes pre-wired and pre-plummed, making the 145 PSI 2-Gallon Air Source Unit one of the easiest air-source units to install. All you need to do for installation is connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting and that's it! If you are wanting to get some horns on your ride without having to spend hours installing a complicated onboard air system, this is the kit for you!

The HornBlasters 228H Air Source Unit is featured in the Horn Kits listed below:

Conductor's Special 228H Outlaw Black 228H
Outlaw Chrome 228H Rocker 228H
Katrina 228H Admiral 228H
Bullet 228H Jackass 228H
Psychoblaster 228H Dolphin 228H
Tug 228H Bandit 228H
Safety 228H

(Note: Tank mounted air compressors are not fully sealed.  For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc...)

PSI CFM A BAR LPM A
0 1.59 10 0 45.0 10
10 1.49 12 1.0 40.2 13
20 1.33 13 2.0 32.1 14
30 1.11 14 3.0 29.0 15
40 1.04 15 4.0 26.4 16
50 0.99 15 5.0 24.2 16
60 0.92 16 6.0 22.0 17
70 0.87 16 7.0 21.0 19
80 0.81 17 8.0 19.4 18
90 0.76 17 9.0 17.5 17
100 0.74 19 10.0 15.3 17
110 0.71 19
120 0.67 18
130 0.62 17
140 0.57 17
150 0.51 17

* Supply Voltage: 13.8 Volts

FILL RATES

2.0 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 40 sec.(± 10 sec.)
110 to 145 PSI 1 min. 15 sec. (± 05 sec.)

 * Supply Voltage: 13.8 Volts

  • Pre-Installed Pressure Switch
  • 1/4" NPT 175 PSI Safety Blow-Off
  • 1/4" Drain Cock
  • 1/2" NPT Compression Fitting
  • Insulated Wiring with Connectors
  • Installation Instructions

  • HornBlasters 280c Air Compressor
  • 2 Gallon Viair Air Tank
  • 110/145 PSI Pressure Switch
  • 145 PSI Safety Valve & Drain Cock
  • 1/2" Compression Fitting

  • Part Number: MC-228H
  • Manufacturer: HornBlasters
  • Model: 228H
  • Air Source Kit
  • Operating Pressure: 145 PSI
  • Length: 19.0″ (482.6 mm)
  • Width: 6.0″ (152.4 mm)
  • Height: 13.75″ (349.25 mm)
  • Air Source Tank
  • Volume: 2.0 gal (8.8 L)
  • 1/4" NPT Ports: 5
  • Length: 19″ (482.6 mm)
  • Width: 6″ (152.4 mm)
  • Height: 7.4″ (187.96 mm)
  • Weight: 10.5 lb (4.76 Kg)
  • Air Source Compressor: HornBlasters 280c
  • Voltage: 12 Volts
  • Max Amperage: 16 Amps
  • Max Output: 1.31 CFM
  • Maximum Duty Cycle: 30% @ 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Length: 7.8″ (198.12 mm)
  • Width: 3.95″ (100.33 mm)
  • Height: 6.35″ (161.29 mm)
  • Weight: 5.1 lb (2.31 Kg)
