Our budget and beginner-friendly all-in-one air source solution! Our 120 PSI 1.5 Gallon Air Source Kit gives you everything you need to bring onboard air to your ride in a compact and easy to install an air source unit that is pre-wired and pre-plummed for your convenience. Our 120 PSI 1.5 Gallon Air Source Kit pairs amazingly with our train horns and air horns, giving you a quick and easy way to power your horns while taking it easy on your wallet.

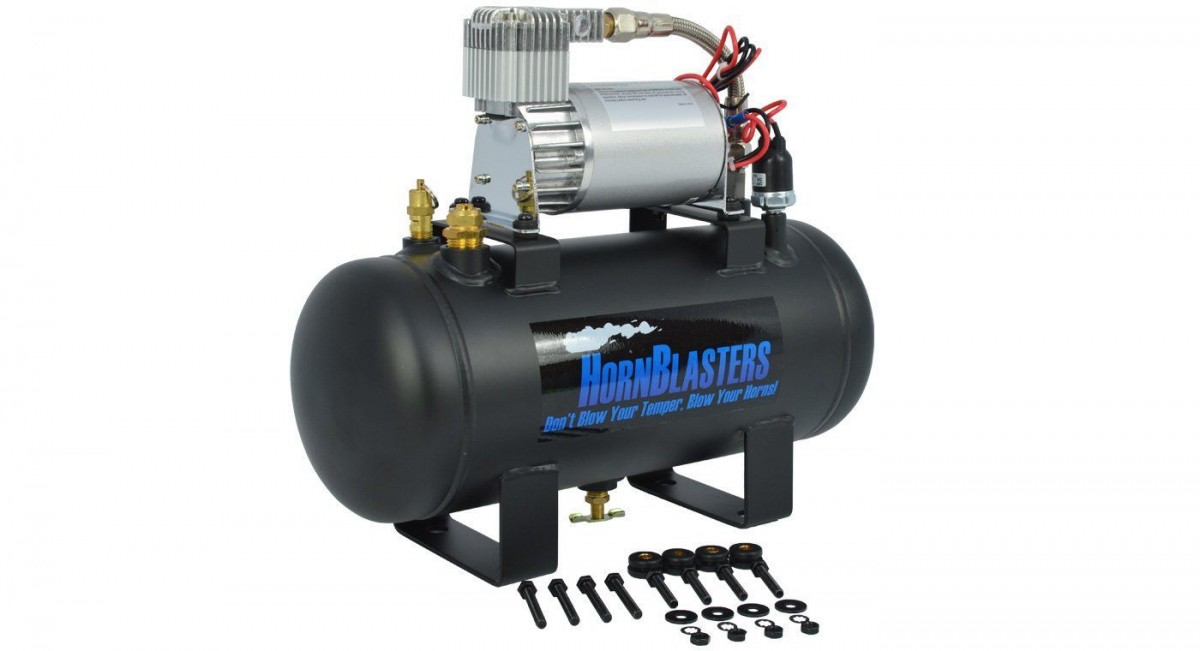

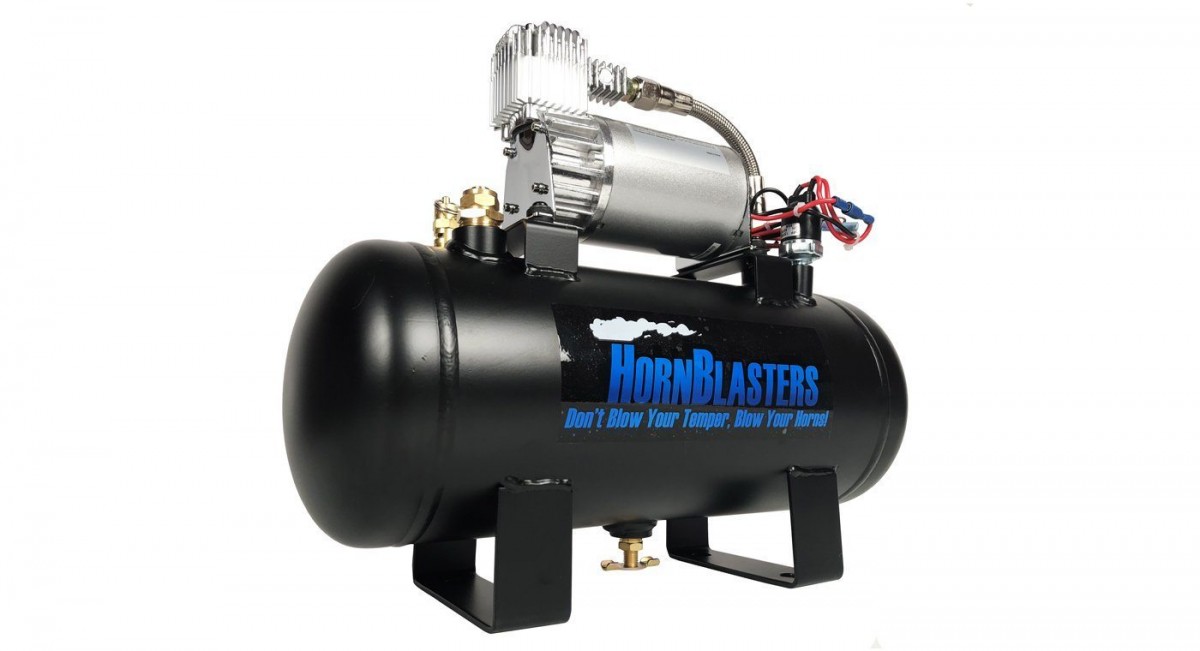

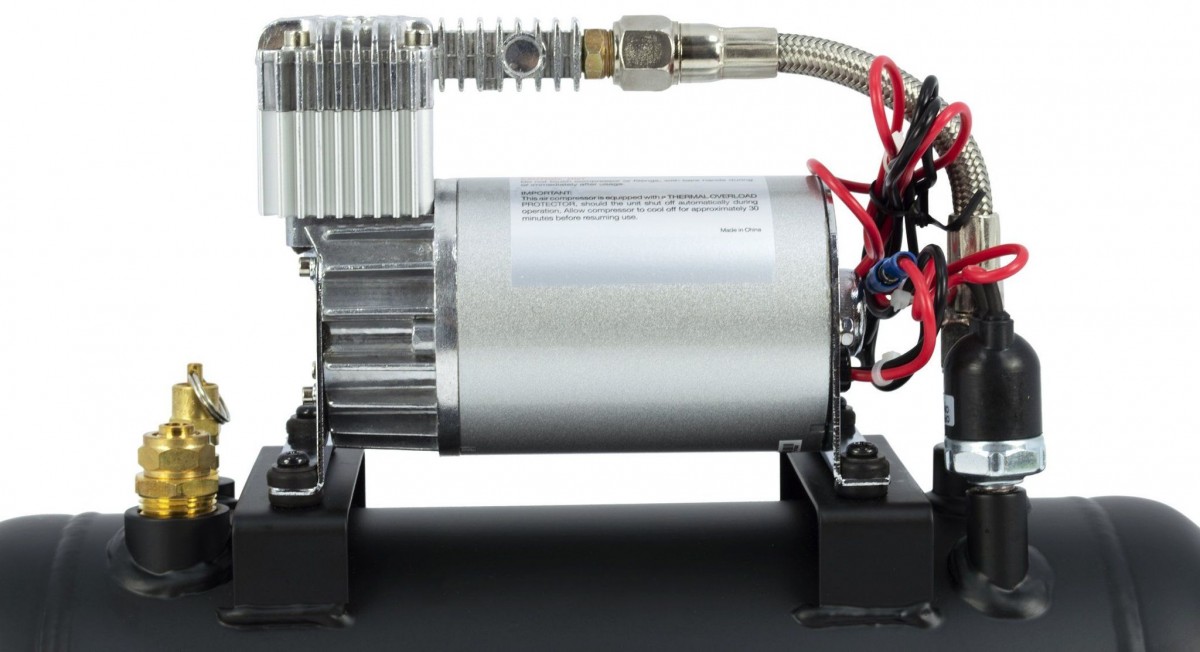

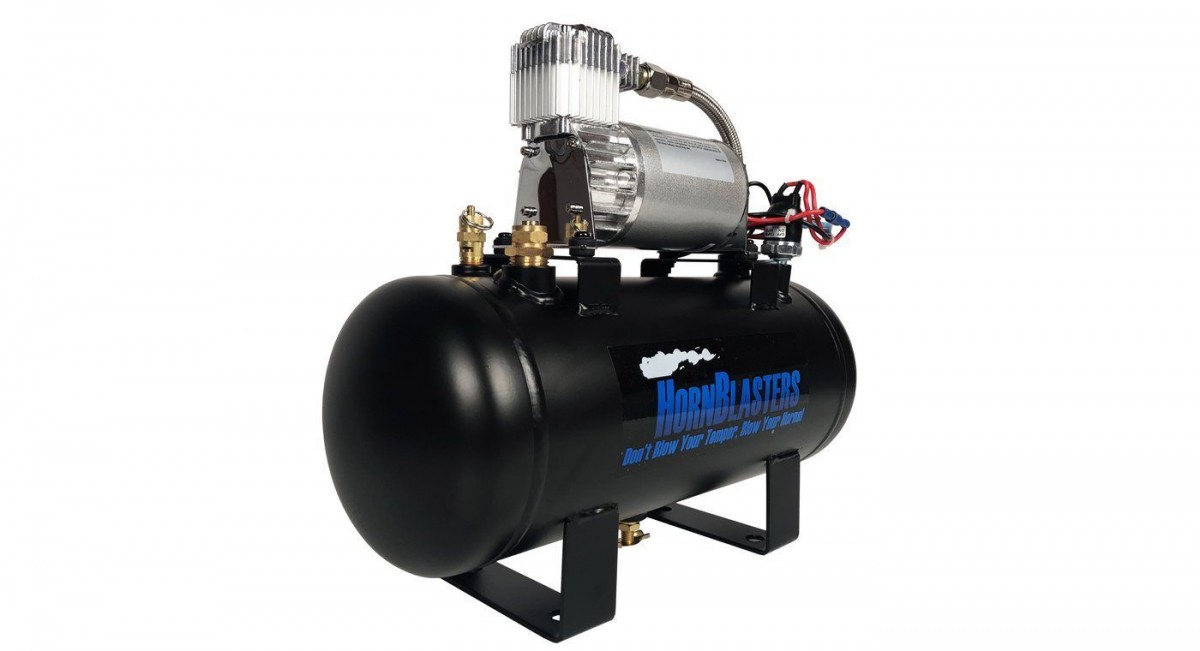

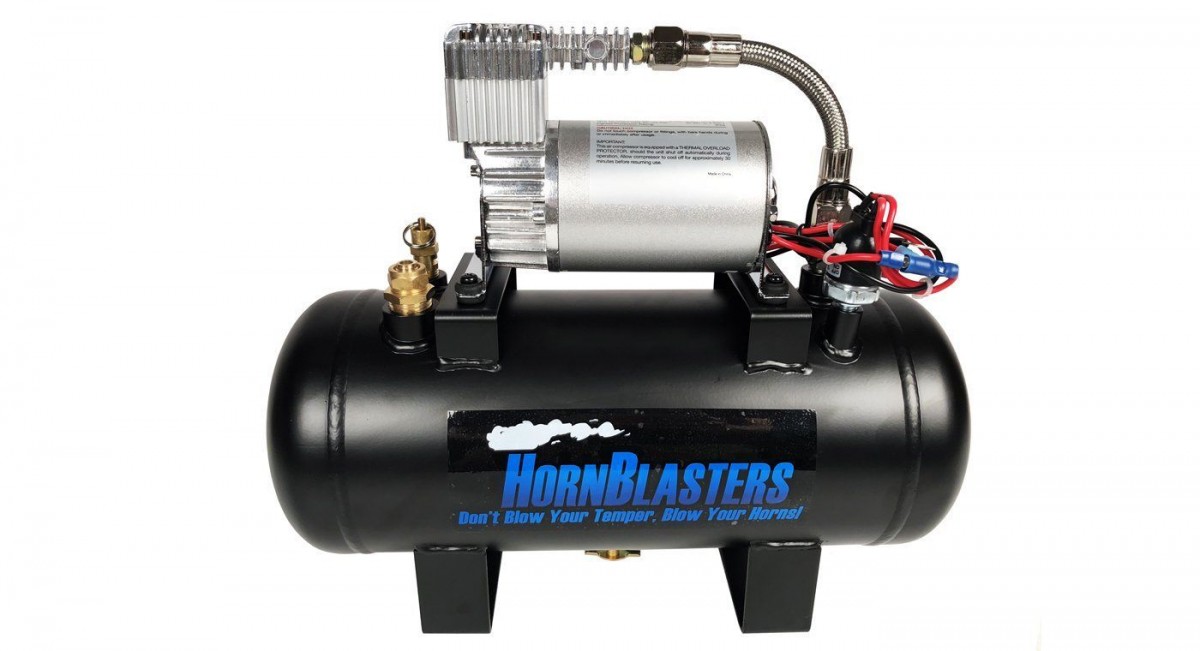

We outfitted our 120 PSI 1.5 Gallon Air Source Kit with a powerful Viair 275C Air Compressor mounted directly to the tank. Our 120 PSI 1.5 Gallon Air Source Kit is one of the fastest air-source units that we carry, recharging the 1.5-gallon tank from 90-120 PSI in only 35 seconds! Additionally, our 120 PSI 1.5 Gallon Air Source Kit has a 25% duty cycle, giving you extra reliability in case of emergencies.
That best feature about our 120 PSI 1.5 Gallon Air Source Kit is the ease of installation. With our 120 PSI 1.5 Gallon Air Source Kit already pre-wired and pre-plumbed, all you need to do is connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting and you are all ready to get out and honking! If you just want to get your horn an air supply without getting a complicated onboard air system, this is the perfect kit for you!
This Air Source Unit is featured in these Horn Kits:
**Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc**
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher model kits. **
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.03 | 10 | 0 | 57.5 | 10 |
| 10 | 1.17 | 12 | 1.0 | 32.0 | 13 |
| 20 | 1.11 | 13 | 2.0 | 30.0 | 14 |
| 30 | 1.04 | 15 | 3.0 | 28.5 | 16 |
| 40 | 1.01 | 15 | 4.0 | 26.5 | 16 |
| 50 | 0.97 | 16 | 5.0 | 24.5 | 17 |
| 60 | 0.92 | 16 | 6.0 | 22.5 | 17 |
| 70 | 0.88 | 17 | 7.0 | 21.5 | 18 |
| 80 | 0.83 | 17 | 8.0 | 20.0 | 18 |
| 90 | 0.79 | 17 | 9.0 | 18.5 | 18 |
| 100 | 0.76 | 18 | 10 | 17.0 | 17 |
| 110 | 0.72 | 18 | |||
| 120 | 0.67 | 18 |
* Supply Voltage: 13.8 Volts
| 1.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 120 PSI | 2 min. 10 sec. (±10 Sec.) |
| 90 to 120 PSI | 35 sec. (± 5 Sec.) |
* Supply Voltage: 13.8 Volts
