1/4″ DUAL TANK ELECTRIC DRAIN VALVE KIT AM-D04KD

Return to Shopping

Product Description

2 TANKS 1 VALVE.

Our 1/4" electric drain valve kit gives you the ability to drain all the moisture and air out of your dual tank system with a simple push of a button! As part of required maintenance for all onboard air systems, draining your tank is on a regular basis is needed to keep moisture out of your tank and more importantly out of your electrical components. Usually, this would involve crawling under your vehicle and manually turning your drain cock on your tank. Now, you can simply activate the included push-button from the comfort of the cab of your vehicle and your tank drains automatically. Our 1/4" electric drain valve kit is designed to fit air tanks with a 1/4" port on the bottom.

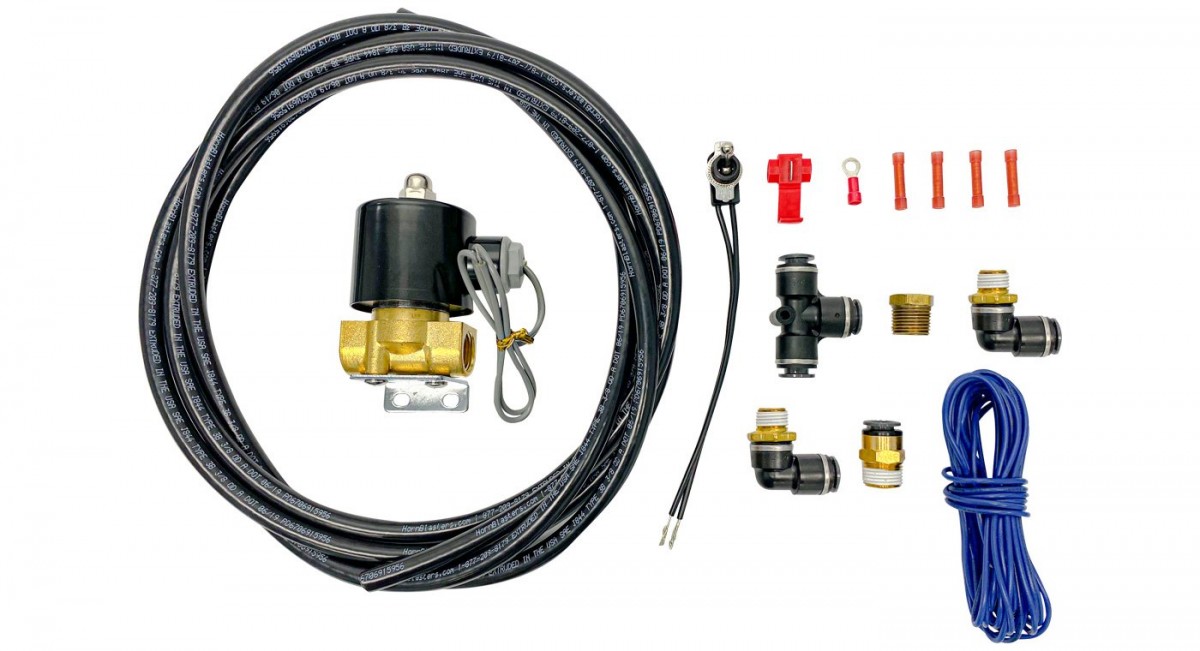

Our 1/4" electric drain valve kit includes our 3/8" brass electric air valve, 10ft of 3/8" DOT air line, two 1/4" NPT to 3/8" DOT push-to-connect elbows, one 3/8" NPT to 3/8" DOT push to connect fitting, one 3/8" to 1/4" reducer bushing, 20ft of 18 gauge wire and electrical terminals. Selecting the dual tank option also provides you with the 3/8" tee and fittings needed to plumb both tanks to one valve.

  • Easy to install, easy to use
  • All fittings & wiring parts included
  • Efficiently drains your air tank

  • HornBlasters 3/8" brass electric air valve
  • 10ft 3/8" DOT Air Line
  • Two 1/4" NPT to 3/8" DOT push to connect fitting Elbows
  • 3/8" NPT to 3/8" DOT push to connect fitting
  • 1/4" PTC union tee
  • 3/8" to 1/4" reducer bushing
  • 20ft 18ga wire
  • Electrical terminals

  • Part Number: AM-D04KD
  • Valve: 3/8" shocker valve
  • Port Size: 3/8"
  • Orifice Size: 4mm
  • Flow Rate: 5.5 Cv
  • Max Working Pressure: 210 PSI
  • Minimum Operating Differential: 3 PSI
  • Voltage: 12 Volts DC
  • Air Line: 3/8" DOT line
  • Outer Diameter: 3/8"
  • Specification: SAE J844 type b
