1/2″ ELECTRIC DRAIN VALVE KIT AM-D08K-E

Return to Shopping

Product Description

No one wants to have to crawl under their vehicle on a regular basis to manually drain their air tank. With our 1/2" Electric Drain Valve Kit, you never have to leave to comfort of your vehicle to drain your tank again. Draining your tank on a regular basis is by far the most important upkeep you have to do to maintain the longevity of your onboard air system. This prevents moisture build-up in your tank and more importantly, keeps moisture from getting into your electrical components. You have to do it anyway, so why not make it fun? Normally, you would have to manually loosen the drain cock from the tank. In a lot of cases, this involves getting underneath the vehicle. Now, with a simple push of a button, completely drain your tank with a powerful blast. Our 1/2" Electric Drain Valve Kit is designed to fit air tanks with a 1/2" port on the bottom.

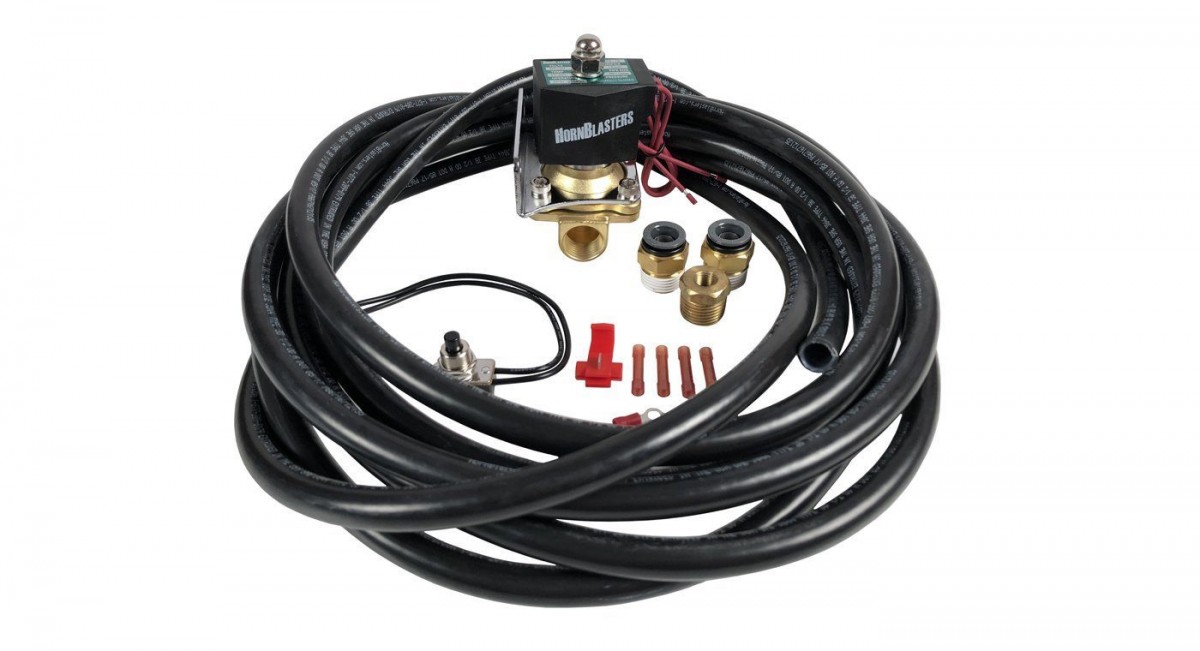

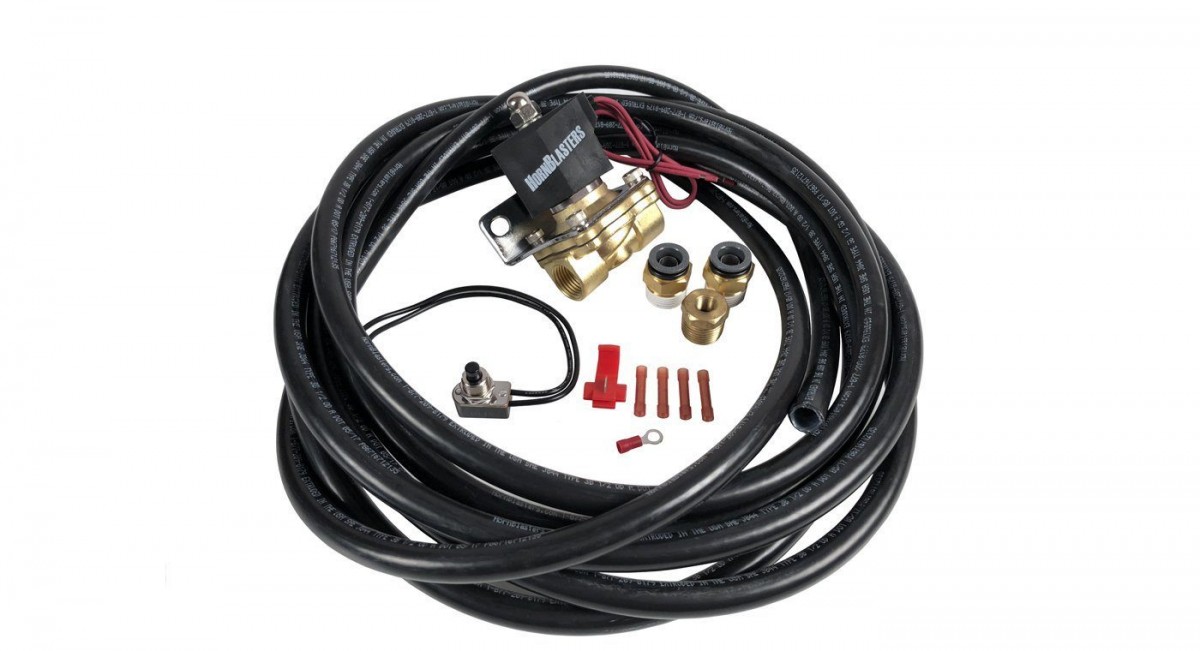

Our 1/2" Electric Drain Valve Kit includes our 1/2" Brass Electric Air Valve, 10ft of 1/2" DOT Air Line, one 1/4" NPT to 3/8" DOT Push-To-Connect Fitting, one 3/8" NPT to 3/8" DOT Push To Connect Fitting, two 1/2" DOT Push To Connect Fittings, one 1/2" to 1/8" Reducer Bushing, 20ft of 18 gauge wire and electrical terminals.


Part AM-D08K-E - Elbow Fitting


  • Easy To Install, Easy To Use
  • All Fittings & Wiring Parts Included
  • Efficiently Drains Your Air Tank

  • Part Number: AM-D08K
  • Valve: 1/2" Shocker Valve
  • Port Size: 1/2"
  • Orifice Size: 16mm
  • Flow Rate: 5.5 Cv
  • Max Working Pressure: 210 PSI
  • Minimum Operating Differential: 3 PSI
  • Voltage: 12 Volts DC
  • Air Line: 1/2" DOT Line
  • Outer Diameter: 1/2"
  • Specification: SAE J844 Type B
